1dtm

CRYSTAL STRUCTURE OF THE SPERM-WHALE MYOGLOBIN MUTANT H93G COMPLEXED WITH 4-METHYLIMIDAZOLE, METAQUO FORM

Method: X-RAY DIFFRACTION D_max: 50.5 Å Quality: GOOD

SAXS Profile

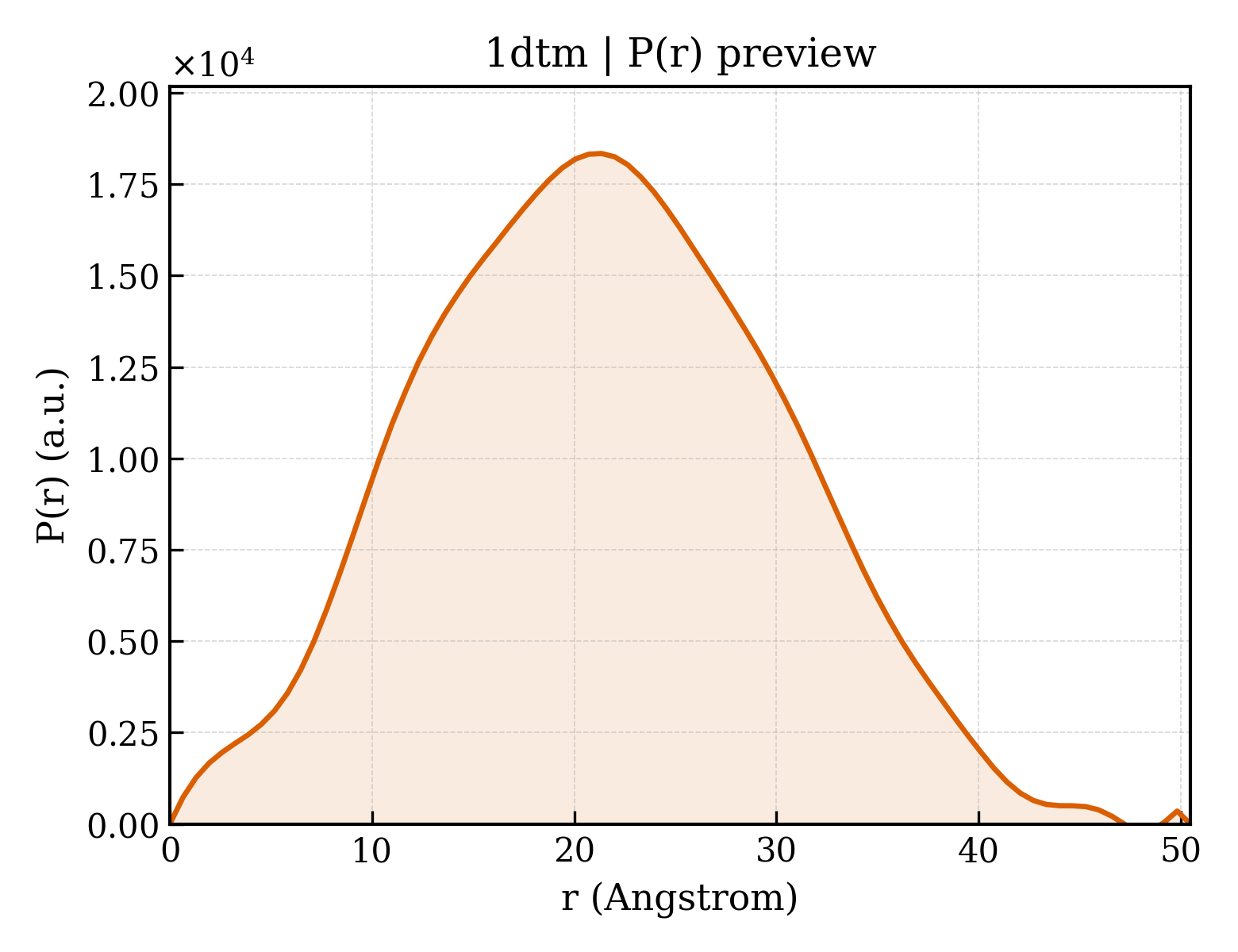

P(r) Distribution

▼

1. Structure Basics

entry_id	1dtm
deposition_date	2000-01-12
title	CRYSTAL STRUCTURE OF THE SPERM-WHALE MYOGLOBIN MUTANT H93G COMPLEXED WITH 4-METHYLIMIDAZOLE, METAQUO FORM
keywords	Heme protein, Myoglobin, ligand-substitution, OXYGEN STORAGE-TRANSPORT COMPLEX; OXYGEN STORAGE/TRANSPORT
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	16.43 Å
rg_electron	15.03 Å
i0	5230670.00
molecular_weight	17296.0 kDa
excluded_volume	21982 Å³
envelope_volume	24146 Å³
shell_volume	13687 Å³
envelope_diameter	51.5 Å
shell_rg	20.79 Å
envelope_rg	15.23 Å
shape_rg	15.02 Å
total_rg	16.17 Å
total_atoms	1225
n_residues	152
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	50.5 Å
rg_real	16.31 Å
rg_real_error	0.28 Å
i0_real	5.2310e+06
i0_real_error	6.1370e+04
rg_reciprocal	16.33 Å
i0_reciprocal	5231000.0000
total_estimate	0.8194
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	21.4 Å
skewness	0.099
kurtosis	-0.434
angular_range	— – 0.4850 Å⁻¹
current_alpha	0.0000
highest_alpha	744800.0000
n_real_points	79
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.894; Stabil: 0.993; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	RECOMBINANT SPERM WHALE MYOGLOBIN VARIANT H93G
formula_weight	17153.9 kDa
mutation	H93G
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1240

VLSEGEWQLVLHVWAKVEADVAGHGQDILIRLFKSHPETLEKFDRFKHLKTEAEMKASEDLKKHGVTVLTALGAILKKKGHHEAELKPLAQSGATKHKIPIKYLEFISEAIIHVLHSRHPGDFGADAQGAMNKALELFRKDIAAKYKELGYQG

Source

organism	Physeter catodon
common_name	sperm whale
ncbi_taxonomy_id	9755
host_organism	Escherichia coli

Entity 2 non-polymer

description	PROTOPORPHYRIN IX CONTAINING FE
formula_weight	616.5 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	4-METHYLIMIDAZOLE
formula_weight	82.1 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	15

▶

6. Citations (2)

▶

length_a	40.276 Å
length_b	48.892 Å
length_c	78.935 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	2.130 Å
resolution_low	20.000 Å
r_factor	0.1750
r_work	—
r_free	—
