1duk
WILD-TYPE RECOMBINANT SPERM WHALE METAQUOMYOGLOBIN
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1duk |
| deposition_date | 2000-01-17 |
| title | WILD-TYPE RECOMBINANT SPERM WHALE METAQUOMYOGLOBIN |
| keywords | Oxygen-storage protein, myoglobin, heme protein, OXYGEN STORAGE-TRANSPORT COMPLEX; OXYGEN STORAGE/TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.52 Å |
| rg_electron | 15.13 Å |
| i0 | 5470900.00 |
| molecular_weight | 17744.0 kDa |
| excluded_volume | 22564 ų |
| envelope_volume | 24677 ų |
| shell_volume | 13871 ų |
| envelope_diameter | 51.2 Å |
| shell_rg | 20.93 Å |
| envelope_rg | 15.30 Å |
| shape_rg | 15.11 Å |
| total_rg | 16.28 Å |
| total_atoms | 1255 |
| n_residues | 152 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

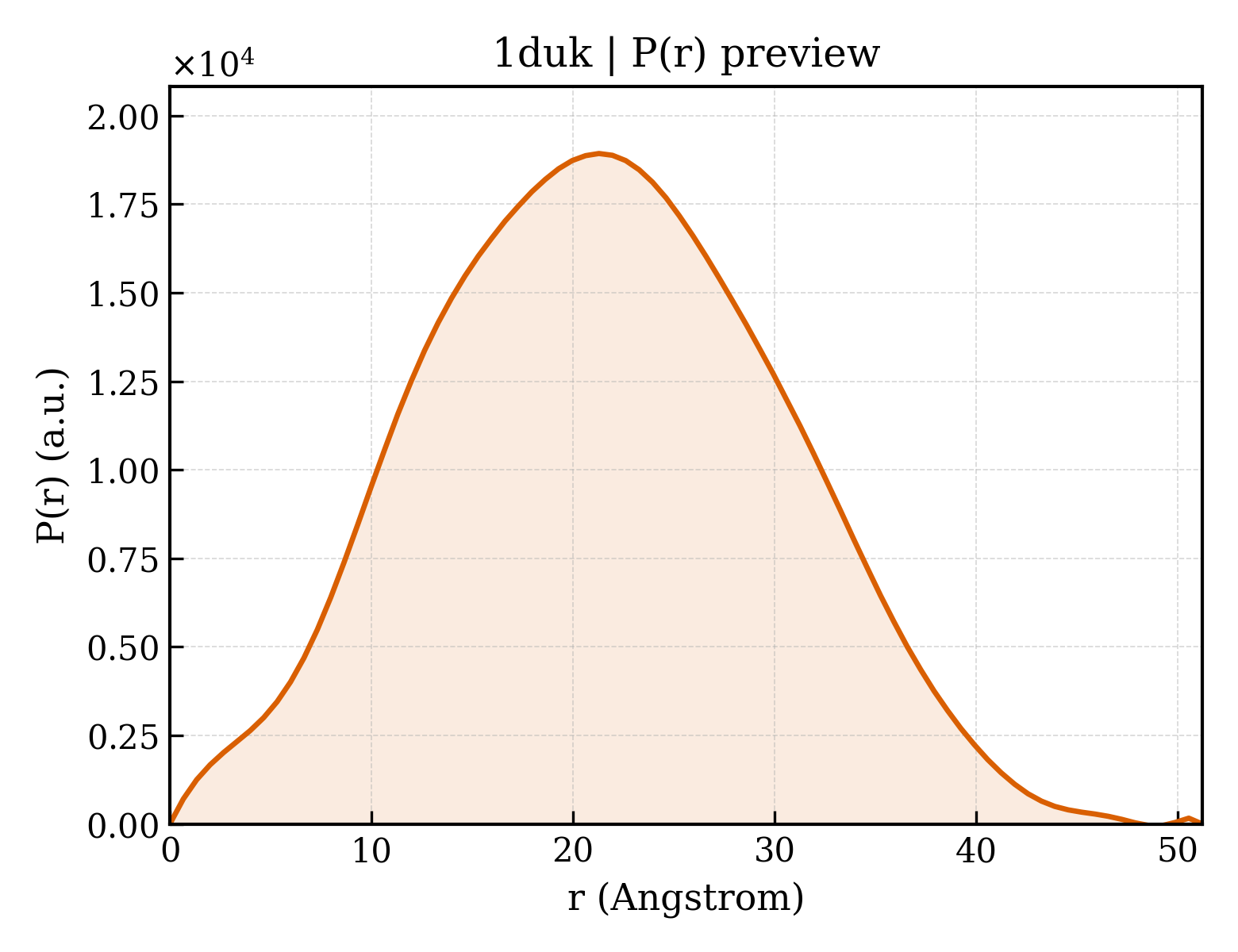

3. P(r) Analysis (GNOM)
| dmax | 51.2 Å |
| rg_real | 16.39 Å |
| rg_real_error | 0.24 Å |
| i0_real | 5.4710e+06 |
| i0_real_error | 5.3910e+04 |
| rg_reciprocal | 16.41 Å |
| i0_reciprocal | 5471000.0000 |
| total_estimate | 0.8224 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.3 Å |
| skewness | 0.092 |
| kurtosis | -0.445 |
| angular_range | — – 0.4800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 771700.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.901; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.000 |
