EIAV DUTPASE NATIVE

Method: X-RAY DIFFRACTION D_max: 66.8 Å Quality: GOOD

SAXS Profile

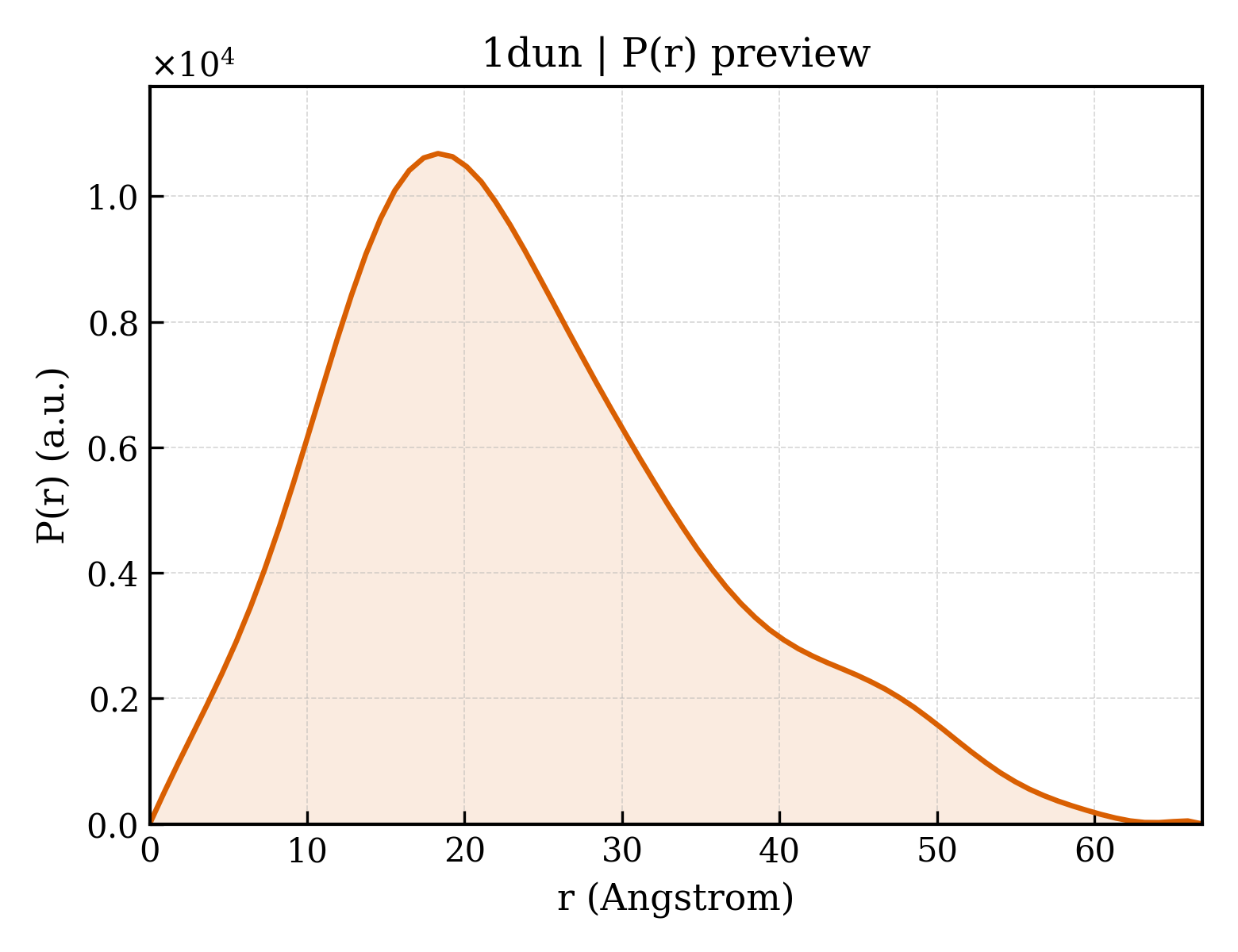

P(r) Distribution

▼

1. Structure Basics

entry_id	1dun
deposition_date	1997-11-27
title	EIAV DUTPASE NATIVE
keywords	HYDROLASE, DUTPASE, EIAV, TRIMERIC ENZYME, ASPARTYL PROTEASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	18.56 Å
rg_electron	17.45 Å
i0	3536740.00
molecular_weight	13325.0 kDa
excluded_volume	16797 Å³
envelope_volume	22171 Å³
shell_volume	11892 Å³
envelope_diameter	66.3 Å
shell_rg	21.86 Å
envelope_rg	18.64 Å
shape_rg	17.46 Å
total_rg	18.34 Å
total_atoms	936
n_residues	120
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	66.8 Å
rg_real	18.77 Å
rg_real_error	0.49 Å
i0_real	3.5370e+06
i0_real_error	4.7900e+04
rg_reciprocal	18.73 Å
i0_reciprocal	3537000.0000
total_estimate	0.8053
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	18.3 Å
skewness	0.631
kurtosis	-0.035
angular_range	— – 0.4300 Å⁻¹
current_alpha	0.0000
highest_alpha	544500.0000
n_real_points	74
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.599; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.691; Smooth: 0.978

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	86.270 Å
length_b	86.270 Å
length_c	95.240 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	18

space_group	H 3 2
int_tables_number	155
crystal_system	—

resolution	1.900 Å
resolution_low	20.000 Å
r_factor	0.1590
r_work	0.1610
r_free	0.2150

description	;DEOXYURIDINE 5'-TRIPHOSPHATE NUCLEOTIDOHYDROLASE ;
formula_weight	14784.8 kDa
ec_number	3.6.1.23
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	1076

EIAV DUTPASE NATIVE

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Equine infectious anemia virus
ncbi_taxonomy_id	11665
host_organism	Escherichia coli

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	133

fit	/app/data/saxs_computation/du/1dun/1dun.fit
pddf	/app/data/pr_computation/du/1dun/1dun.pr.out
profile	/app/data/saxs_computation/du/1dun/1dun.dat
