SAXSdb — 1duw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NONAHEME CYTOCHROME C

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	HEME C × 9 GLYCEROL × 1 water × 1	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	HEME C × 18 GLYCEROL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9XCU0_DESDE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–292； UniProt 32–323

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1duw
Deposition date deposition_date	2000-01-19
Structure title title	STRUCTURE OF NONAHEME CYTOCHROME C
Keywords keywords	heme, electron transport, cytochrome c, hydrogenase, hmc operon; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1duw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1duw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

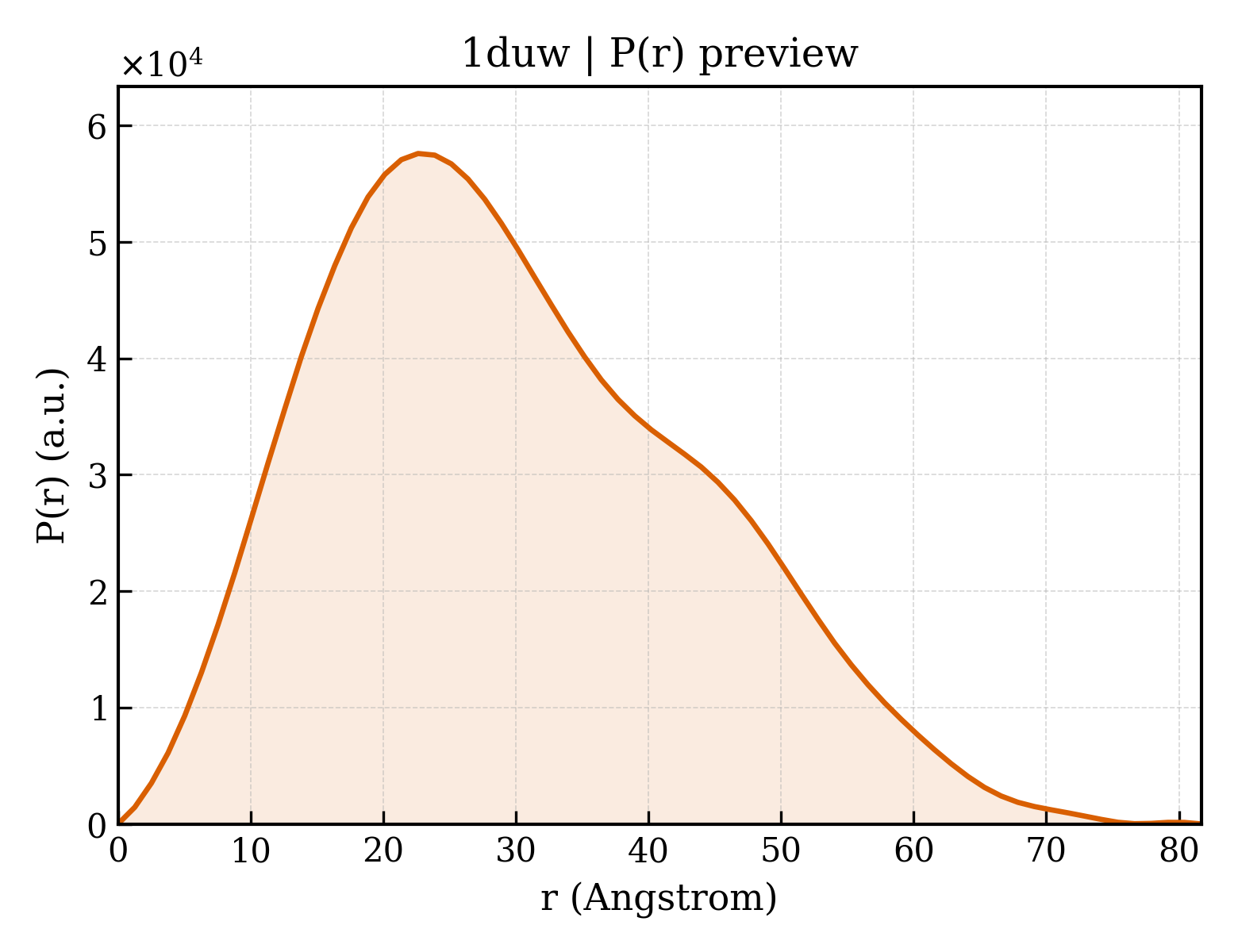

1duw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.18 Å
Rg (electron density)	22.75 Å
Total Rg	23.46 Å
Atom count	2578
Residues	289
Excluded volume	45767 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1duw__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1duw__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	NONAHEME CYTOCHROME C
Molecular weight formula_weight	31727.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3004

AALEPTDSGAPSAIVMFPVSAKPNPKGAAMKPAVFNHLAHEKKIANCETCHHTGDPVACSTCHTTEGKAEGNFVTLDRAMHATNIAKRAKGNTPVSCVSCHEQQTKERRECAGCHAIVTPKRDQAWCATCHNVTSSMTPEQMQQGIKGKLPPDQNEALAAETVLNHKPVQPLTAMQGPYKVSIDALADKYEPSNFTHRRHMASLMERIKGDKLAEAFHNKPETLCATCHHRSPLSATPPKCGSCHTKEIDPANPNRPNLKAAYHLQCMGCHQGMNVGRPKNTDCTTCHKARP

Entity 2 Entity 2 non-polymer

Description description	HEME C
Molecular weight formula_weight	618.5 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	423

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1duwa_
Class class	a — All alpha proteins
Fold Fold fold	a.138 — Multiheme cytochromes
Superfamily Superfamily superfamily	a.138.1 — Multiheme cytochromes
Family Family family	a.138.1.1 — Cytochrome c3-like

CATH v4.4 (2 domains)

Domain ID domain_id	1duwA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	10 — Cytochrome C3
Homologous superfamily homologous superfamily	10 — Cytochrome C3

Domain ID domain_id	1duwA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	10 — Cytochrome C3
Homologous superfamily homologous superfamily	10 — Cytochrome C3

▶

Unit-cell length a length_a	55.400 Å
Unit-cell length b length_b	55.400 Å
Unit-cell length c length_c	236.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	1.890 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1830
R_work r_work	0.1830
R_free r_free	0.2350
