1dv5
TERTIARY STRUCTURE OF APO-D-ALANYL CARRIER PROTEIN

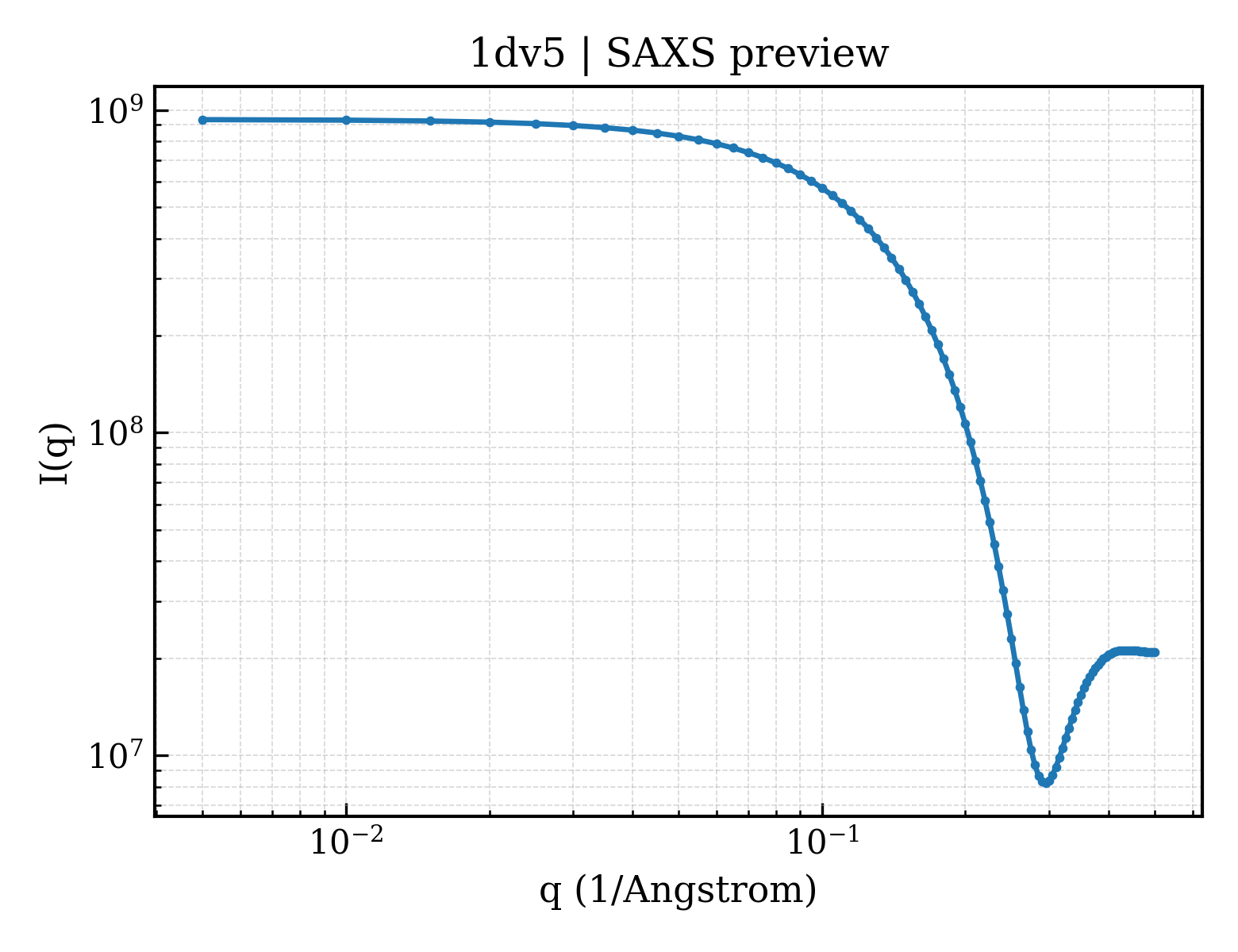

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dv5 |
| deposition_date | 2000-01-19 |
| title | TERTIARY STRUCTURE OF APO-D-ALANYL CARRIER PROTEIN |
| keywords | 3-helix bundle, TRANSPORT PROTEIN; TRANSPORT PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.05 Å |
| rg_electron | 11.50 Å |
| i0 | 935757000.00 |
| molecular_weight | 262880.0 kDa |
| excluded_volume | 330020 ų |
| envelope_volume | 17292 ų |
| shell_volume | 11383 ų |
| envelope_diameter | 42.5 Å |
| shell_rg | 18.75 Å |
| envelope_rg | 13.11 Å |
| shape_rg | 11.47 Å |
| total_rg | 11.69 Å |
| total_atoms | 36930 |
| n_residues | 2400 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

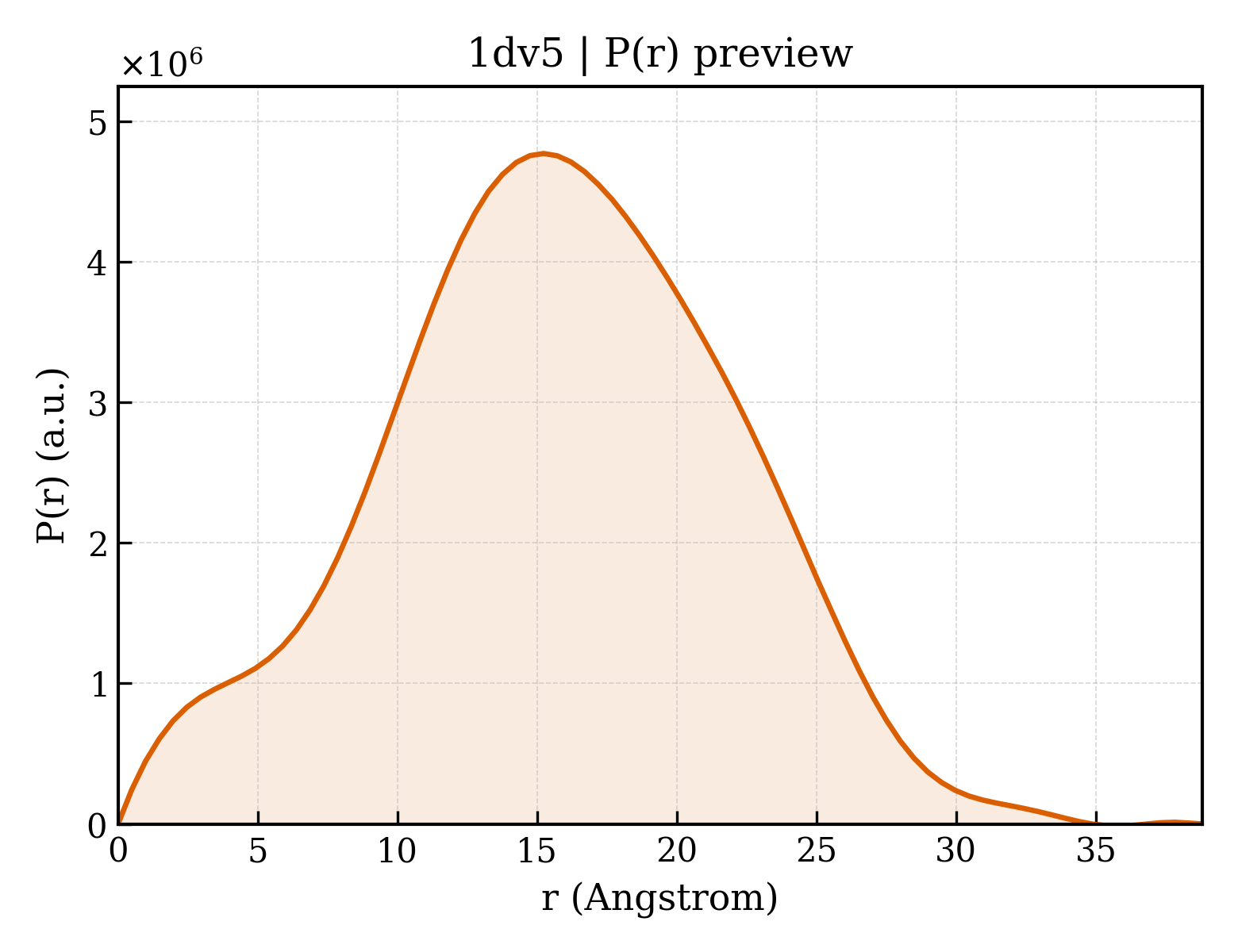

3. P(r) Analysis (GNOM)
| dmax | 38.8 Å |
| rg_real | 11.94 Å |
| rg_real_error | 0.31 Å |
| i0_real | 9.3580e+08 |
| i0_real_error | 9.7670e+06 |
| rg_reciprocal | 11.94 Å |
| i0_reciprocal | 935800000.0000 |
| total_estimate | 0.8498 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.2 Å |
| skewness | -0.058 |
| kurtosis | -0.302 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 178400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.697; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.977 |
