1dv8
CRYSTAL STRUCTURE OF THE CARBOHYDRATE RECOGNITION DOMAIN OF THE H1 SUBUNIT OF THE ASIALOGLYCOPROTEIN RECEPTOR

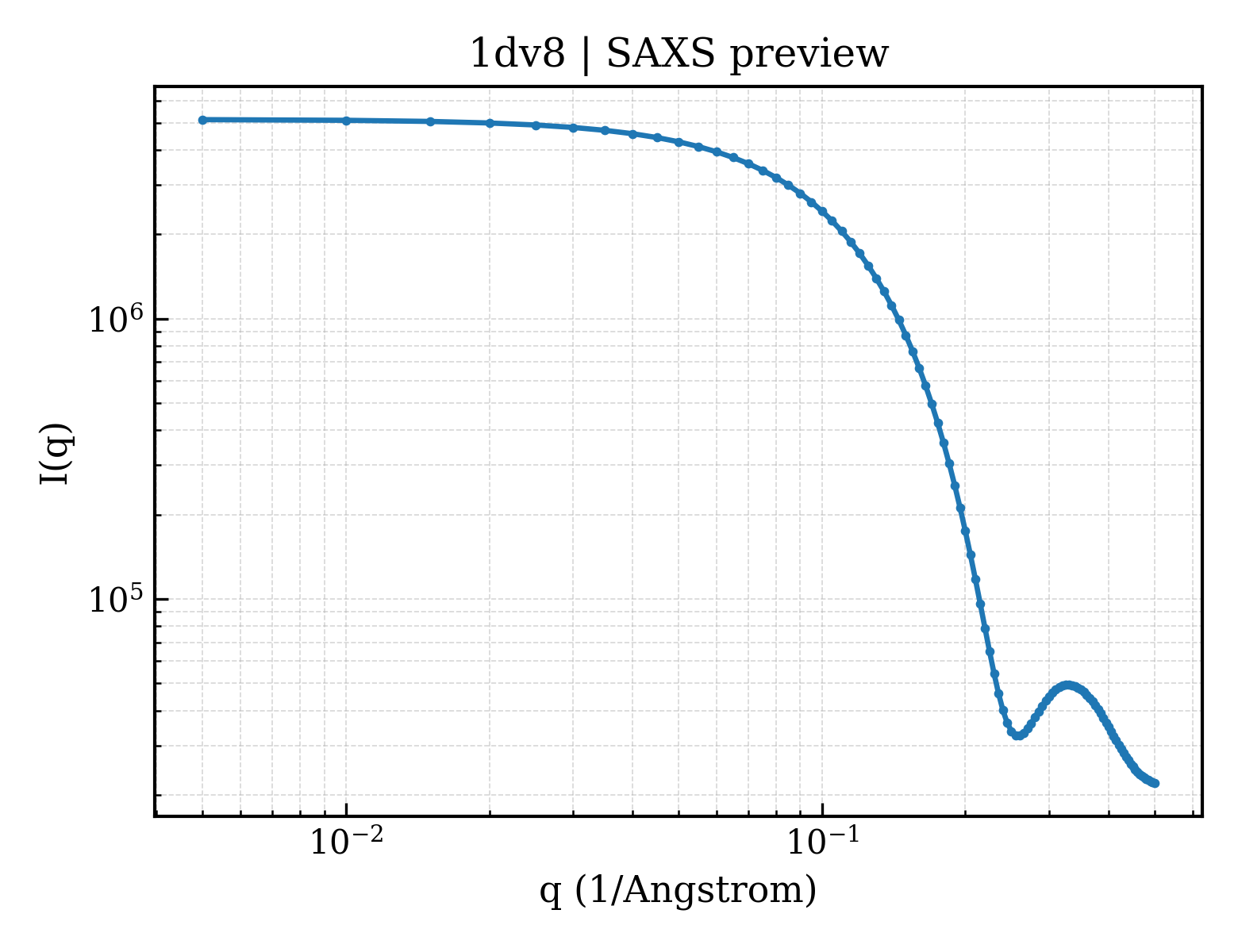

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dv8 |
| deposition_date | 2000-01-20 |
| title | CRYSTAL STRUCTURE OF THE CARBOHYDRATE RECOGNITION DOMAIN OF THE H1 SUBUNIT OF THE ASIALOGLYCOPROTEIN RECEPTOR |
| keywords | C-type lectin CRD, SIGNALING PROTEIN; SIGNALING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.89 Å |
| rg_electron | 13.73 Å |
| i0 | 5137550.00 |
| molecular_weight | 15291.0 kDa |
| excluded_volume | 18542 ų |
| envelope_volume | 19995 ų |
| shell_volume | 12303 ų |
| envelope_diameter | 47.4 Å |
| shell_rg | 19.55 Å |
| envelope_rg | 14.12 Å |
| shape_rg | 13.71 Å |
| total_rg | 14.86 Å |
| total_atoms | 1076 |
| n_residues | 128 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 48.8 Å |
| rg_real | 14.80 Å |
| rg_real_error | 0.22 Å |
| i0_real | 5.1380e+06 |
| i0_real_error | 4.9970e+04 |
| rg_reciprocal | 14.81 Å |
| i0_reciprocal | 5138000.0000 |
| total_estimate | 0.8765 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 48.1 Å |
| skewness | 0.188 |
| kurtosis | -0.253 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1154000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.805; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.975 |
