1dvo
THE X-RAY CRYSTAL STRUCTURE OF FINO, A REPRESSOR OF BACTERIAL CONJUGATION
SAXS Profile

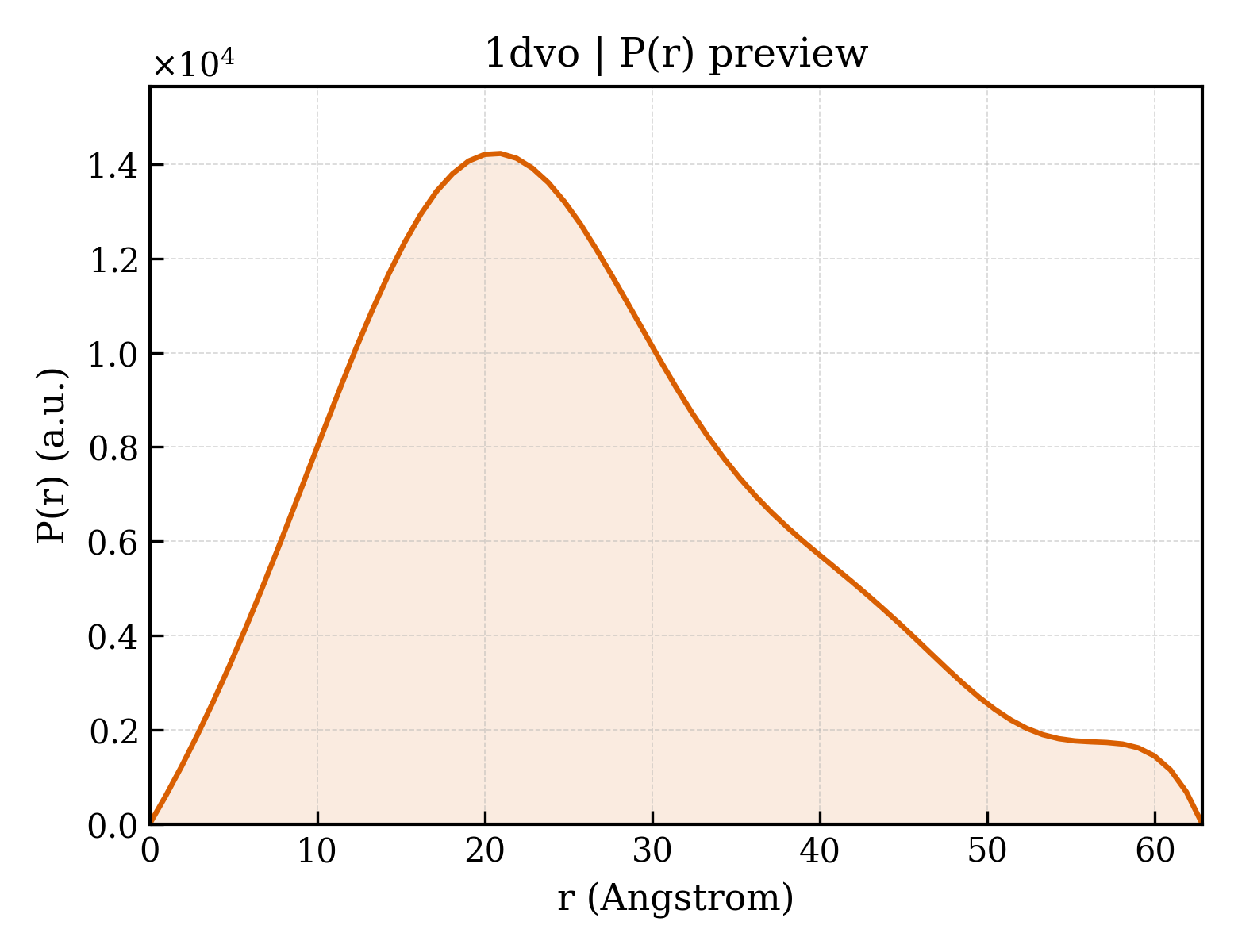

P(r) Distribution
1. Structure Basics
| entry_id | 1dvo |
| deposition_date | 2000-01-21 |
| title | THE X-RAY CRYSTAL STRUCTURE OF FINO, A REPRESSOR OF BACTERIAL CONJUGATION |
| keywords | Repressor, Bacterial Conjugation, TRANSCRIPTION; TRANSCRIPTION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.41 Å |
| rg_electron | 23.56 Å |
| i0 | 5560000.00 |
| molecular_weight | 17351.0 kDa |
| excluded_volume | 21815 ų |
| envelope_volume | 28520 ų |
| shell_volume | 12402 ų |
| envelope_diameter | 90.3 Å |
| shell_rg | 24.70 Å |
| envelope_rg | 25.25 Å |
| shape_rg | 23.57 Å |
| total_rg | 23.72 Å |
| total_atoms | 1219 |
| n_residues | 152 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 62.8 Å |
| rg_real | 20.32 Å |
| rg_real_error | 0.19 Å |
| i0_real | 5.2980e+06 |
| i0_real_error | 5.9230e+04 |
| rg_reciprocal | 22.89 Å |
| i0_reciprocal | 5559000.0000 |
| total_estimate | 0.6595 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 20.9 Å |
| skewness | 0.571 |
| kurtosis | -0.167 |
| angular_range | — – 0.3550 Å−1 |
| current_alpha | 1.3330 |
| highest_alpha | 432600.0000 |
| n_real_points | 67 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.001; Oscil: 0.897; Stabil: 0.993; Sysdev: 0.000; Positv: 1.000; Valcen: 0.931; Smooth: 0.000 |
