1dw5
NMR STRUCTURE OF OMEGA-CONOTOXIN MVIIA: NO CONSTRAINTS ON DISULPHIDE BRIDGES

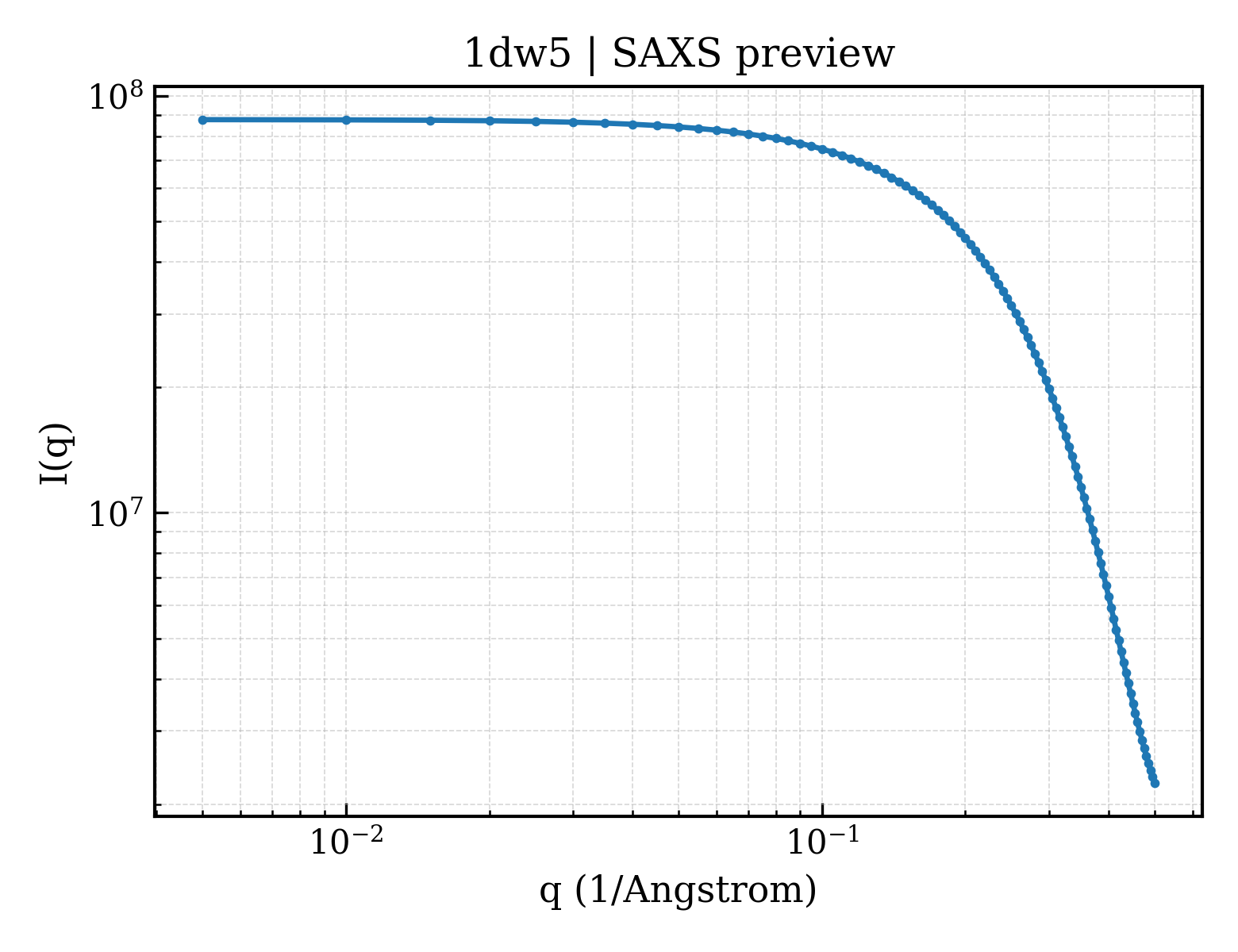

SAXS Profile

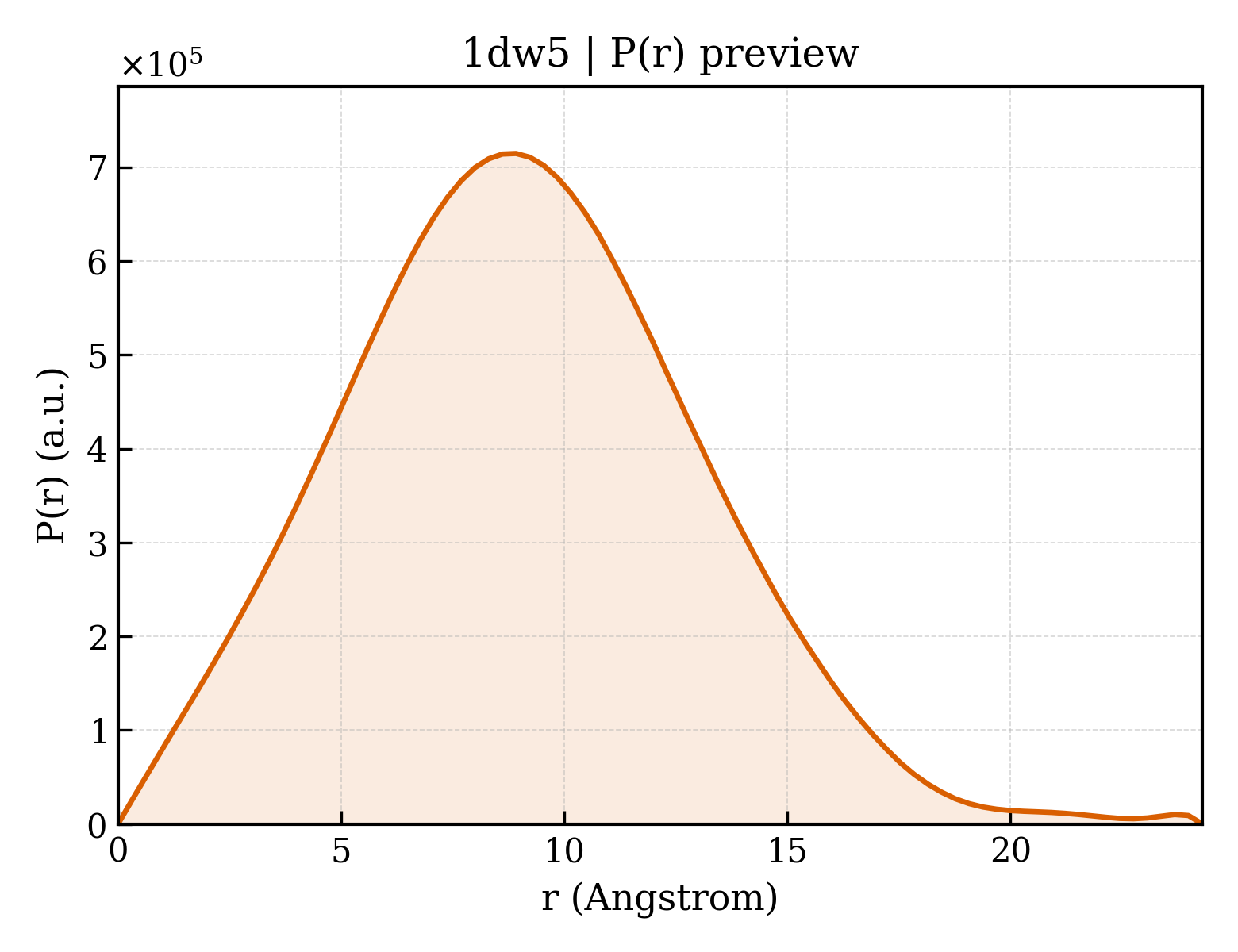

P(r) Distribution
1. Structure Basics
| entry_id | 1dw5 |
| deposition_date | 2000-01-24 |
| title | NMR STRUCTURE OF OMEGA-CONOTOXIN MVIIA: NO CONSTRAINTS ON DISULPHIDE BRIDGES |
| keywords | CONOTOXIN, CALCIUM CHANNEL, CONFORMATIONAL EXCHANGE, TOXIN; TOXIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 6.99 Å |
| rg_electron | 7.53 Å |
| i0 | 87720400.00 |
| molecular_weight | 66256.0 kDa |
| excluded_volume | 78398 ų |
| envelope_volume | 6081 ų |
| shell_volume | 6097 ų |
| envelope_diameter | 27.4 Å |
| shell_rg | 13.89 Å |
| envelope_rg | 9.21 Å |
| shape_rg | 7.49 Å |
| total_rg | 7.83 Å |
| total_atoms | 8875 |
| n_residues | 625 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 24.3 Å |
| rg_real | 6.97 Å |
| rg_real_error | 0.34 Å |
| i0_real | 8.7720e+07 |
| i0_real_error | 8.5990e+05 |
| rg_reciprocal | 6.97 Å |
| i0_reciprocal | 87720000.0000 |
| total_estimate | 0.8614 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 8.9 Å |
| skewness | 0.283 |
| kurtosis | 0.006 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5807.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.760; Stabil: 0.990; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.964 |
