1dwu
Ribosomal protein L1
SAXS Profile

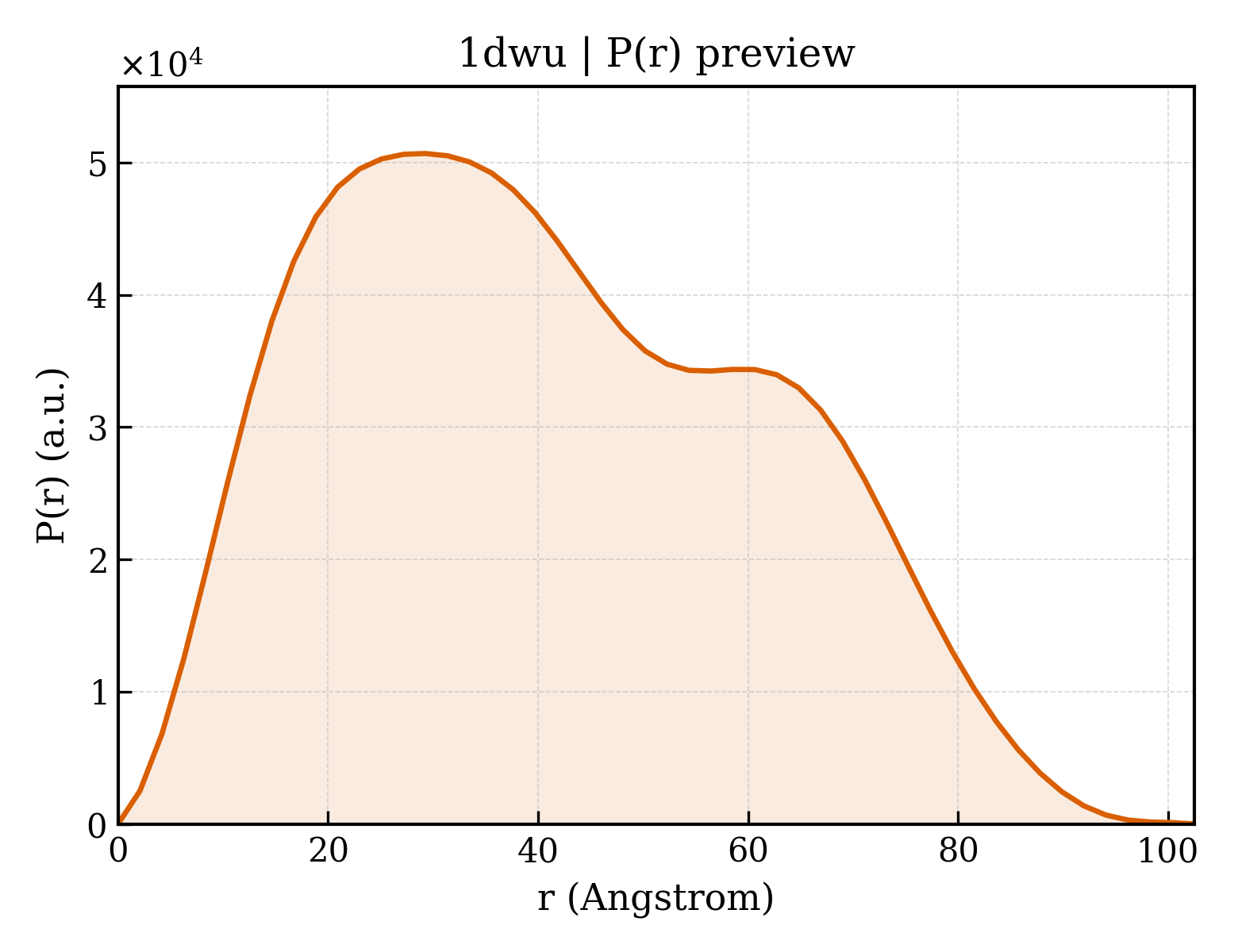

P(r) Distribution
1. Structure Basics
| entry_id | 1dwu |
| deposition_date | 1999-12-13 |
| title | Ribosomal protein L1 |
| keywords | RIBOSOMAL PROTEIN, RNA BINDING, PROTEIN SYNTHESIS; RIBOSOMAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 32.11 Å |
| rg_electron | 31.69 Å |
| i0 | 35372600.00 |
| molecular_weight | 47600.0 kDa |
| excluded_volume | 60291 ų |
| envelope_volume | 84971 ų |
| shell_volume | 23781 ų |
| envelope_diameter | 102.9 Å |
| shell_rg | 36.59 Å |
| envelope_rg | 30.74 Å |
| shape_rg | 31.68 Å |
| total_rg | 32.23 Å |
| total_atoms | 3336 |
| n_residues | 426 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 102.5 Å |
| rg_real | 32.30 Å |
| rg_real_error | 0.78 Å |
| i0_real | 3.5370e+07 |
| i0_real_error | 5.6980e+05 |
| rg_reciprocal | 32.23 Å |
| i0_reciprocal | 35370000.0000 |
| total_estimate | 0.8594 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 29.3 Å |
| skewness | 0.291 |
| kurtosis | -0.827 |
| angular_range | — – 0.2450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2549000.0000 |
| n_real_points | 50 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.872; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.767; Smooth: 0.787 |
