1dwy
Bovine prion protein fragment 121-230

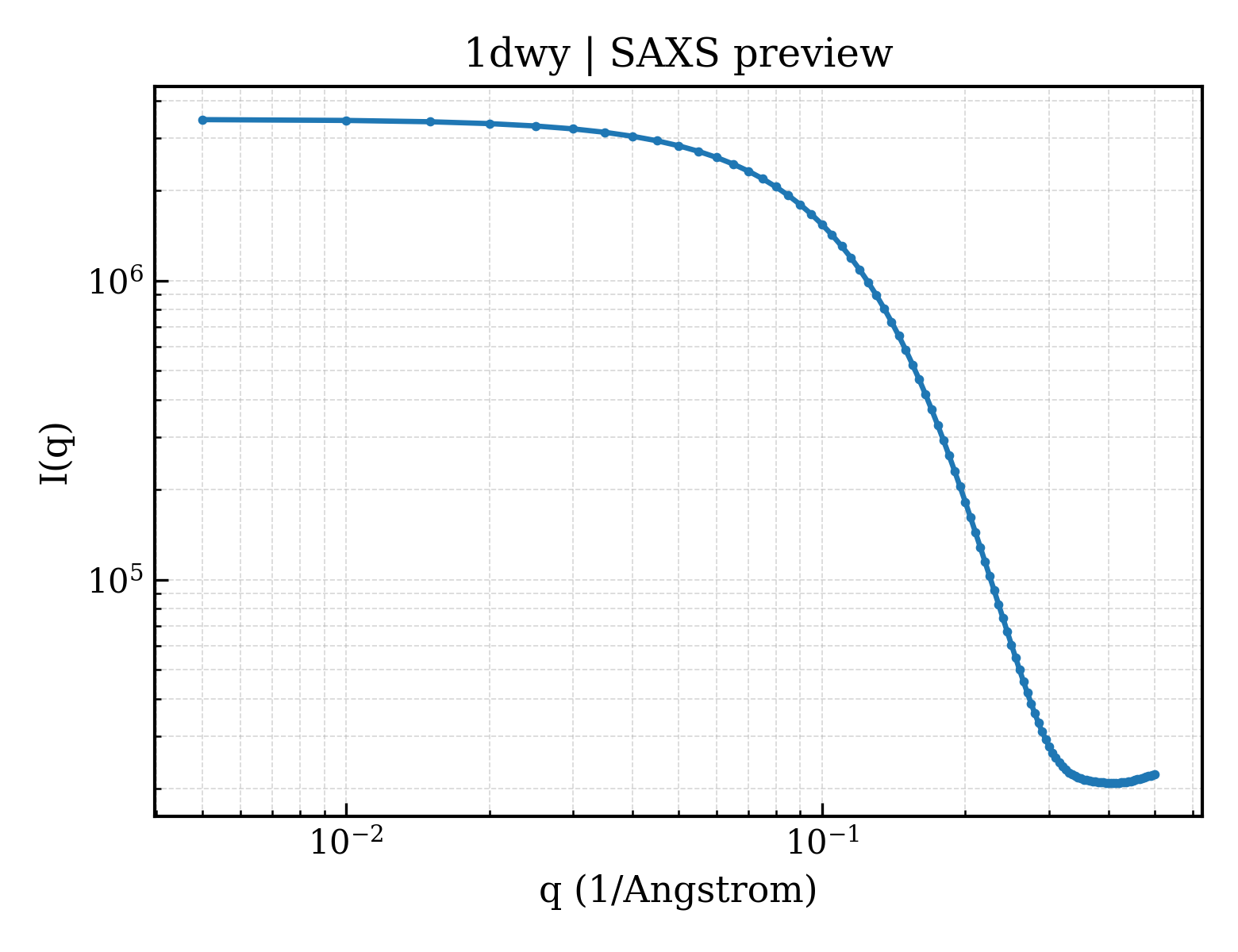

SAXS Profile

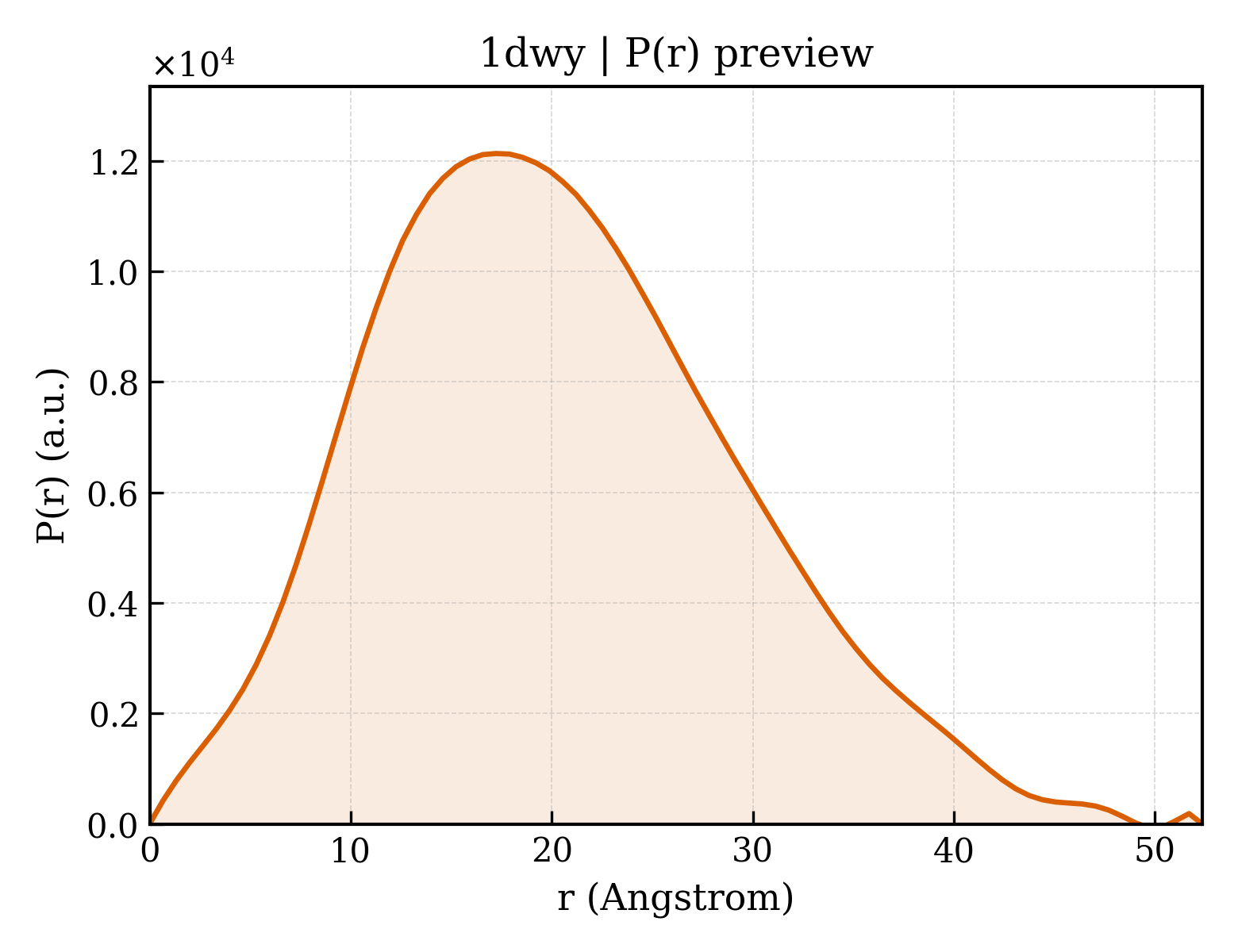

P(r) Distribution
1. Structure Basics
| entry_id | 1dwy |
| deposition_date | 1999-12-15 |
| title | Bovine prion protein fragment 121-230 |
| keywords | PRION PROTEIN, PRION, BRAIN; PRION PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.61 Å |
| rg_electron | 14.54 Å |
| i0 | 3456140.00 |
| molecular_weight | 12393.0 kDa |
| excluded_volume | 15142 ų |
| envelope_volume | 18213 ų |
| shell_volume | 11106 ų |
| envelope_diameter | 51.7 Å |
| shell_rg | 19.50 Å |
| envelope_rg | 15.07 Å |
| shape_rg | 14.58 Å |
| total_rg | 15.40 Å |
| total_atoms | 1675 |
| n_residues | 104 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.4 Å |
| rg_real | 15.62 Å |
| rg_real_error | 0.31 Å |
| i0_real | 3.4560e+06 |
| i0_real_error | 3.6880e+04 |
| rg_reciprocal | 15.62 Å |
| i0_reciprocal | 3456000.0000 |
| total_estimate | 0.6509 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 17.2 Å |
| skewness | 0.388 |
| kurtosis | -0.201 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 987200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.799; Stabil: 1.000; Sysdev: 0.368; Positv: 1.000; Valcen: 0.959; Smooth: 0.000 |
