1dx7
Light-harvesting complex 1 beta subunit from Rhodobacter sphaeroides

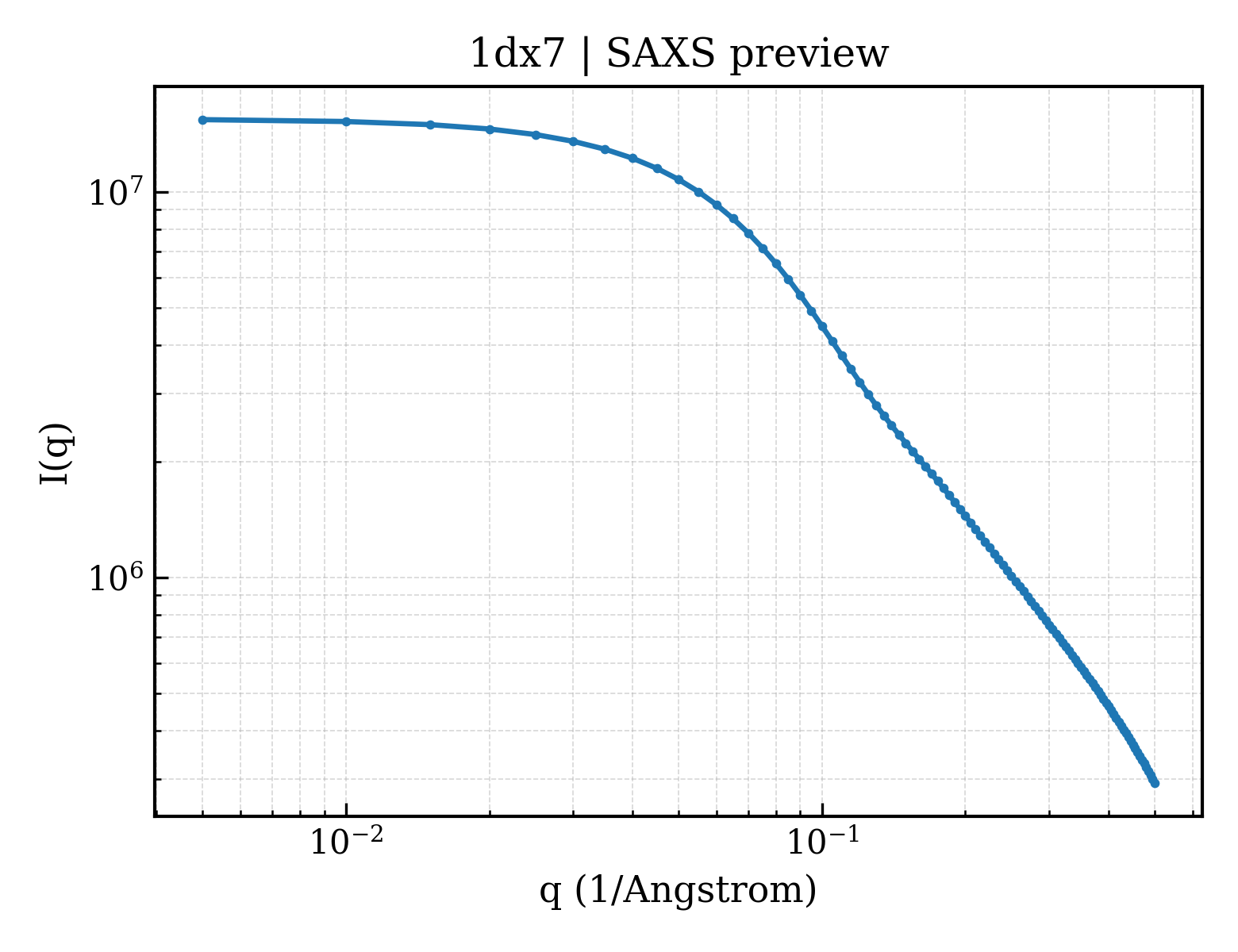

SAXS Profile

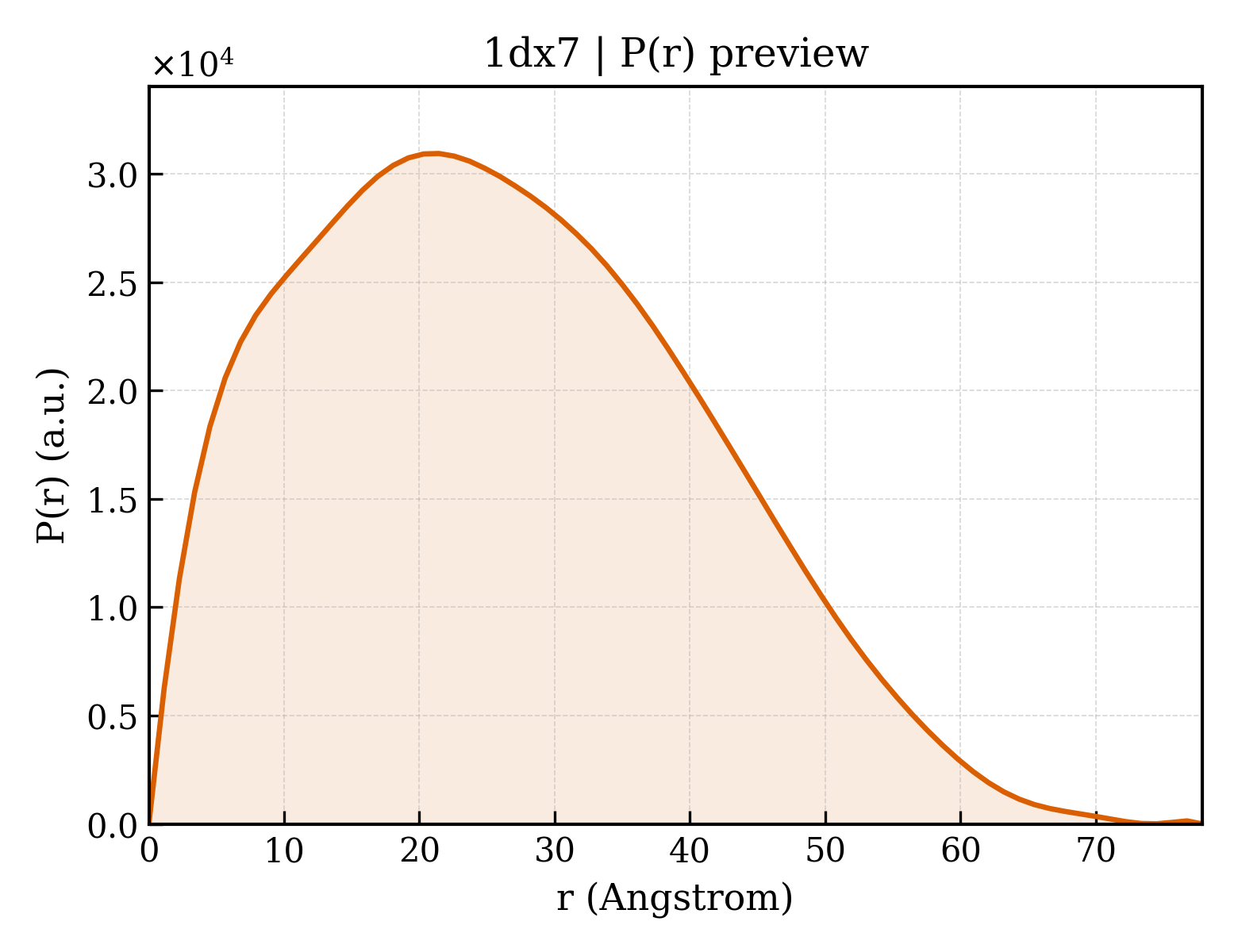

P(r) Distribution
1. Structure Basics
| entry_id | 1dx7 |
| deposition_date | 1999-12-21 |
| title | Light-harvesting complex 1 beta subunit from Rhodobacter sphaeroides |
| keywords | LIGHT-HARVESTING PROTEIN, BACTERIOCHLOROPHYLL BINDING, MEMBRANE PROTEIN, LIGHT HARVESTING, PHOTOSYNTHESIS; LIGHT-HARVESTING PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.90 Å |
| rg_electron | 20.54 Å |
| i0 | 15456600.00 |
| molecular_weight | 32725.0 kDa |
| excluded_volume | 41615 ų |
| envelope_volume | 31950 ų |
| shell_volume | 12781 ų |
| envelope_diameter | 80.8 Å |
| shell_rg | 27.63 Å |
| envelope_rg | 24.51 Å |
| shape_rg | 20.53 Å |
| total_rg | 21.35 Å |
| total_atoms | 4542 |
| n_residues | 288 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 77.9 Å |
| rg_real | 21.17 Å |
| rg_real_error | 0.87 Å |
| i0_real | 1.5460e+07 |
| i0_real_error | 2.0020e+05 |
| rg_reciprocal | 21.12 Å |
| i0_reciprocal | 15460000.0000 |
| total_estimate | 0.7670 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.4 Å |
| skewness | 0.364 |
| kurtosis | -0.530 |
| angular_range | — – 0.3800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 48110.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.559; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.357; Smooth: 0.934 |
