1dx8
Rubredoxin from Guillardia theta

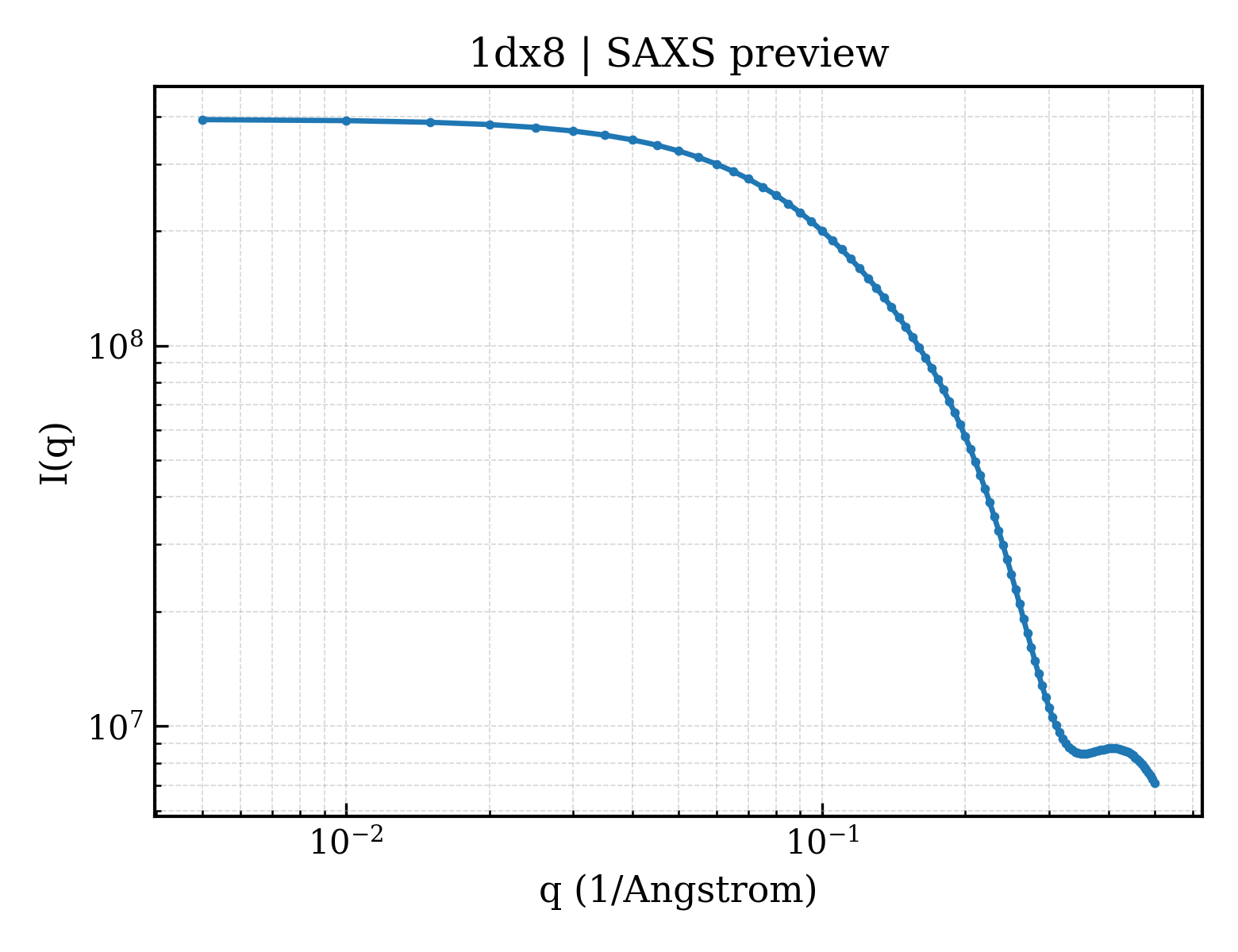

SAXS Profile

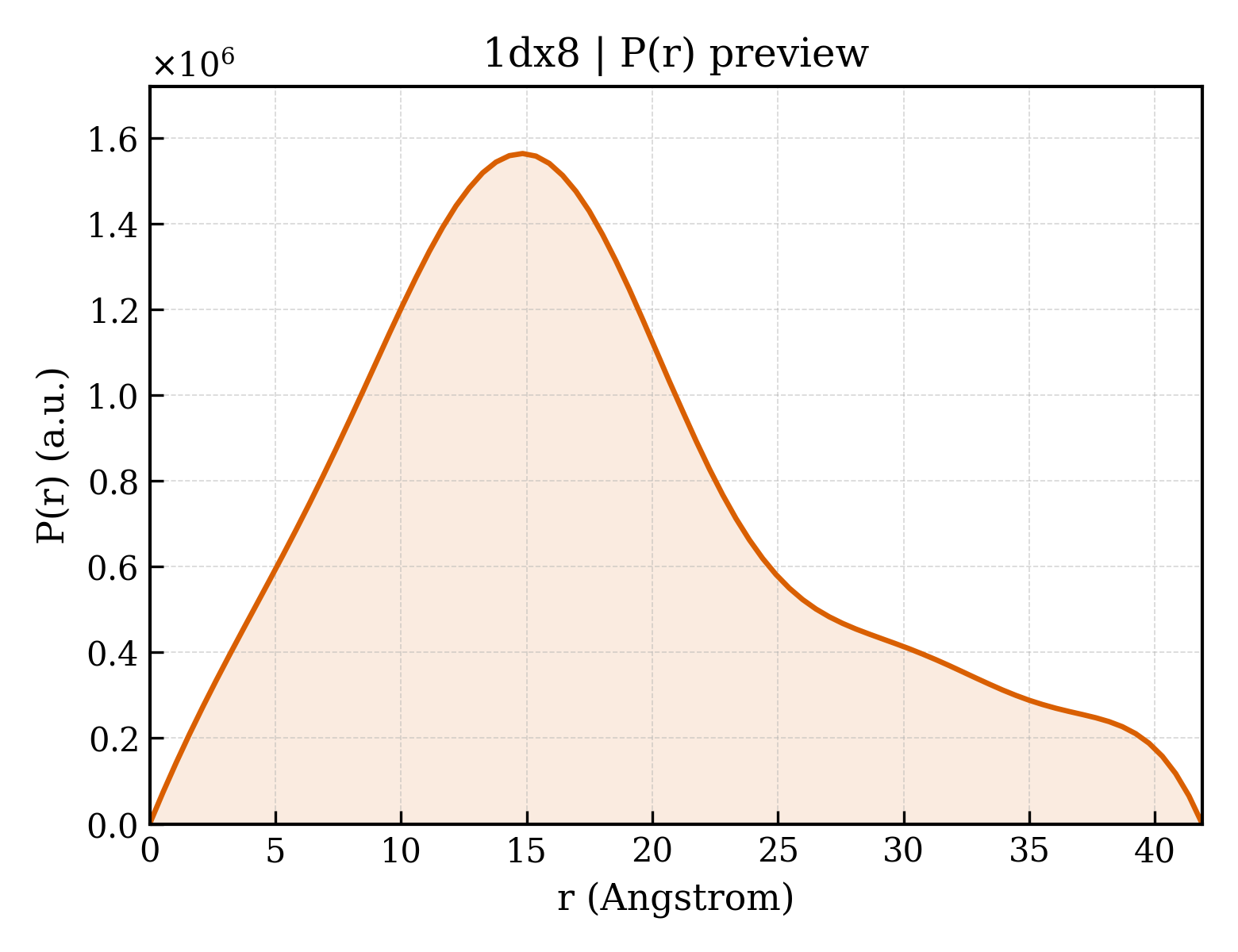

P(r) Distribution
1. Structure Basics
| entry_id | 1dx8 |
| deposition_date | 1999-12-23 |
| title | Rubredoxin from Guillardia theta |
| keywords | ELECTRON TRANSPORT, RUBREDOXIN, GUILLARDIA THETA, ZINC-SUBSTITUTION; ELECTRON TRANSPORT |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.94 Å |
| rg_electron | 14.99 Å |
| i0 | 392794000.00 |
| molecular_weight | 164620.0 kDa |
| excluded_volume | 204340 ų |
| envelope_volume | 39678 ų |
| shell_volume | 15932 ų |
| envelope_diameter | 71.7 Å |
| shell_rg | 27.78 Å |
| envelope_rg | 24.90 Å |
| shape_rg | 15.02 Å |
| total_rg | 15.29 Å |
| total_atoms | 22344 |
| n_residues | 1470 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 41.9 Å |
| rg_real | 13.73 Å |
| rg_real_error | 0.10 Å |
| i0_real | 3.7470e+08 |
| i0_real_error | 3.1280e+06 |
| rg_reciprocal | 15.42 Å |
| i0_reciprocal | 392800000.0000 |
| total_estimate | 0.6386 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 14.8 Å |
| skewness | 0.604 |
| kurtosis | -0.121 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 2.6970 |
| highest_alpha | 67160.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.008; Oscil: 0.832; Stabil: 0.981; Sysdev: 0.000; Positv: 1.000; Valcen: 0.903; Smooth: 0.000 |
