1dx9
W57A Apoflavodoxin from Anabaena
SAXS Profile

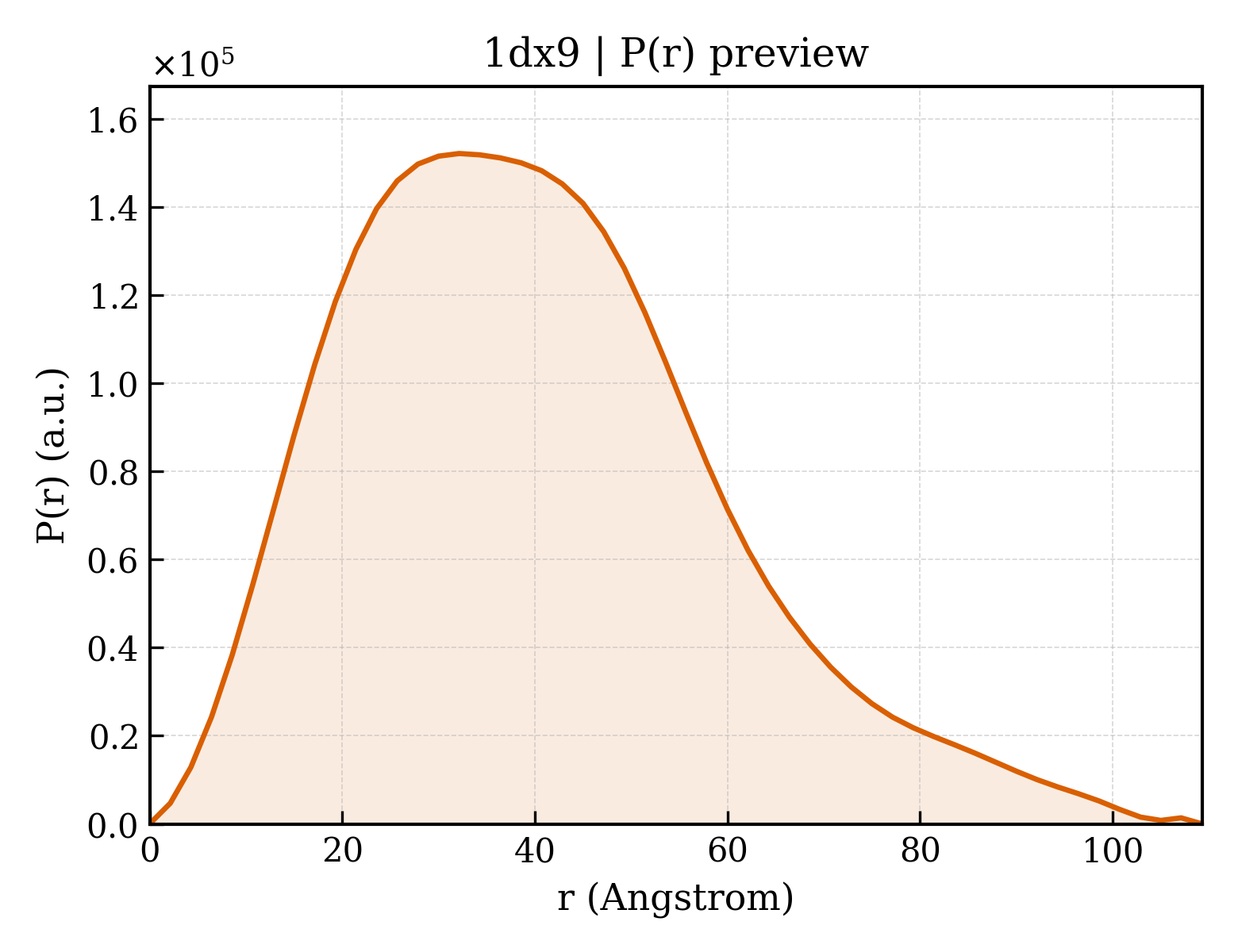

P(r) Distribution
1. Structure Basics
| entry_id | 1dx9 |
| deposition_date | 1999-12-23 |
| title | W57A Apoflavodoxin from Anabaena |
| keywords | FLAVOPROTEIN; FLAVOPROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 31.01 Å |
| rg_electron | 30.71 Å |
| i0 | 93214400.00 |
| molecular_weight | 74837.0 kDa |
| excluded_volume | 92605 ų |
| envelope_volume | 114930 ų |
| shell_volume | 33144 ų |
| envelope_diameter | 114.5 Å |
| shell_rg | 35.37 Å |
| envelope_rg | 30.58 Å |
| shape_rg | 30.71 Å |
| total_rg | 31.12 Å |
| total_atoms | 5288 |
| n_residues | 672 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 109.3 Å |
| rg_real | 31.25 Å |
| rg_real_error | 1.09 Å |
| i0_real | 9.3210e+07 |
| i0_real_error | 1.5130e+06 |
| rg_reciprocal | 31.15 Å |
| i0_reciprocal | 93210000.0000 |
| total_estimate | 0.8242 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 32.1 Å |
| skewness | 0.591 |
| kurtosis | 0.110 |
| angular_range | — – 0.2550 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 46170000.0000 |
| n_real_points | 52 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.732; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.794; Smooth: 0.722 |
