1dy2
Murine collagen alpha1(XV), endostatin domain

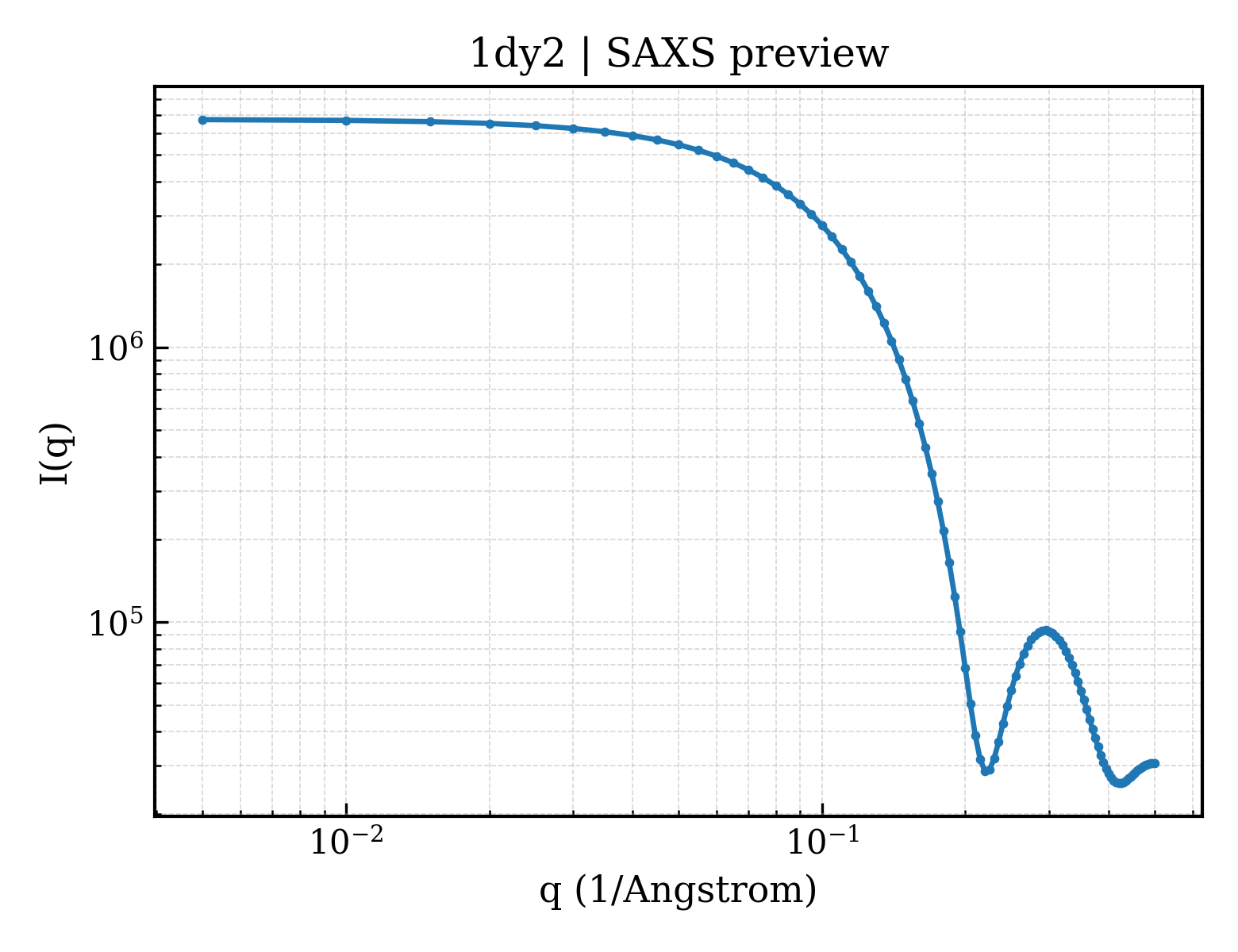

SAXS Profile

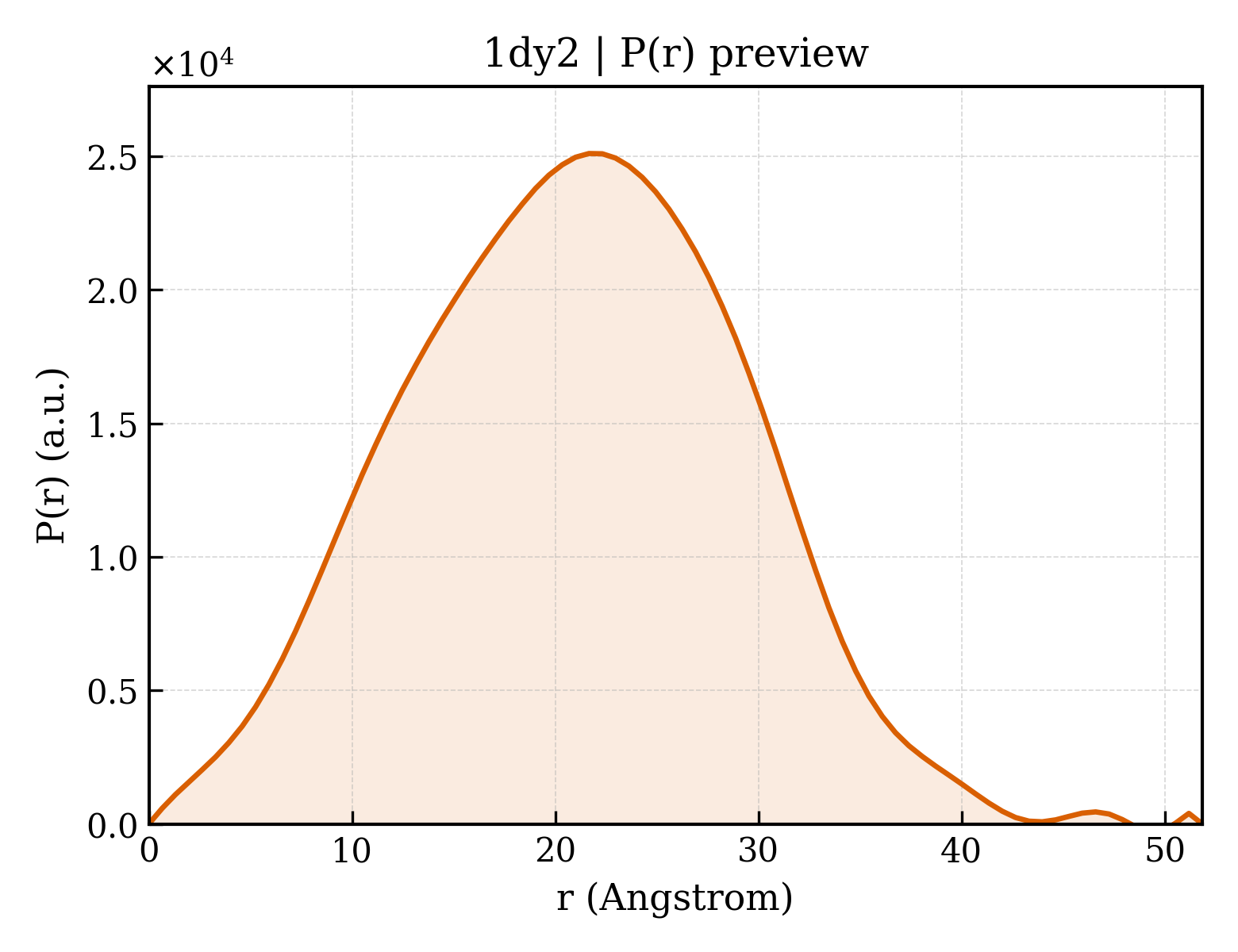

P(r) Distribution
1. Structure Basics
| entry_id | 1dy2 |
| deposition_date | 2000-01-21 |
| title | Murine collagen alpha1(XV), endostatin domain |
| keywords | ANGIOGENESIS INHIBITOR; ANGIOGENESIS INHIBITOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.00 Å |
| rg_electron | 14.67 Å |
| i0 | 6742530.00 |
| molecular_weight | 18766.0 kDa |
| excluded_volume | 23451 ų |
| envelope_volume | 25850 ų |
| shell_volume | 14566 ų |
| envelope_diameter | 52.3 Å |
| shell_rg | 20.95 Å |
| envelope_rg | 14.95 Å |
| shape_rg | 14.64 Å |
| total_rg | 15.92 Å |
| total_atoms | 1323 |
| n_residues | 168 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 51.9 Å |
| rg_real | 15.86 Å |
| rg_real_error | 0.28 Å |
| i0_real | 6.7430e+06 |
| i0_real_error | 8.3870e+04 |
| rg_reciprocal | 15.87 Å |
| i0_reciprocal | 6743000.0000 |
| total_estimate | 0.7882 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 21.7 Å |
| skewness | 0.023 |
| kurtosis | -0.366 |
| angular_range | — – 0.4950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1845000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.750; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.000 |
