1dzj
Porcine Odorant Binding Protein Complexed with 2-amino-4-butyl-5-propylselenazole

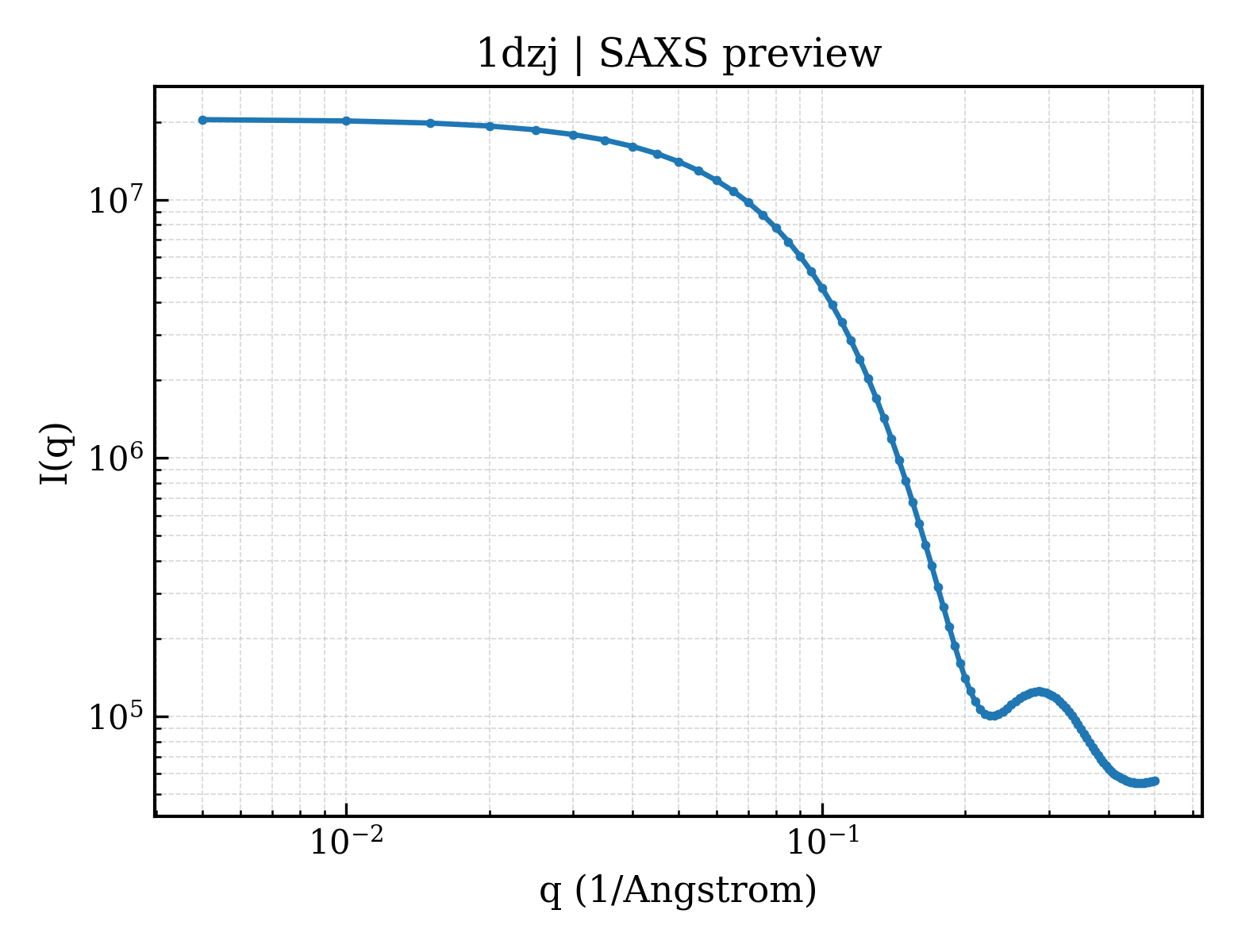

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dzj |
| deposition_date | 2000-03-01 |
| title | Porcine Odorant Binding Protein Complexed with 2-amino-4-butyl-5-propylselenazole |
| keywords | LIPOCALIN, TRANSPORT, OLFACTION, SENSORY TRANSDUCTION; TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.31 Å |
| rg_electron | 20.28 Å |
| i0 | 20491600.00 |
| molecular_weight | 33775.0 kDa |
| excluded_volume | 41950 ų |
| envelope_volume | 49778 ų |
| shell_volume | 20780 ų |
| envelope_diameter | 74.5 Å |
| shell_rg | 26.45 Å |
| envelope_rg | 20.49 Å |
| shape_rg | 20.28 Å |
| total_rg | 21.11 Å |
| total_atoms | 2370 |
| n_residues | 296 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 73.5 Å |
| rg_real | 21.31 Å |
| rg_real_error | 0.47 Å |
| i0_real | 2.0490e+07 |
| i0_real_error | 2.6200e+05 |
| rg_reciprocal | 21.31 Å |
| i0_reciprocal | 20490000.0000 |
| total_estimate | 0.6799 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 24.8 Å |
| skewness | 0.402 |
| kurtosis | -0.151 |
| angular_range | — – 0.3750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4305000.0000 |
| n_real_points | 69 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.743; Stabil: 1.000; Sysdev: 0.225; Positv: 1.000; Valcen: 0.978; Smooth: 0.954 |
