1e05

PLASMA ALPHA ANTITHROMBIN-III

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ANTITHROMBIN-III

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Monomer	Protein 1 其他Polymer 2	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ;beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[beta-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)]alpha-L-gulopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 alpha-D-mannopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 GLYCEROL × 1 PHOSPHATE ION × 1 water × 1	Consistent with protein count
2	Other combination	Monomer	Protein 1 其他Polymer 2	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 alpha-D-mannopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 GLYCEROL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ANT3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain I； PDBConstruct 1–432； UniProt 33–464 Author chain L； PDBConstruct 1–432； UniProt 33–464

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1e05
Deposition date deposition_date	2000-03-09
Structure title title	PLASMA ALPHA ANTITHROMBIN-III
Keywords keywords	BLOOD CLOTTING, SERPIN; BLOOD CLOTTING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1e05__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1e05__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

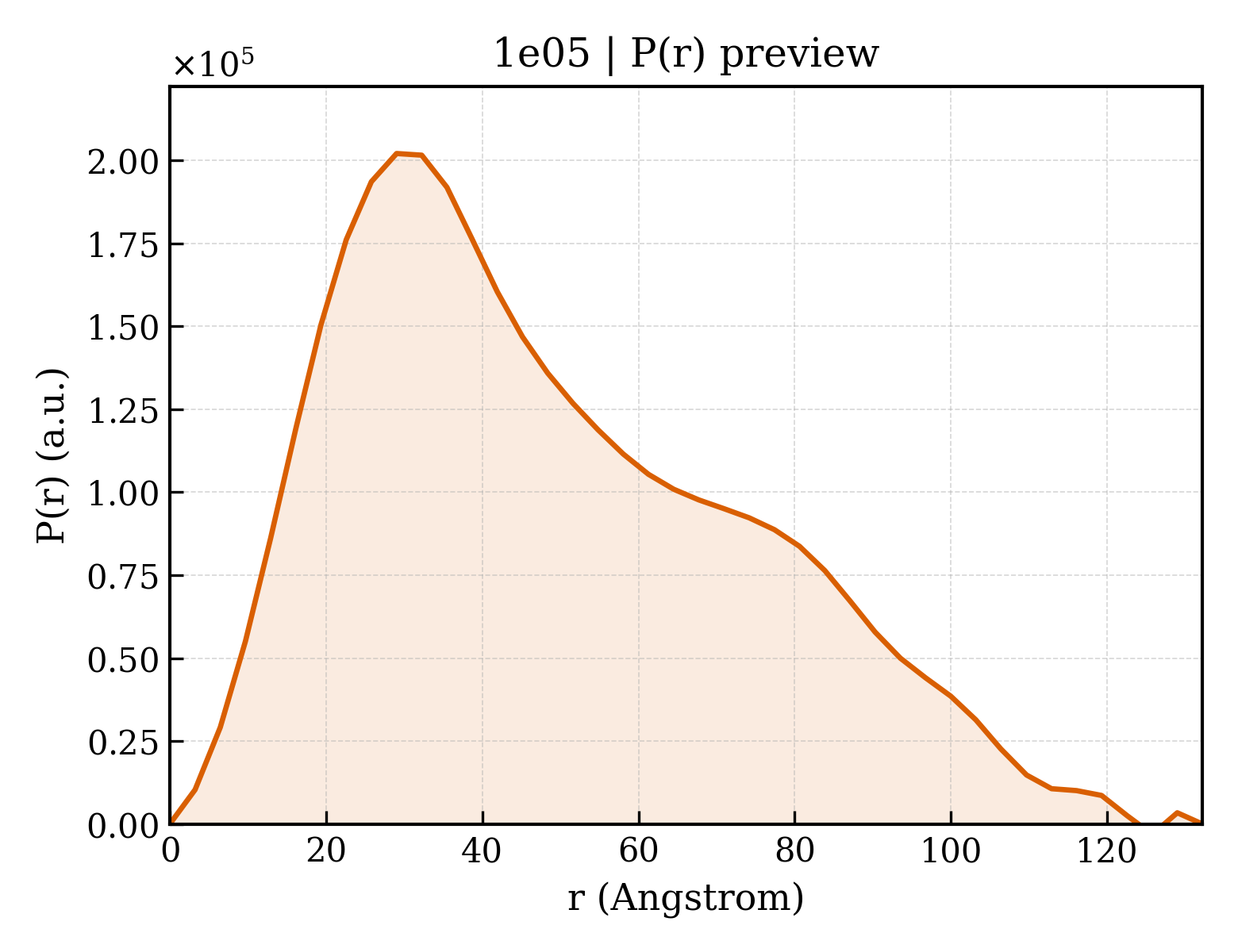

1e05__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.40 Å
Rg (electron density)	22.05 Å
Total Rg	23.13 Å
Atom count	3447
Residues	417
Excluded volume	61702 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1e05__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1e05__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	ANTITHROMBIN-III
Molecular weight formula_weight	49101.0 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,L
Atom count atom_count	6903

HGSPVDICTAKPRDIPMNPMCIYRSPEKKATEDEGSEQKIPEATNRRVWELSKANSRFATTFYQHLADSKNDNDNIFLSPLSISTAFAMTKLGACNDTLQQLMEVFKFDTISEKTSDQIHFFFAKLNCRLYRKANKSSKLVSANRLFGDKSLTFNETYQDISELVYGAKLQPLDFKENAEQSRAAINKWVSNKTEGRITDVIPSEAINELTVLVLVNTIYFKGLWKSKFSPENTRKELFYKADGESCSASMMYQEGKFRYRRVAEGTQVLELPFKGDDITMVLILPKPEKSLAKVEKELTPEVLQEWLDELEEMMLVVHMPRFRIEDGFSLKEQLQDMGLVDLFSPEKSKLPGIVAEGRDDLYVSDAFHKAFLEVNEEGSEAAASTAVVIAGRSLNPNRVTFKANRPFLVFIREVPLNTIIFMGRVANPCVK

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 3 Entity 3 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 branched

Description description	;beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[beta-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)]alpha-L-gulopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1438.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	alpha-D-mannopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	man
Copy count entity_count	3

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	4

Entity 7 Entity 7 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	70

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1e05i_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.1 — Serpins
Superfamily Superfamily superfamily	e.1.1 — Serpins
Family Family family	e.1.1.1 — Serpins

Domain ID domain_id	d1e05l_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.1 — Serpins
Superfamily Superfamily superfamily	e.1.1 — Serpins
Family Family family	e.1.1.1 — Serpins

CATH v4.4 (4 domains)

Domain ID domain_id	1e05I01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	39 — Alpha-1-antitrypsin; domain 1
Homologous superfamily homologous superfamily	10 — Alpha-1-antitrypsin, domain 1

Domain ID domain_id	1e05I02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	497 — Antithrombin; Chain I, domain 2
Homologous superfamily homologous superfamily	10 — Antithrombin, subunit I, domain 2

Domain ID domain_id	1e05L01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	39 — Alpha-1-antitrypsin; domain 1
Homologous superfamily homologous superfamily	10 — Alpha-1-antitrypsin, domain 1

Domain ID domain_id	1e05L02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	497 — Antithrombin; Chain I, domain 2
Homologous superfamily homologous superfamily	10 — Antithrombin, subunit I, domain 2

▶

Unit-cell length a length_a	61.410 Å
Unit-cell length b length_b	98.310 Å
Unit-cell length c length_c	90.410 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	103.32 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.620 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.1960
R_free r_free	0.2560
