1e0g
LYSM Domain from E.coli MLTD
SAXS Profile

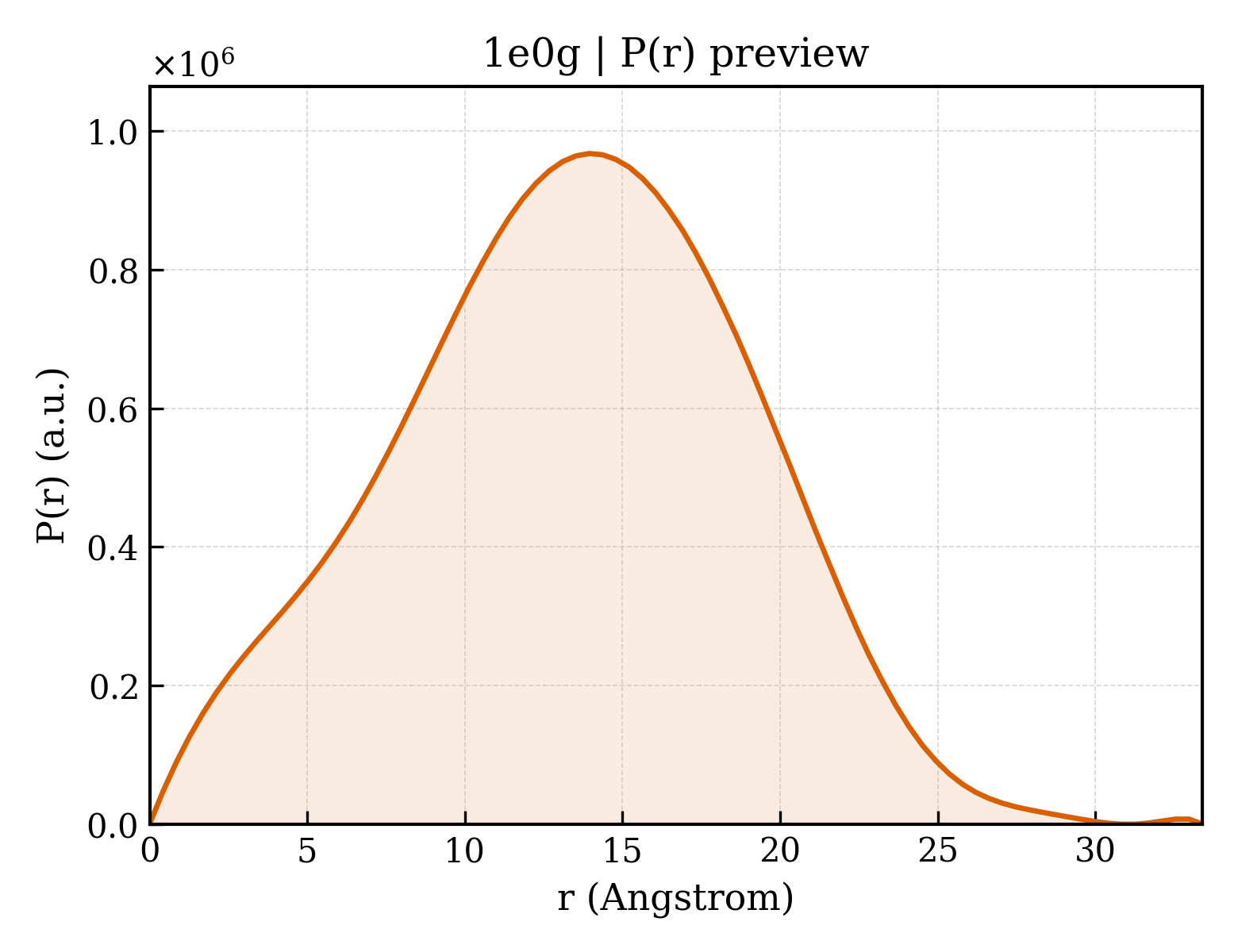

P(r) Distribution
1. Structure Basics
| entry_id | 1e0g |
| deposition_date | 2000-03-27 |
| title | LYSM Domain from E.coli MLTD |
| keywords | CELL WALL, HYDROLASE, GLYCOSIDASE, LIPOPROTEIN, OUTER MEMBRANE, MULTIGENE FAMILY; HYDROLASE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.35 Å |
| rg_electron | 9.97 Å |
| i0 | 173576000.00 |
| molecular_weight | 108730.0 kDa |
| excluded_volume | 135690 ų |
| envelope_volume | 11534 ų |
| shell_volume | 8763 ų |
| envelope_diameter | 37.9 Å |
| shell_rg | 16.91 Å |
| envelope_rg | 11.81 Å |
| shape_rg | 9.93 Å |
| total_rg | 10.31 Å |
| total_atoms | 15520 |
| n_residues | 960 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 33.4 Å |
| rg_real | 10.27 Å |
| rg_real_error | 0.21 Å |
| i0_real | 1.7360e+08 |
| i0_real_error | 1.6400e+06 |
| rg_reciprocal | 10.27 Å |
| i0_reciprocal | 173600000.0000 |
| total_estimate | 0.8781 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 13.9 Å |
| skewness | -0.043 |
| kurtosis | -0.398 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 29800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.829; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.928 |
