1e0l
FBP28WW domain from Mus musculus
SAXS Profile

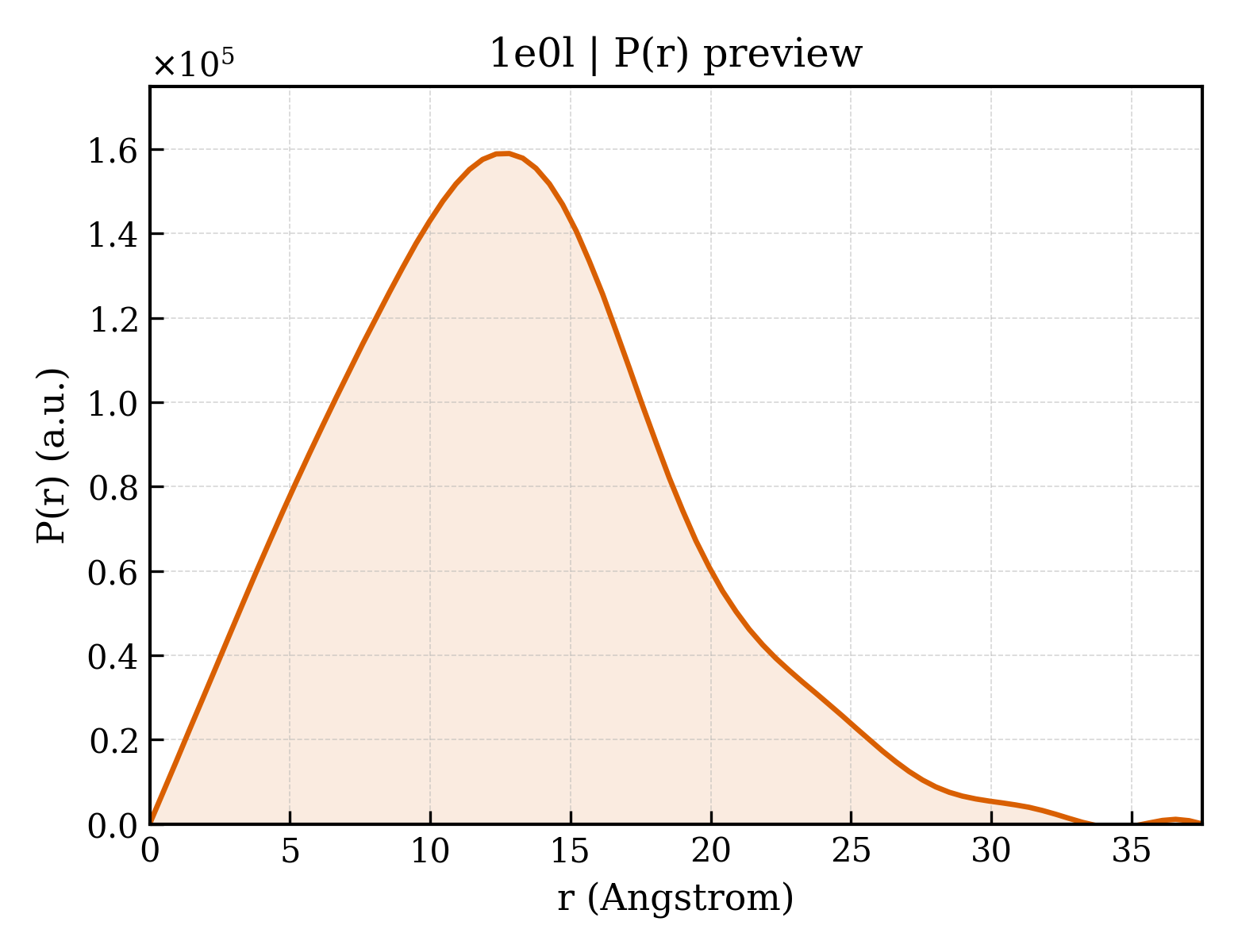

P(r) Distribution
1. Structure Basics
| entry_id | 1e0l |
| deposition_date | 2000-03-30 |
| title | FBP28WW domain from Mus musculus |
| keywords | SH3 DOMAIN, WW DOMAIN, FBP28, SIGNAL TRANSDUCTION; SH3 DOMAIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.97 Å |
| rg_electron | 9.86 Å |
| i0 | 28874400.00 |
| molecular_weight | 43587.0 kDa |
| excluded_volume | 54077 ų |
| envelope_volume | 8595 ų |
| shell_volume | 7198 ų |
| envelope_diameter | 38.8 Å |
| shell_rg | 15.78 Å |
| envelope_rg | 11.23 Å |
| shape_rg | 9.79 Å |
| total_rg | 10.42 Å |
| total_atoms | 5970 |
| n_residues | 370 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 37.5 Å |
| rg_real | 10.00 Å |
| rg_real_error | 0.52 Å |
| i0_real | 2.8870e+07 |
| i0_real_error | 3.3470e+05 |
| rg_reciprocal | 10.00 Å |
| i0_reciprocal | 28870000.0000 |
| total_estimate | 0.8148 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 12.8 Å |
| skewness | 0.411 |
| kurtosis | 0.016 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 22230.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.623; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.794; Smooth: 0.931 |
