SAXSdb — 1e0r

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

THERMOSOME

THERMOPLASMA ACIDOPHILUM

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 214–367	Fragment：SUBSTRATE-BINDING DOMAIN Mutation：YES	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：pH 9.1；pH 9.10	Resolution 2.80 Å R-free 0.318

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1E0R	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A6D THERMOSOME FROM T. ACIDOPHILUM Deposited 1998-02-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain B 1–543（543 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 2.60 Å R-free 0.298
1A6D THERMOSOME FROM T. ACIDOPHILUM Deposited 1998-02-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–543（543 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 2.60 Å R-free 0.298
1A6E THERMOSOME-MG-ADP-ALF3 COMPLEX Deposited 1998-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain B 1–543（543 aa）	Not recorded	MG MAGNESIUM ION × 16 ADP ADENOSINE-5'-DIPHOSPHATE × 16 AF3 ALUMINUM FLUORIDE × 16	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 3.20 Å R-free 0.285
1A6E THERMOSOME-MG-ADP-ALF3 COMPLEX Deposited 1998-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 1–543（543 aa）	Not recorded	MG MAGNESIUM ION × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 8 AF3 ALUMINUM FLUORIDE × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 3.20 Å R-free 0.285

2 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	THSB_THEAC
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–154； UniProt 214–367

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1e0r
Deposition date deposition_date	2000-04-06
Structure title title	Beta-apical domain of thermosome
Keywords keywords	CHAPERONIN, HSP60, THERMOSOME, TCP1, GROEL, THERMOPLASMA ACIDOPHILUM; CHAPERONIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.11 Å
Radius of gyration Rg (electron density) rg_electron	17.16 Å
Forward intensity I(0) i0	5334940.00
Molecular weight molecular_weight	16595.0 kDa
Excluded volume excluded_volume	20787 Å³
Envelope volume envelope_volume	24619 Å³
Hydration-shell volume shell_volume	13190 Å³
Envelope diameter envelope_diameter	72.6 Å
Shell Rg shell_rg	22.13 Å
Envelope Rg envelope_rg	17.92 Å
Shape Rg shape_rg	17.19 Å
Total Rg total_rg	17.97 Å
Total atoms total_atoms	1160
Residues n_residues	154
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

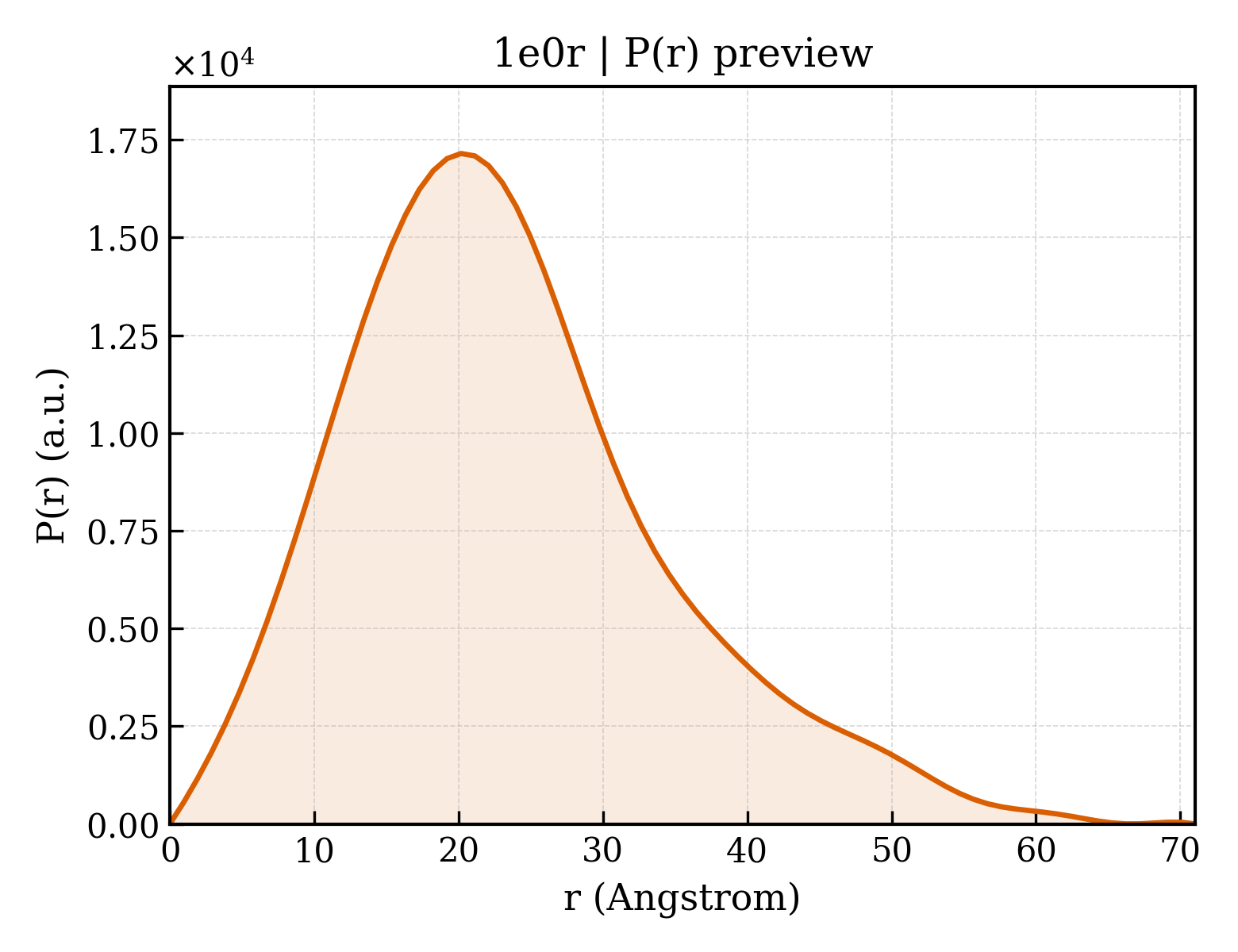

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	71.0 Å
Rg (real space) rg_real	18.30 Å
Rg uncertainty (real space) rg_real_error	0.64 Å
I(0) (real space) i0_real	5.3350e+06
I(0) uncertainty (real space) i0_real_error	7.6610e+04
Rg (reciprocal space) rg_reciprocal	18.28 Å
I(0) (reciprocal space) i0_reciprocal	5335000.0000
Solution quality estimate total_estimate	0.7573
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.2 Å
Skewness Skewness skewness	0.698
Kurtosis Kurtosis kurtosis	0.400
Angular range angular_range	— – 0.4400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1017000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.381; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.709; Smooth: 0.990

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1e0rb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.8 — The 'swivelling' beta/beta/alpha domain
Superfamily Superfamily superfamily	c.8.5 — GroEL apical domain-like
Family Family family	c.8.5.2 — Group II chaperonin (CCT, TRIC), apical domain

CATH v4.4 (1 domains)

Domain ID domain_id	1e0rB00
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

▶

8. Citations (3)

▶

Unit-cell length a length_a	57.320 Å
Unit-cell length b length_b	57.320 Å
Unit-cell length c length_c	106.140 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.2610
R_work r_work	0.2610
R_free r_free	0.3180

Description description	THERMOSOME
Molecular weight formula_weight	17763.4 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	1160
