1e10
[2Fe-2S]-Ferredoxin from Halobacterium salinarum

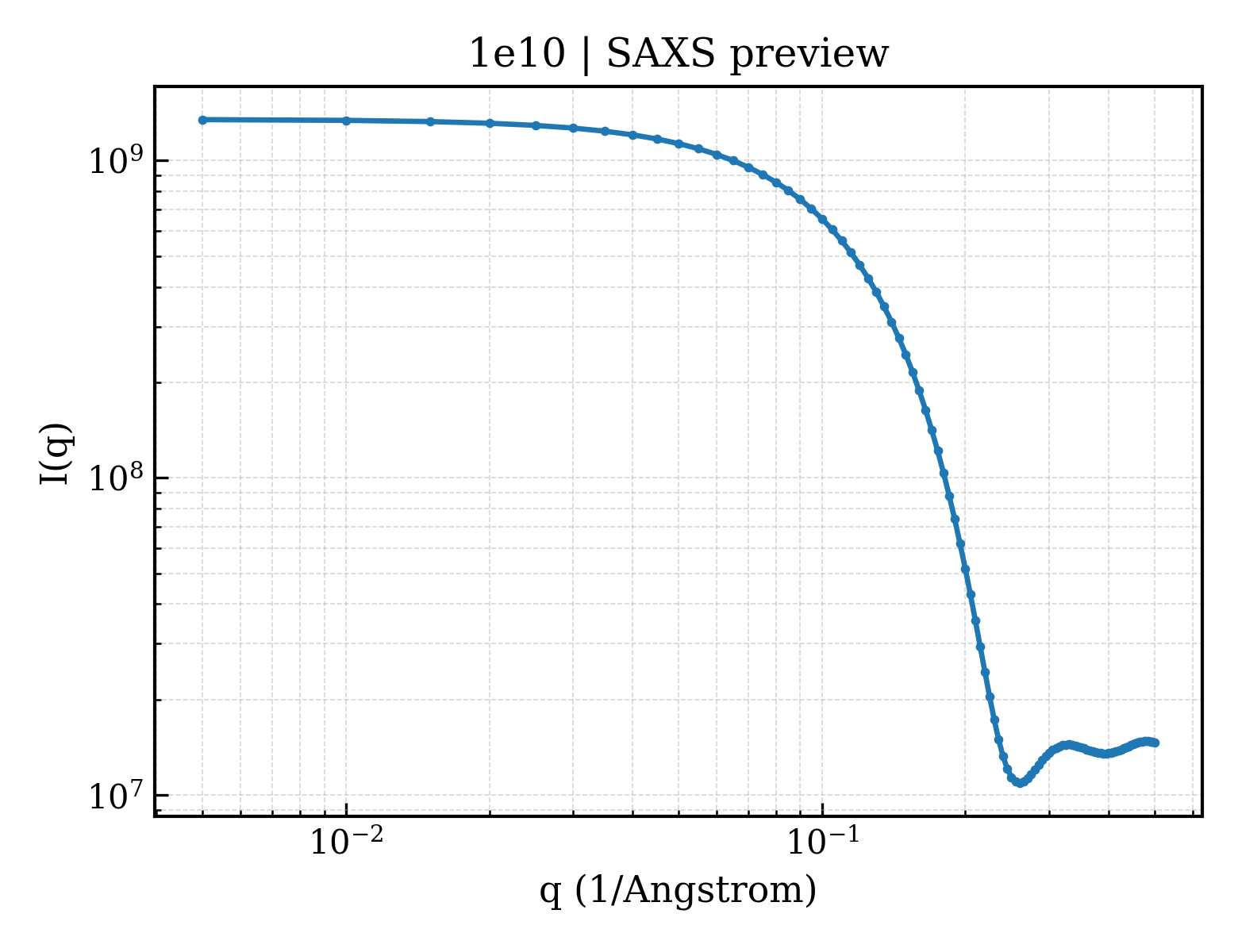

SAXS Profile

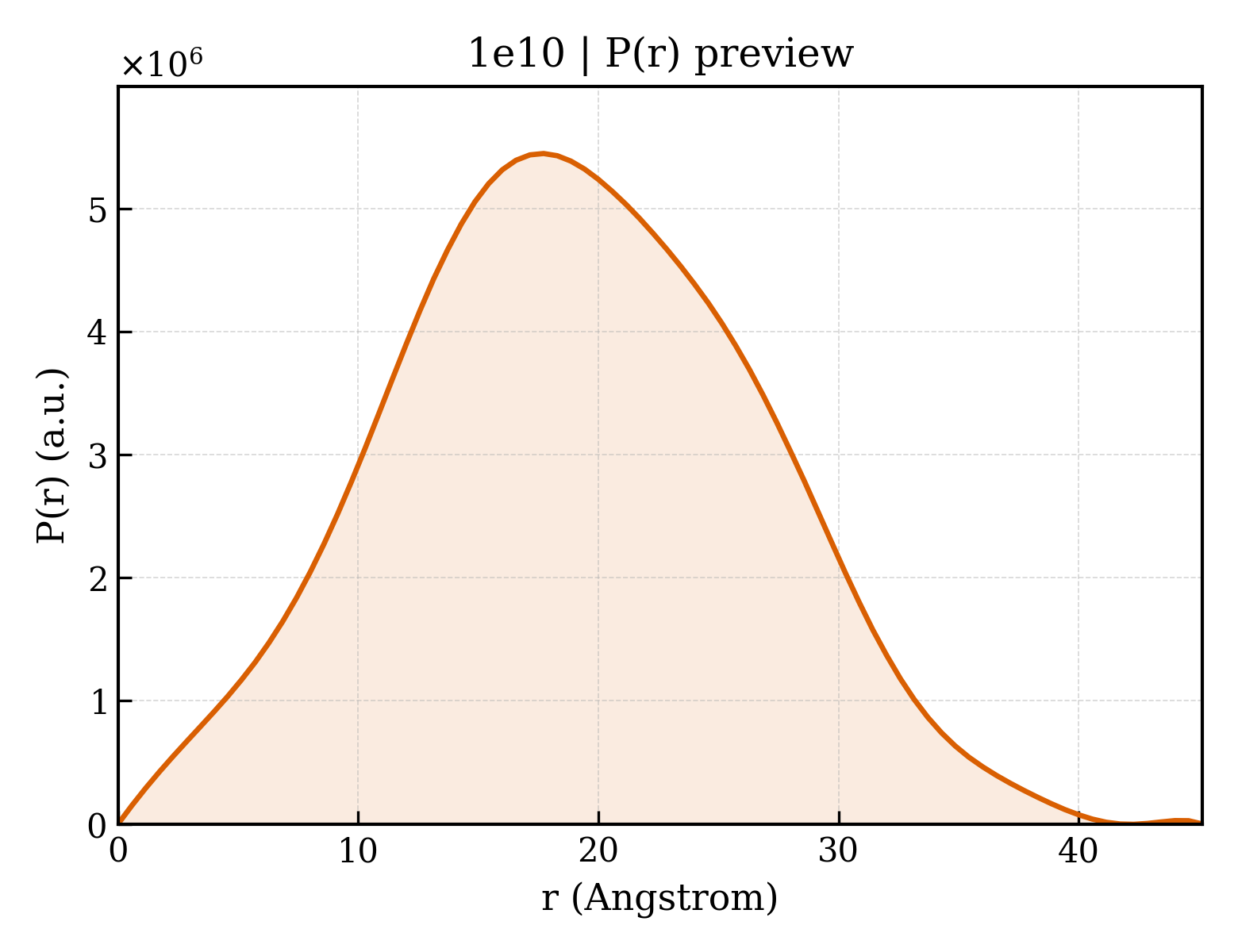

P(r) Distribution
1. Structure Basics
| entry_id | 1e10 |
| deposition_date | 2000-04-12 |
| title | [2Fe-2S]-Ferredoxin from Halobacterium salinarum |
| keywords | IRON-SULFUR PROTEIN, FERREDOXIN, HALOBACTERIUM SALINARUM, HALOPHILIC; IRON-SULFUR PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.56 Å |
| rg_electron | 14.11 Å |
| i0 | 1348460000.00 |
| molecular_weight | 289630.0 kDa |
| excluded_volume | 351520 ų |
| envelope_volume | 33546 ų |
| shell_volume | 16975 ų |
| envelope_diameter | 51.4 Å |
| shell_rg | 22.66 Å |
| envelope_rg | 16.58 Å |
| shape_rg | 14.11 Å |
| total_rg | 14.22 Å |
| total_atoms | 38280 |
| n_residues | 2560 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 45.1 Å |
| rg_real | 14.45 Å |
| rg_real_error | 0.21 Å |
| i0_real | 1.3480e+09 |
| i0_real_error | 1.3530e+07 |
| rg_reciprocal | 14.46 Å |
| i0_reciprocal | 1348000000.0000 |
| total_estimate | 0.8902 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 17.7 Å |
| skewness | 0.078 |
| kurtosis | -0.391 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 493100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.875; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.962 |
