SAXSdb — 1e19

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CARBAMATE KINASE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ADENOSINE-5'-DIPHOSPHATE × 2 MAGNESIUM ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CPKA_PYRFU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–314； UniProt 1–314 Author chain B； PDBConstruct 1–314； UniProt 1–314

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1e19
Deposition date deposition_date	2000-04-28
Structure title title	Structure of the carbamate kinase-like carbamoyl phosphate synthetase from the hyperthermophilic archaeon Pyrococcus furiosus bound to ADP
Keywords keywords	TRANSFERASE, HYPERTHERMOPHILES, ADP SITE, ARGININE METABOLISM PHOSPHORYL GROUP TRANSFER; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1e19__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1e19__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

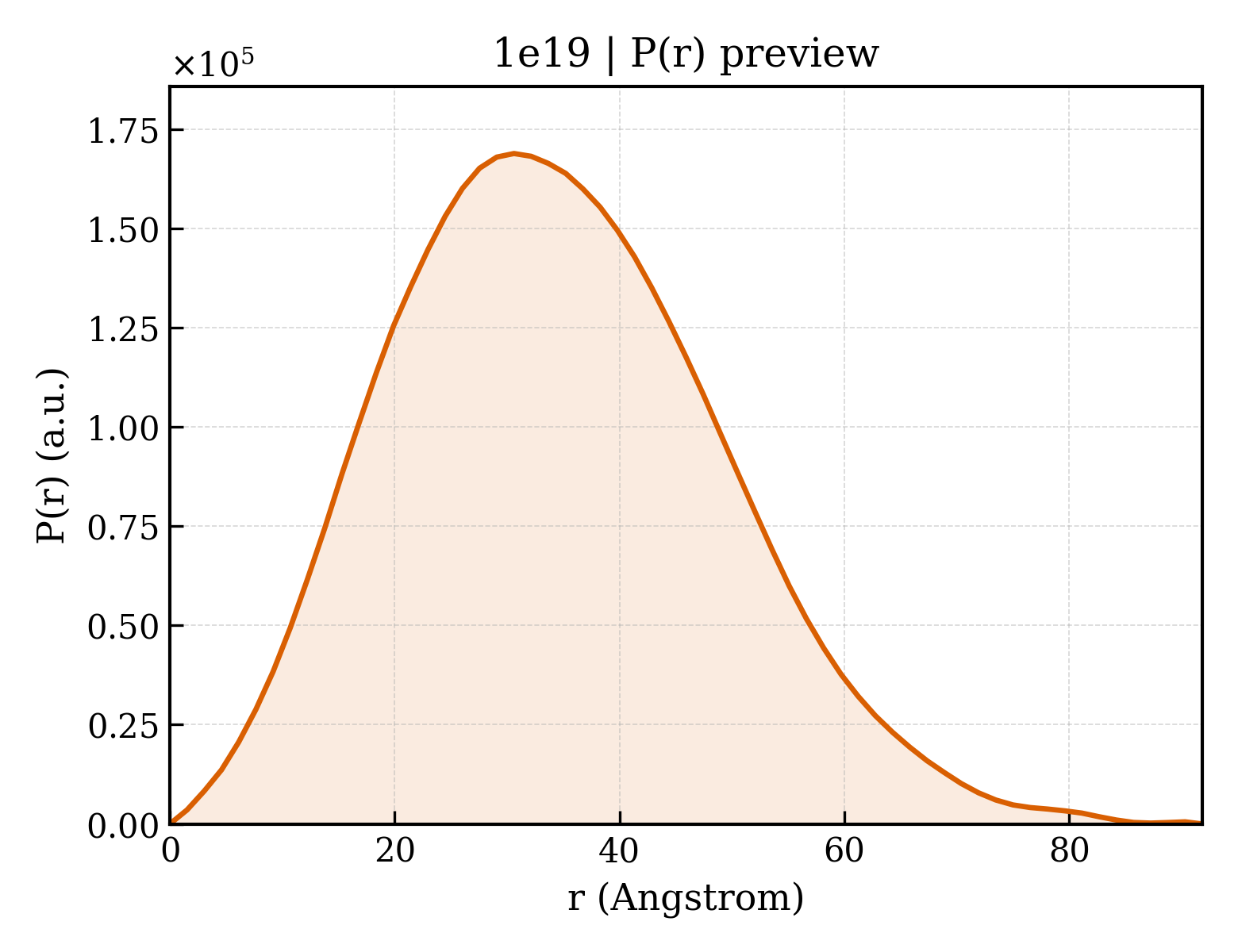

1e19__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.42 Å
Rg (electron density)	25.47 Å
Total Rg	26.12 Å
Atom count	4882
Residues	626
Excluded volume	86996 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1e19__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CARBAMATE KINASE
Molecular weight formula_weight	34475.6 kDa
EC 编号 ec_number	2.7.2.2
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5734

MGKRVVIALGGNALQQRGQKGSYEEMMDNVRKTARQIAEIIARGYEVVITHGNGPQVGSLLLHMDAGQATYGIPAQPMDVAGAMSQGWIGYMIQQALKNELRKRGMEKKVVTIITQTIVDKNDPAFQNPTKPVGPFYDEETAKRLAREKGWIVKEDSGRGWRRVVPSPDPKGHVEAETIKKLVERGVIVIASGGGGVPVILEDGEIKGVEAVIDKDLAGEKLAEEVNADIFMILTDVNGAALYYGTEKEQWLREVKVEELRKYYEEGHFKAGSMGPKVLAAIRFIEWGGERAIIAHLEKAVEALEGKTGTQVLP

Entity 2 Entity 2 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	716

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1e19a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.73 — Carbamate kinase-like
Superfamily Superfamily superfamily	c.73.1 — Carbamate kinase-like
Family Family family	c.73.1.1 — Carbamate kinase

Domain ID domain_id	d1e19b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.73 — Carbamate kinase-like
Superfamily Superfamily superfamily	c.73.1 — Carbamate kinase-like
Family Family family	c.73.1.1 — Carbamate kinase

CATH v4.4 (2 domains)

Domain ID domain_id	1e19A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1160 — Carbamate kinase
Homologous superfamily homologous superfamily	10 — Acetylglutamate kinase-like

Domain ID domain_id	1e19B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1160 — Carbamate kinase
Homologous superfamily homologous superfamily	10 — Acetylglutamate kinase-like

▶

Unit-cell length a length_a	55.400 Å
Unit-cell length b length_b	91.700 Å
Unit-cell length c length_c	133.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	—
R_work r_work	0.1830
R_free r_free	0.2180

Structure of the carbamate kinase-like carbamoyl phosphate synthetase from the hyperthermophilic archaeon Pyrococcus furiosus bound to ADP
