1e1u
Human prion protein variant R220K

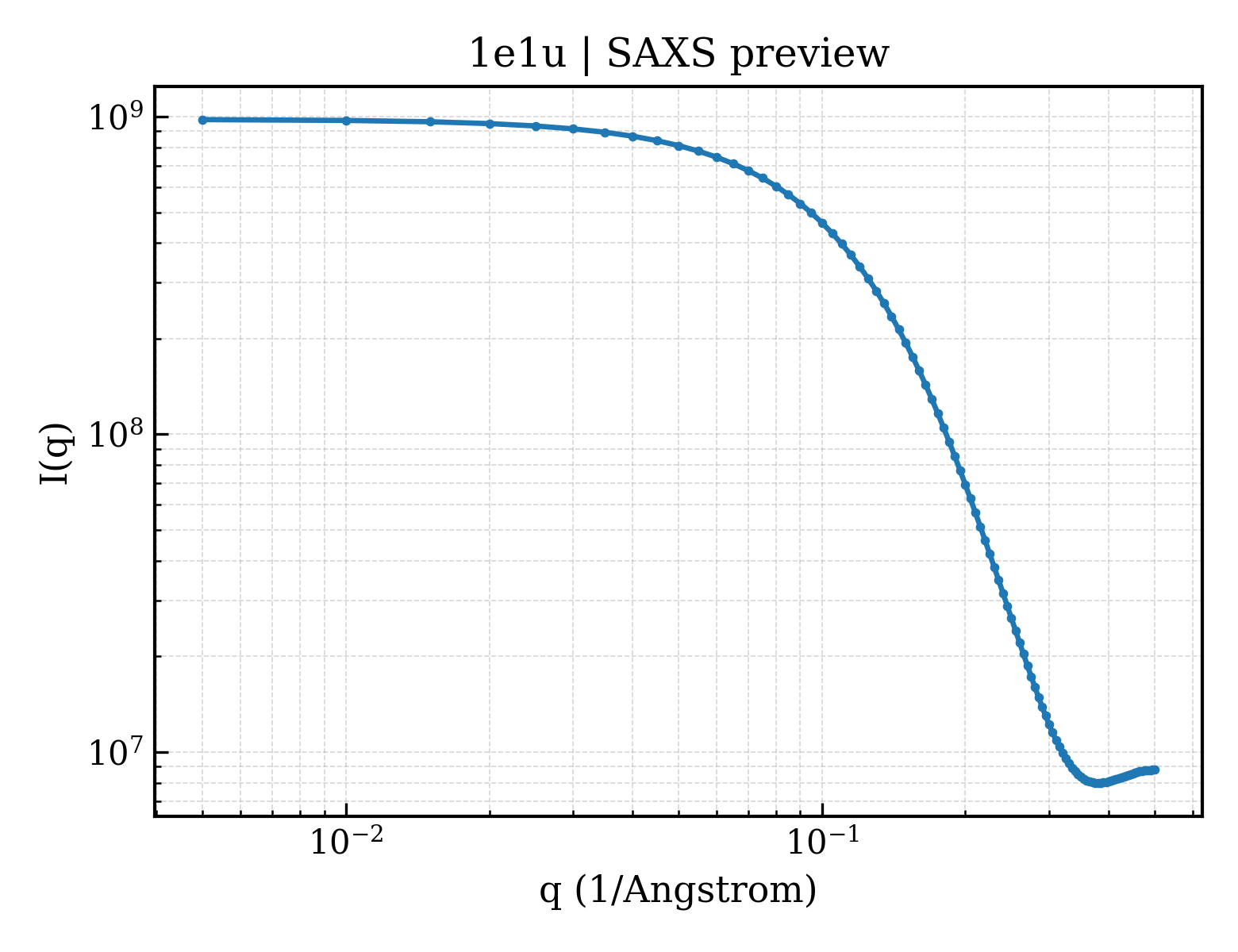

SAXS Profile

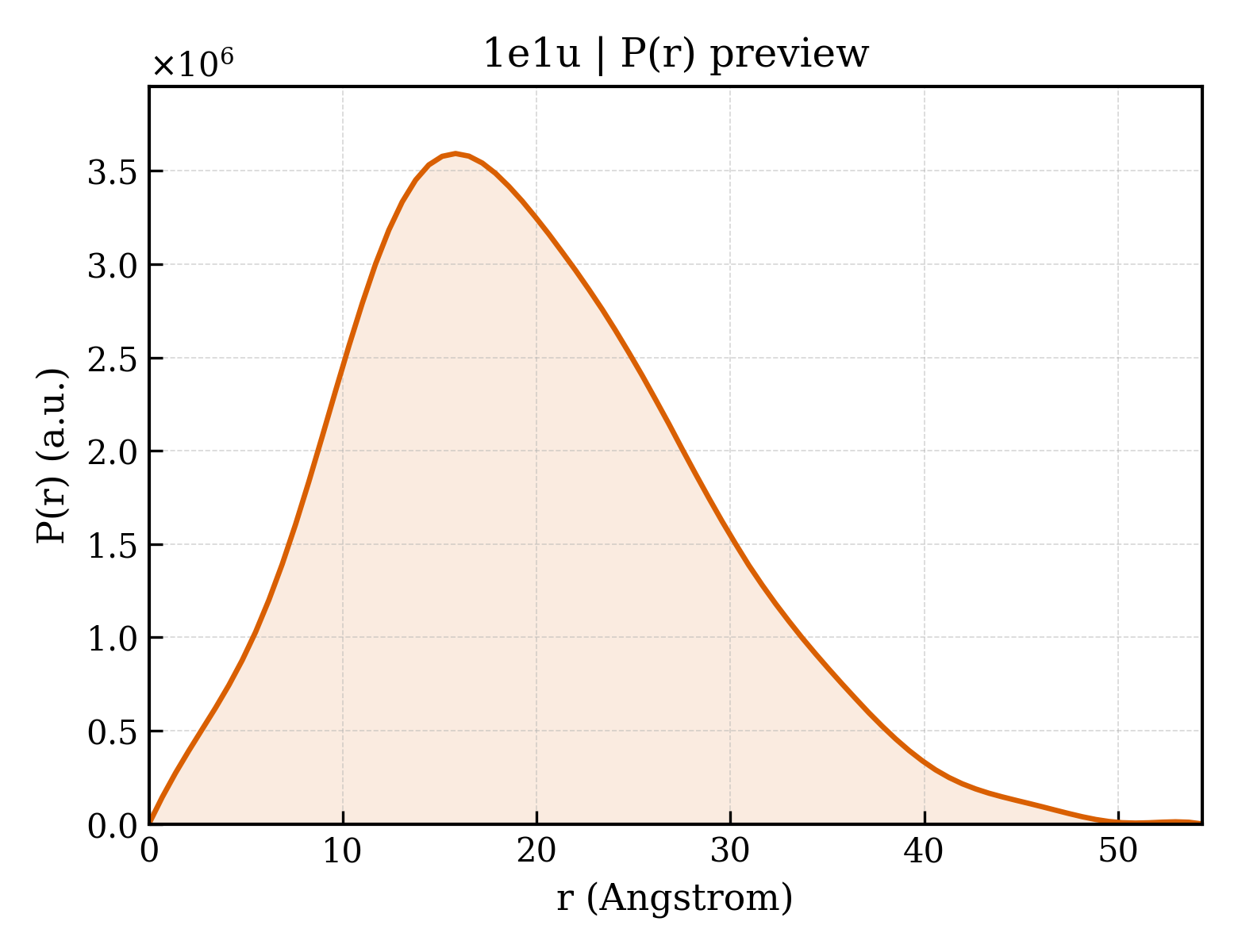

P(r) Distribution
1. Structure Basics
| entry_id | 1e1u |
| deposition_date | 2000-05-11 |
| title | Human prion protein variant R220K |
| keywords | PRION PROTEIN; PRION PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.09 Å |
| rg_electron | 14.78 Å |
| i0 | 980591000.00 |
| molecular_weight | 249940.0 kDa |
| excluded_volume | 305530 ų |
| envelope_volume | 29369 ų |
| shell_volume | 14904 ų |
| envelope_diameter | 58.7 Å |
| shell_rg | 22.77 Å |
| envelope_rg | 17.85 Å |
| shape_rg | 14.81 Å |
| total_rg | 14.81 Å |
| total_atoms | 33780 |
| n_residues | 2080 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 54.3 Å |
| rg_real | 15.13 Å |
| rg_real_error | 0.39 Å |
| i0_real | 9.8060e+08 |
| i0_real_error | 1.2370e+07 |
| rg_reciprocal | 15.13 Å |
| i0_reciprocal | 980600000.0000 |
| total_estimate | 0.8346 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.8 Å |
| skewness | 0.445 |
| kurtosis | -0.105 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 513200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.676; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.824; Smooth: 0.993 |
