1e20

The FMN binding protein AtHal3

Method: X-RAY DIFFRACTION Dmax: 61.2 Å Quality: GOOD

SAXS Profile

SAXS profile for 1e20

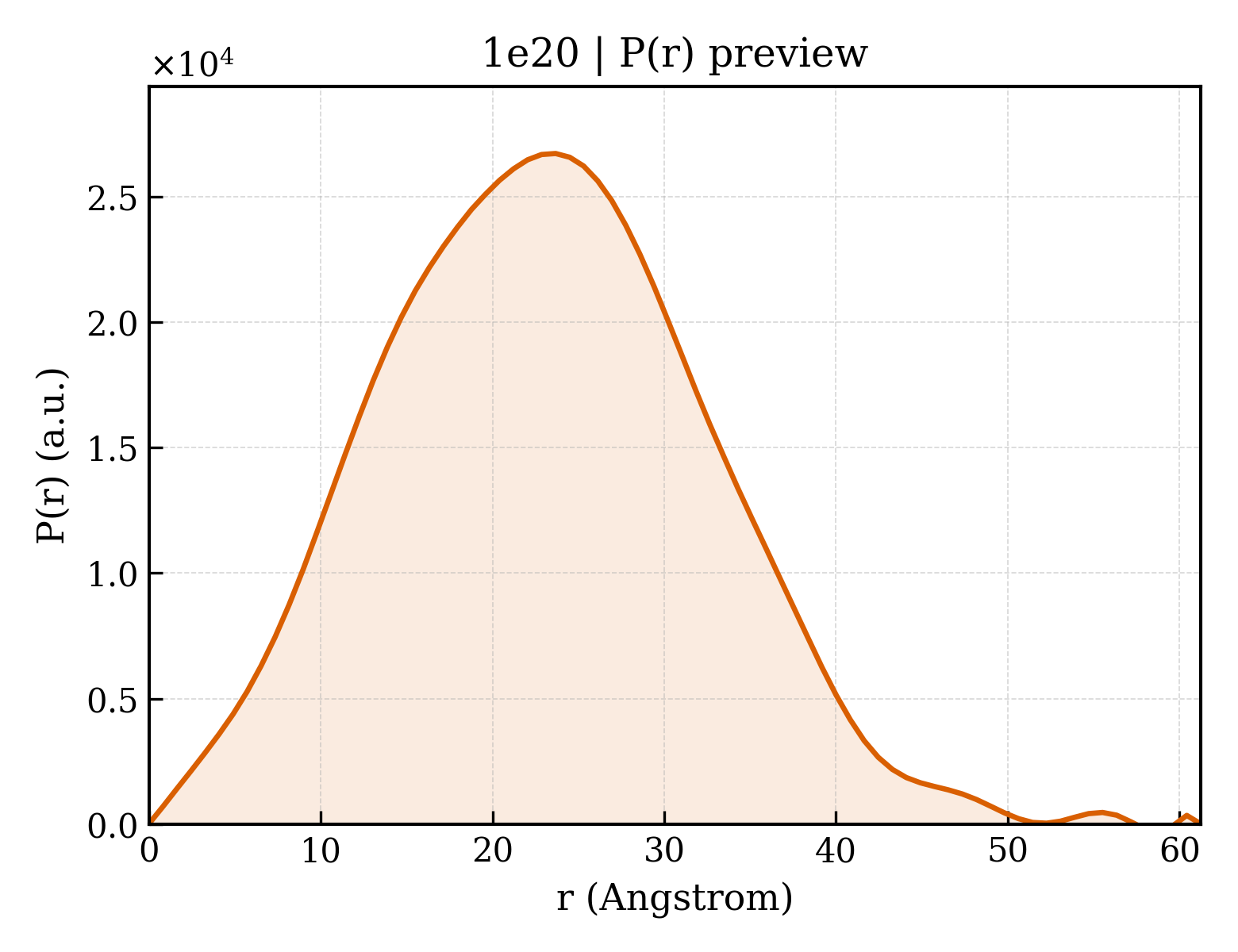

P(r) Distribution

P(r) distribution for 1e20

1. Structure Basics

entry_id1e20
deposition_date2000-05-12
titleThe FMN binding protein AtHal3
keywordsFLAVOPROTEIN, REGULATION, SIGNAL TRANSDUCTION, STRESS; FLAVOPROTEIN
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier17.61
rg_electron16.23
i08132010.00
molecular_weight21267.0 kDa
excluded_volume26826 ų
envelope_volume30401 ų
shell_volume15785 ų
envelope_diameter62.8
shell_rg22.34
envelope_rg16.70
shape_rg16.23
total_rg17.33
total_atoms1493
n_residues185
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax61.2
rg_real17.51
rg_real_error0.50
i0_real8.1320e+06
i0_real_error1.1420e+05
rg_reciprocal17.52
i0_reciprocal8132000.0000
total_estimate0.7739
solution_quality GOOD a GOOD solution
n_peaks3
r_peak_primary23.7
skewness0.189
kurtosis-0.202
angular_range— – 0.4500 −1
current_alpha0.0000
highest_alpha1357000.0000
n_real_points76
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.690; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (5)

6. Citations (1)

7. Files & Curves (10)
