SAXSdb — 1e2u

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HYDROXYLAMINE REDUCTASE

DESULFOVIBRIO VULGARIS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	IRON/SULFUR CLUSTER × 1 IRON/SULFUR/OXYGEN HYBRID CLUSTER × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HCP_DESVH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–553； UniProt 1–553

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1e2u
Deposition date deposition_date	2000-05-26
Structure title title	Low Temperature Structure of Hybrid Cluster Protein from Desulfovibrio vulgaris to 1.6A
Keywords keywords	OXIDOREDUCTASE, CUBANE, IRON SULFUR, FUSCOREDOXIN; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1e2u__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

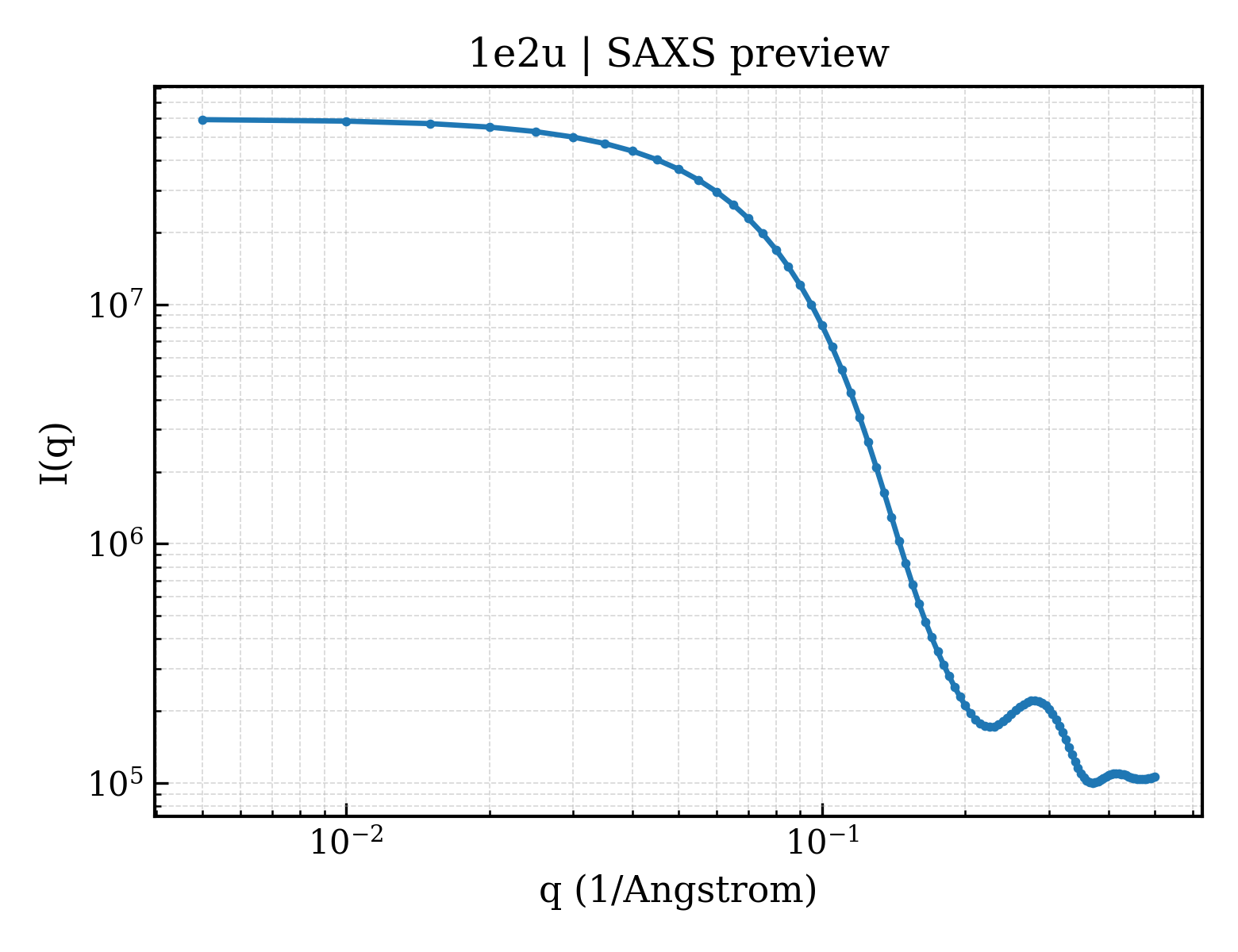

1e2u__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1e2u__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.00 Å
Rg (electron density)	23.19 Å
Total Rg	23.85 Å
Atom count	4235
Residues	552
Excluded volume	76104 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1e2u__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	HYDROXYLAMINE REDUCTASE
Molecular weight formula_weight	60074.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4874

MFCFQCQETAKNTGCTVKGMCGKPEETANLQDLLIFVLRGIAIYGEKLKELGQPDRSNDDFVLQGLFATITNANWDDARFEAMISEGLARRDKLRNAFLAVYKAKNGKDFSEPLPEAATWTGDSTAFAEKAKSVGILATENEDVRSLRELLIIGLKGVAAYAEHAAVLGFRKTEIDEFMLEALASTTKDLSVDEMVALVMKAGGMAVTTMALLDEANTTTYGNPEITQVNIGVGKNPGILISGHDLKDMAELLKQTEGTGVDVYTHGEMLPANYYPAFKKYPHFVGNYGGSWWQQNPEFESFNGPILLTTNCLVPLKKENTYLDRLYTTGVVGYEGAKHIADRPAGGAKDFSALIAQAKKCPPPVEIETGSIVGGFAHHQVLALADKVVEAVKSGAIKRFVVMAGCDGRQKSRSYYTEVAENLPKDTVILTAGCAKYRYNKLNLGDIGGIPRVLDAGQCNDSYSLAVIALKLKEVFGLDDINDLPVSYDIAWYEQKAVAVLLALLFLGVKGIRLGPTLPAFLSPNVAKVLVENFNIKPIGTVQDDIAAMMAGK

Source Source

Source organism organism	DESULFOVIBRIO VULGARIS
NCBI taxonomy ID ncbi_taxonomy_id	881
Host organism host_organism	DESULFOVIBRIO VULGARIS

Entity 2 Entity 2 non-polymer

Description description	IRON/SULFUR CLUSTER
Molecular weight formula_weight	351.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	IRON/SULFUR/OXYGEN HYBRID CLUSTER
Molecular weight formula_weight	367.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	630

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1e2ua_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.26 — Prismane protein-like
Superfamily Superfamily superfamily	e.26.1 — Prismane protein-like
Family Family family	e.26.1.1 — Hybrid cluster protein (prismane protein)

CATH v4.4 (4 domains)

Domain ID domain_id	1e2uA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1e2uA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1e2uA03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2030 —

Domain ID domain_id	1e2uA04
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2030 —

▶

Unit-cell length a length_a	63.630 Å
Unit-cell length b length_b	64.680 Å
Unit-cell length c length_c	152.290 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.1600
R_free r_free	0.1840
