1e2y

Tryparedoxin peroxidase from Crithidia fasciculata

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRYPAREDOXIN PEROXIDASE

CRITHIDIA FASCICULATA

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 10	CHLORIDE ION × 10 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9TZX2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–188； UniProt 1–188 Author chain B； PDBConstruct 1–188； UniProt 1–188 Author chain C； PDBConstruct 1–188； UniProt 1–188 Author chain D； PDBConstruct 1–188； UniProt 1–188 Author chain E； PDBConstruct 1–188； UniProt 1–188 Author chain F； PDBConstruct 1–188； UniProt 1–188 Author chain G； PDBConstruct 1–188； UniProt 1–188 Author chain H； PDBConstruct 1–188； UniProt 1–188 Author chain I； PDBConstruct 1–188； UniProt 1–188 Author chain J； PDBConstruct 1–188； UniProt 1–188

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1e2y
Deposition date deposition_date	2000-05-30
Structure title title	Tryparedoxin peroxidase from Crithidia fasciculata
Keywords keywords	2-CYS PEROXIREDOXIN, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1e2y__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1e2y__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

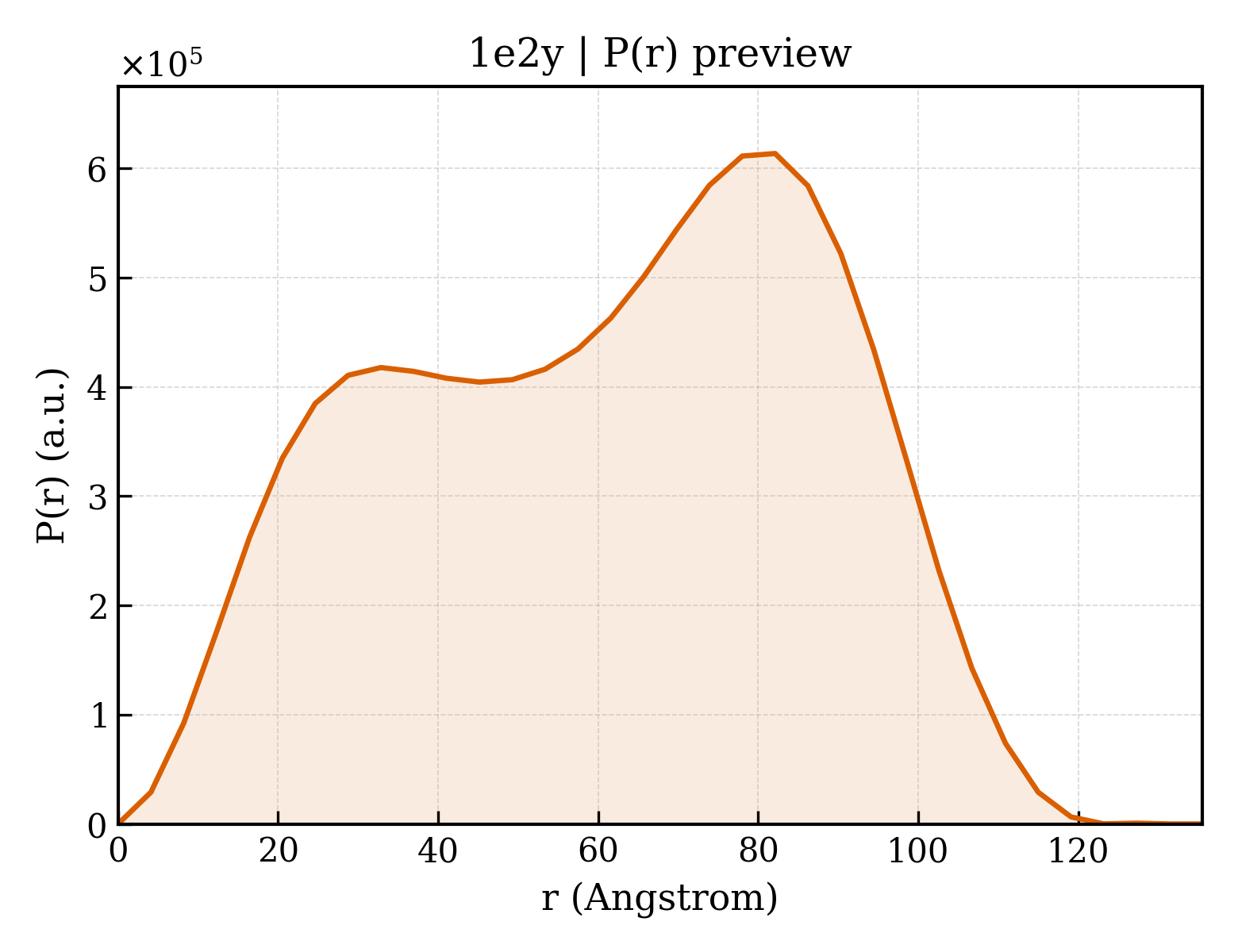

1e2y__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	47.52 Å
Rg (electron density)	46.81 Å
Total Rg	47.11 Å
Atom count	13189
Residues	1618
Excluded volume	237310 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1e2y__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	TRYPAREDOXIN PEROXIDASE
Molecular weight formula_weight	21313.4 kDa
Source method src_method	man
Copy count entity_count	10

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J
Atom count atom_count	13211

MSCGAAKLNHPAPEFDDMALMPNGTFKKVSLSSYKGKYVVLFFYPMDFTFVCPTEIIQFSDDAKRFAEINTEVISCSCDSEYSHLQWTSVDRKKGGLGPMAIPMLADKTKAIARAYGVLDEDSGVAYRGVFIIDPNGKLRQIIINDMPIGRNVEEVIRLVEALQFVEEHGEVCPANWKKGDAKKKEGH

Source Source

Source organism organism	CRITHIDIA FASCICULATA
NCBI taxonomy ID ncbi_taxonomy_id	5656
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	22

▼

6. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (10 domains)

Domain ID domain_id	d1e2ya_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.10 — Glutathione peroxidase-like

Domain ID domain_id	d1e2yb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.10 — Glutathione peroxidase-like

Domain ID domain_id	d1e2yc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.10 — Glutathione peroxidase-like

Domain ID domain_id	d1e2yd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.10 — Glutathione peroxidase-like

Domain ID domain_id	d1e2ye_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.10 — Glutathione peroxidase-like

Domain ID domain_id	d1e2yf_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.10 — Glutathione peroxidase-like

Domain ID domain_id	d1e2yg_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.10 — Glutathione peroxidase-like

Domain ID domain_id	d1e2yh_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.10 — Glutathione peroxidase-like

Domain ID domain_id	d1e2yi_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.10 — Glutathione peroxidase-like

Domain ID domain_id	d1e2yj_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.10 — Glutathione peroxidase-like

CATH v4.4 (10 domains)

Domain ID domain_id	1e2yA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	1e2yB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	1e2yC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	1e2yD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	1e2yE00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	1e2yF00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	1e2yG00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	1e2yH00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	1e2yI00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	1e2yJ00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

▶

Unit-cell length a length_a	123.800 Å
Unit-cell length b length_b	97.200 Å
Unit-cell length c length_c	133.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.10 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	20

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	21.000 Å
R factor r_factor	0.2730
R_work r_work	0.2730
R_free r_free	0.2860
