1e3k

Human Progesteron Receptor Ligand Binding Domain in complex with the ligand metribolone (R1881)

Method: X-RAY DIFFRACTION D_max: 87.3 Å Quality: EXCELLENT

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1e3k
deposition_date	2000-06-19
title	Human Progesteron Receptor Ligand Binding Domain in complex with the ligand metribolone (R1881)
keywords	HUMAN PROGESTERONE RECEPTOR, LIGAND BINDING DOMAIN; HUMAN PROGESTERONE RECEPTOR
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.72 Å
rg_electron	26.78 Å
i0	48788700.00
molecular_weight	57877.0 kDa
excluded_volume	74060 Å³
envelope_volume	89098 Å³
shell_volume	28113 Å³
envelope_diameter	97.2 Å
shell_rg	33.58 Å
envelope_rg	26.80 Å
shape_rg	26.77 Å
total_rg	27.59 Å
total_atoms	4069
n_residues	500
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

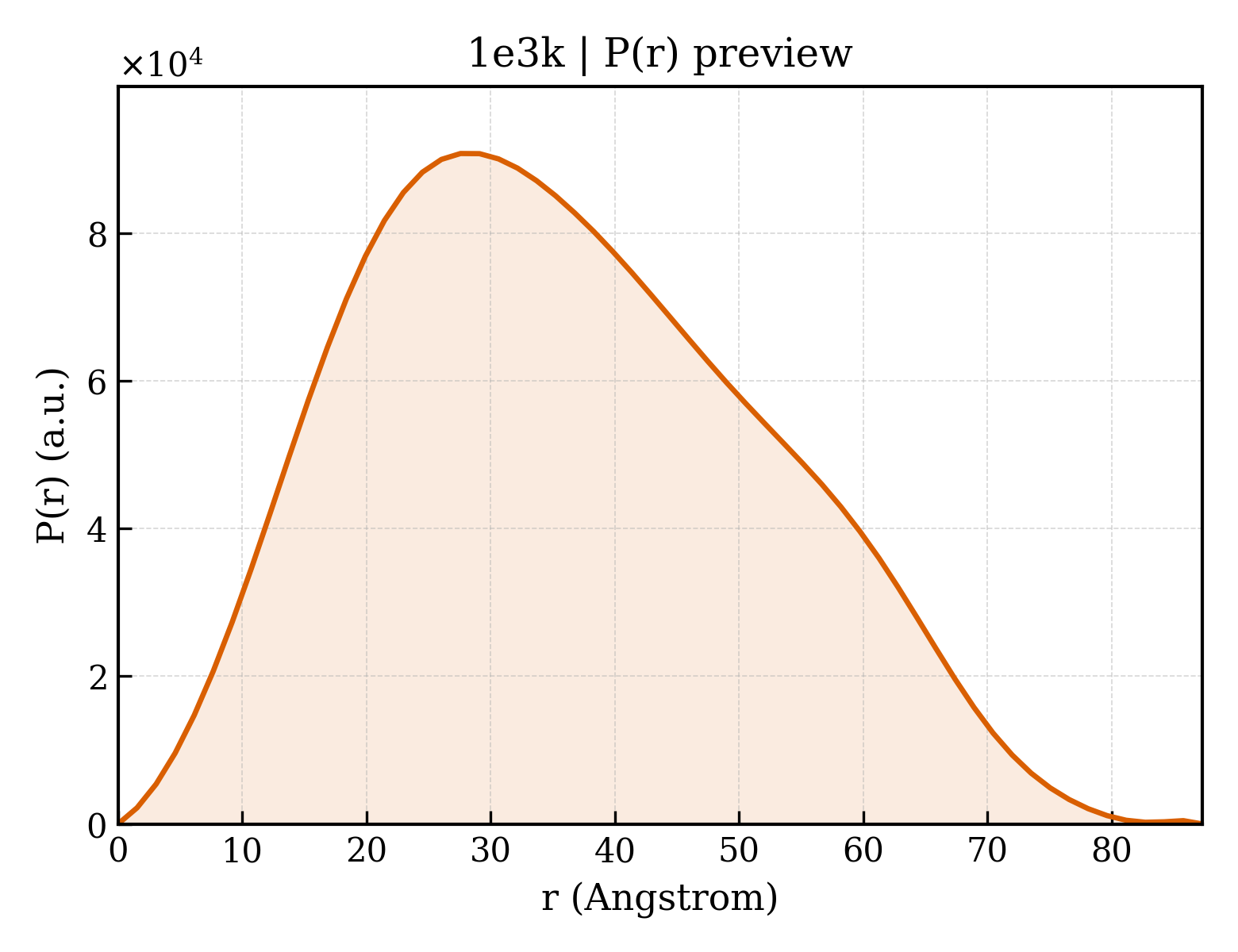

3. P(r) Analysis (GNOM)

dmax	87.3 Å
rg_real	27.72 Å
rg_real_error	0.54 Å
i0_real	4.8790e+07
i0_real_error	6.9510e+05
rg_reciprocal	27.72 Å
i0_reciprocal	48790000.0000
total_estimate	0.9057
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	27.6 Å
skewness	0.283
kurtosis	-0.625
angular_range	— – 0.2850 Å⁻¹
current_alpha	0.0000
highest_alpha	12310000.0000
n_real_points	58
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.938; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.974

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	PROGESTERONE RECEPTOR
formula_weight	29738.8 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	4070

SPGQDIQLIPPLINLLMSIEPDVIYAGHDNTKPDTSSSLLTSLNQLGERQLLSVVKWSKSLPGFRNLHIDDQITLIQYSWMSLMVFGLGWRSYKHVSGQMLYFAPDLILNEQRMKESSFYSLCLTMWQIPQEFVKLQVSQEEFLCMKVLLLLNTIPLEGLRSQTQFEEMRSSYIRELIKAIGLRQKGVVSSSQRFYQLTKLLDNLHDLVKQLHLYCLNTFIQSRALSVEFPEMMSEVIAAQLPKILAGMVKPLLFHKK

Source

organism	HOMO SAPIENS
common_name	HUMAN
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	(17BETA)-17-HYDROXY-17-METHYLESTRA-4,9,11-TRIEN-3-ONE
formula_weight	284.4 kDa
src_method	syn
entity_count	2

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	1

▶

6. Citations (1)

▶

length_a	58.402 Å
length_b	65.011 Å
length_c	71.181 Å
angle_alpha	90.00 °
angle_beta	95.65 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.800 Å
resolution_low	12.500 Å
r_factor	0.2400
r_work	0.2170
r_free	0.3430

fit	/app/data/saxs_computation/e3/1e3k/1e3k.fit
pddf	/app/data/pr_computation/e3/1e3k/1e3k.pr.out
profile	/app/data/saxs_computation/e3/1e3k/1e3k.dat
