FtsA (apo form) from Thermotoga maritima

Method: X-RAY DIFFRACTION D_max: 90.5 Å Quality: GOOD

SAXS Profile

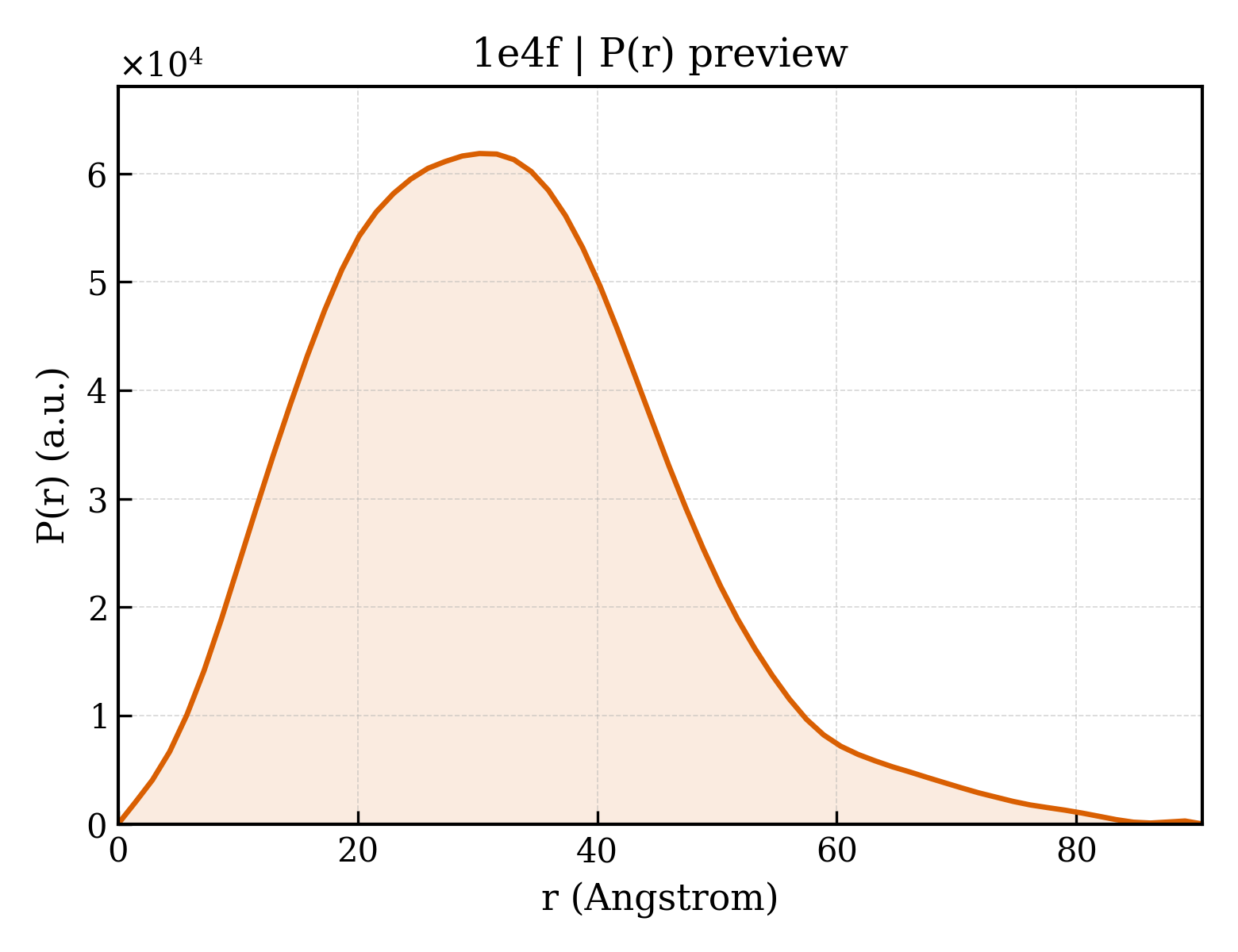

P(r) Distribution

▼

1. Structure Basics

entry_id	1e4f
deposition_date	2000-07-03
title	FtsA (apo form) from Thermotoga maritima
keywords	BACTERIAL CELL DIVISION, ACTIN FAMILY; BACTERIAL CELL DIVISION
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	24.29 Å
rg_electron	23.26 Å
i0	28244100.00
molecular_weight	42172.0 kDa
excluded_volume	53453 Å³
envelope_volume	64244 Å³
shell_volume	24082 Å³
envelope_diameter	92.2 Å
shell_rg	29.45 Å
envelope_rg	23.65 Å
shape_rg	23.23 Å
total_rg	24.15 Å
total_atoms	2974
n_residues	378
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	90.5 Å
rg_real	24.38 Å
rg_real_error	1.01 Å
i0_real	2.8240e+07
i0_real_error	4.6080e+05
rg_reciprocal	24.35 Å
i0_reciprocal	28240000.0000
total_estimate	0.8167
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	30.2 Å
skewness	0.526
kurtosis	0.278
angular_range	— – 0.3250 Å⁻¹
current_alpha	0.0000
highest_alpha	7665000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.612; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.804; Smooth: 0.974

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	47.620 Å
length_b	53.520 Å
length_c	78.310 Å
angle_alpha	90.00 °
angle_beta	93.44 °
angle_gamma	90.00 °
z_pdb	2

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	1.900 Å
resolution_low	30.000 Å
r_factor	0.2210
r_work	0.2210
r_free	0.2490

description	CELL DIVISION PROTEIN FTSA
formula_weight	47075.7 kDa
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	T
atom_count	3115

FtsA (apo form) from Thermotoga maritima

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	THERMOTOGA MARITIMA
ncbi_taxonomy_id	2336
host_organism	ESCHERICHIA COLI BL21(DE3)

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	141

fit	/app/data/saxs_computation/e4/1e4f/1e4f.fit
pddf	/app/data/pr_computation/e4/1e4f/1e4f.pr.out
profile	/app/data/saxs_computation/e4/1e4f/1e4f.dat
