1e4j
Crystal structure of the soluble human Fc-gamma Receptor III
SAXS Profile

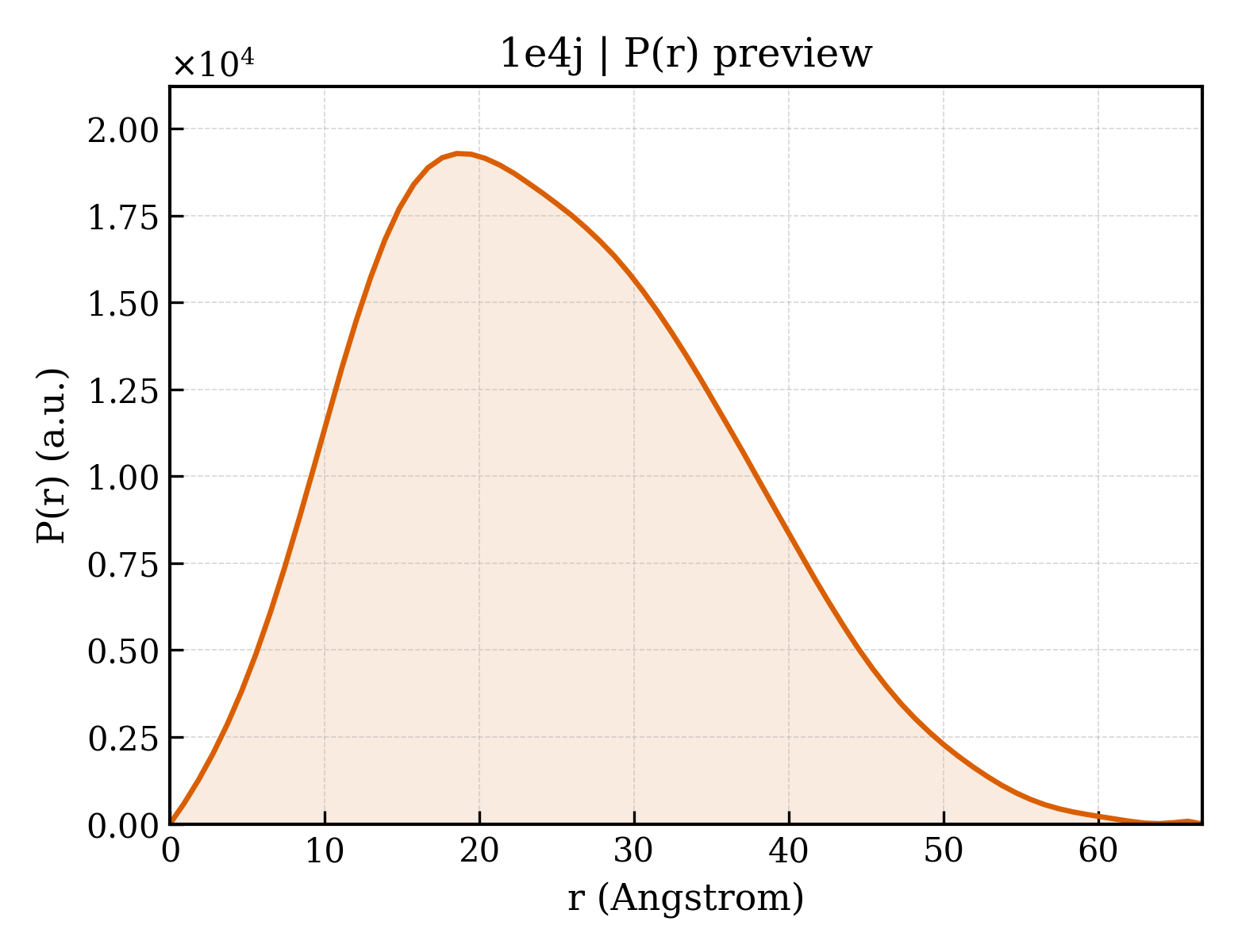

P(r) Distribution
1. Structure Basics
| entry_id | 1e4j |
| deposition_date | 2000-07-07 |
| title | Crystal structure of the soluble human Fc-gamma Receptor III |
| keywords | IMMUNE SYSTEM, IGG, FC, RECEPTOR, CD16, GAMMA; IMMUNE SYSTEM |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.20 Å |
| rg_electron | 18.37 Å |
| i0 | 7231730.00 |
| molecular_weight | 19462.0 kDa |
| excluded_volume | 24258 ų |
| envelope_volume | 29770 ų |
| shell_volume | 14393 ų |
| envelope_diameter | 66.7 Å |
| shell_rg | 23.45 Å |
| envelope_rg | 18.68 Å |
| shape_rg | 18.33 Å |
| total_rg | 19.34 Å |
| total_atoms | 1376 |
| n_residues | 171 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 66.7 Å |
| rg_real | 19.25 Å |
| rg_real_error | 0.61 Å |
| i0_real | 7.2320e+06 |
| i0_real_error | 1.1080e+05 |
| rg_reciprocal | 19.24 Å |
| i0_reciprocal | 7232000.0000 |
| total_estimate | 0.8624 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.5 Å |
| skewness | 0.379 |
| kurtosis | -0.360 |
| angular_range | — – 0.4150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2191000.0000 |
| n_real_points | 73 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.810; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.835; Smooth: 0.942 |
