1e4q
Solution structure of the human defensin hBD-2

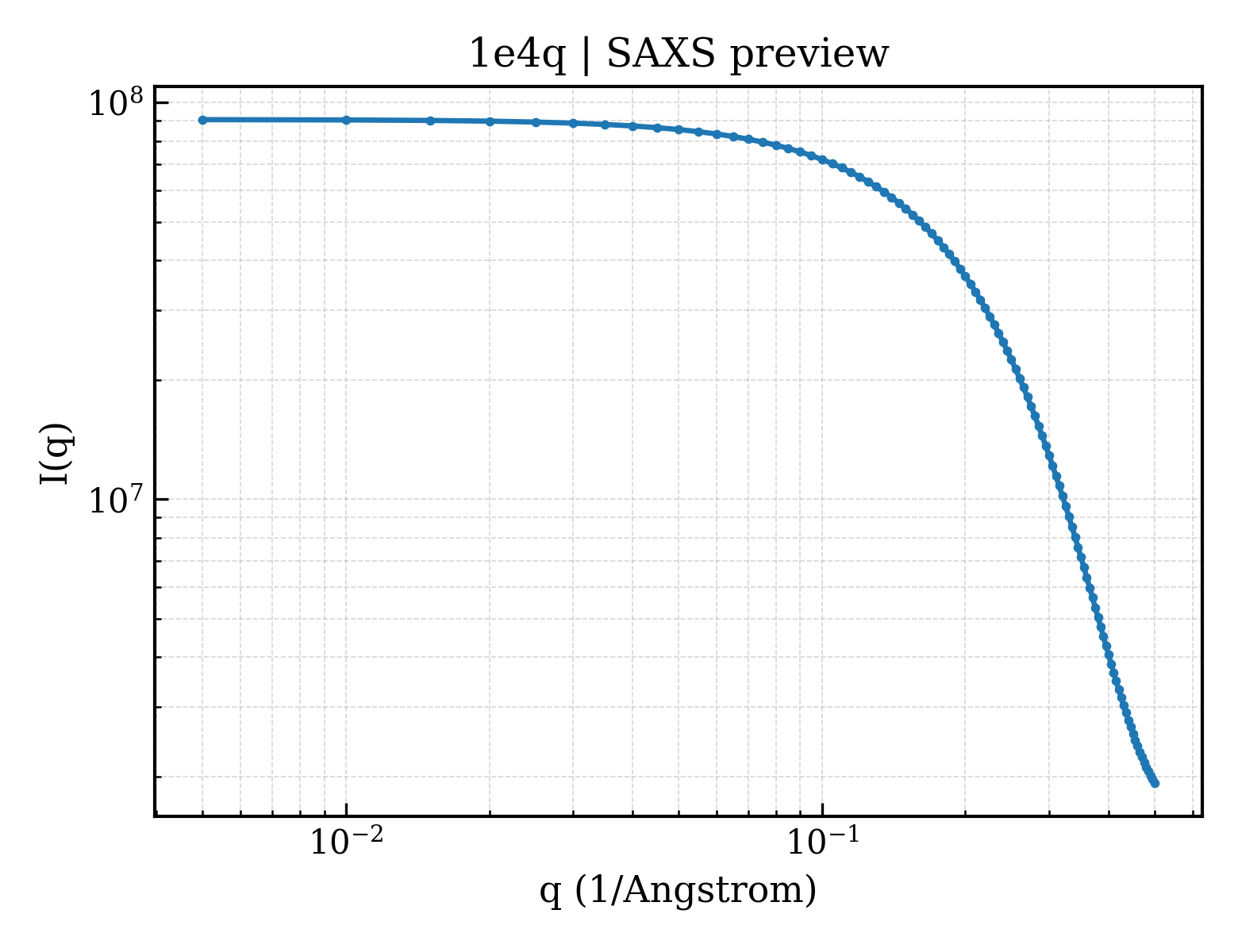

SAXS Profile

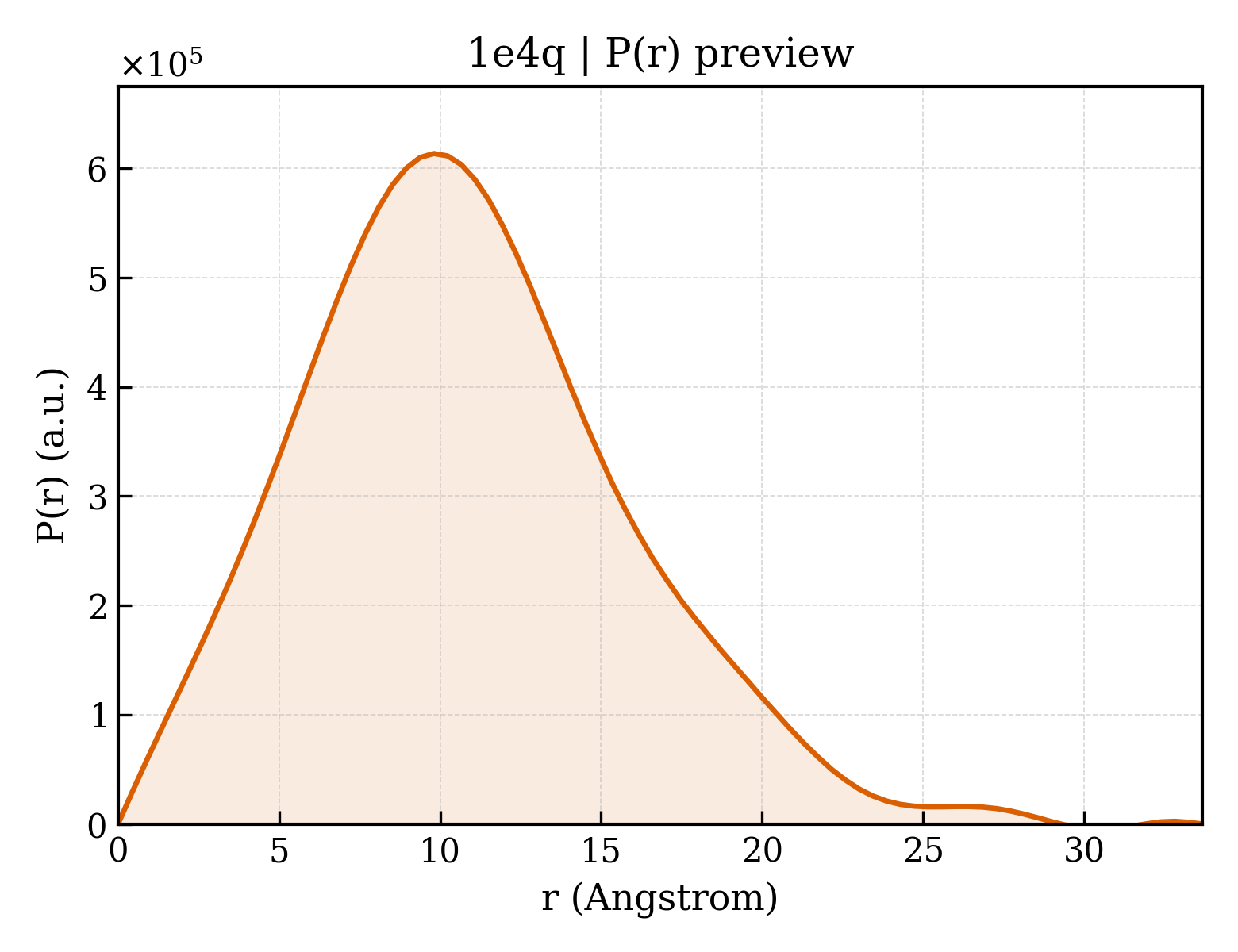

P(r) Distribution
1. Structure Basics
| entry_id | 1e4q |
| deposition_date | 2000-07-12 |
| title | Solution structure of the human defensin hBD-2 |
| keywords | DEFENSIN, HUMAN; DEFENSIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 8.33 Å |
| rg_electron | 9.19 Å |
| i0 | 90662000.00 |
| molecular_weight | 79979.0 kDa |
| excluded_volume | 100590 ų |
| envelope_volume | 8751 ų |
| shell_volume | 7324 ų |
| envelope_diameter | 36.7 Å |
| shell_rg | 15.82 Å |
| envelope_rg | 11.16 Å |
| shape_rg | 9.20 Å |
| total_rg | 9.34 Å |
| total_atoms | 11300 |
| n_residues | 740 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 33.7 Å |
| rg_real | 8.36 Å |
| rg_real_error | 0.44 Å |
| i0_real | 9.0660e+07 |
| i0_real_error | 1.0500e+06 |
| rg_reciprocal | 8.36 Å |
| i0_reciprocal | 90660000.0000 |
| total_estimate | 0.7611 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 9.8 Å |
| skewness | 0.446 |
| kurtosis | 0.049 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 15330.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.442; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.606; Smooth: 0.965 |
