1e4r
Solution structure of the mouse defensin mBD-8

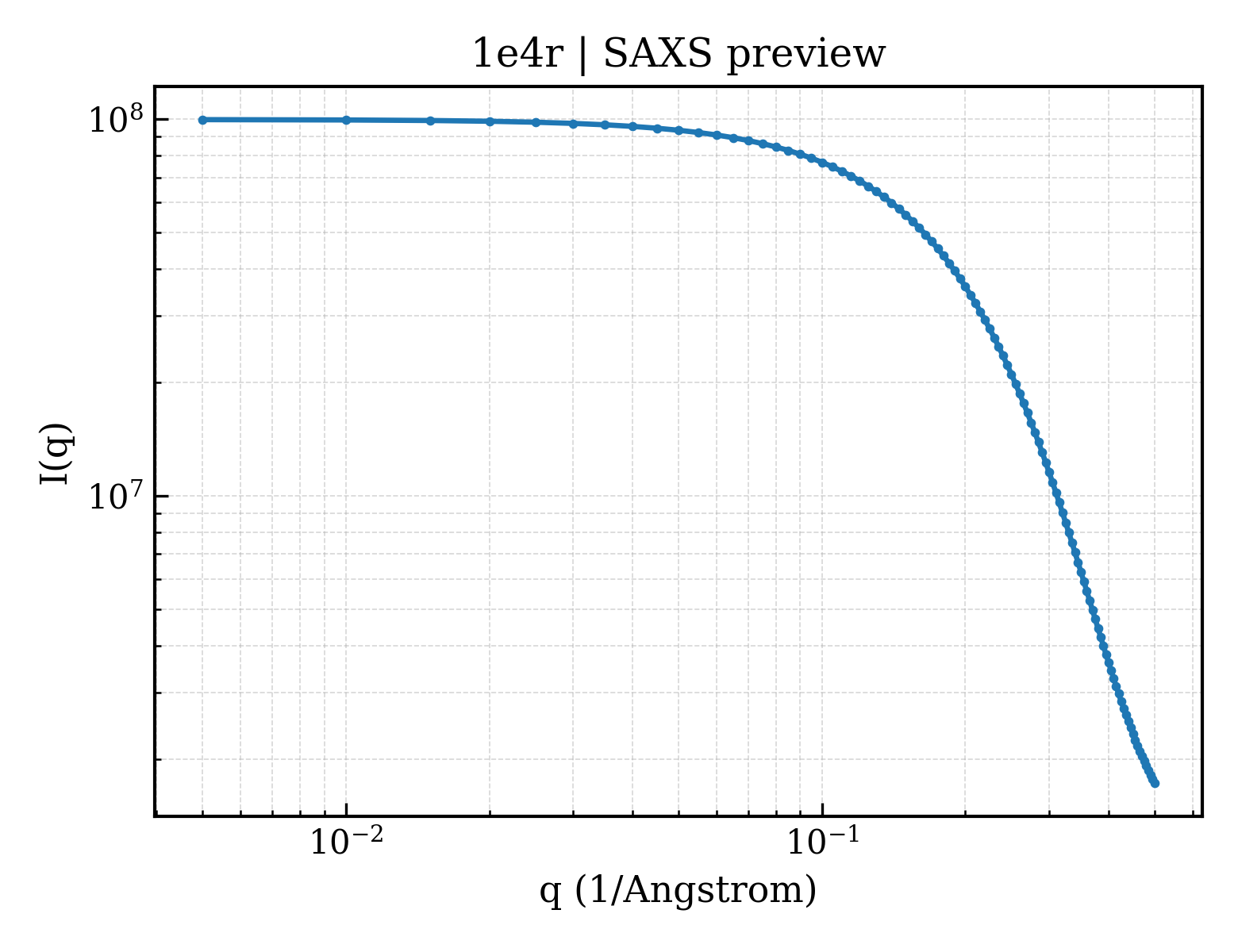

SAXS Profile

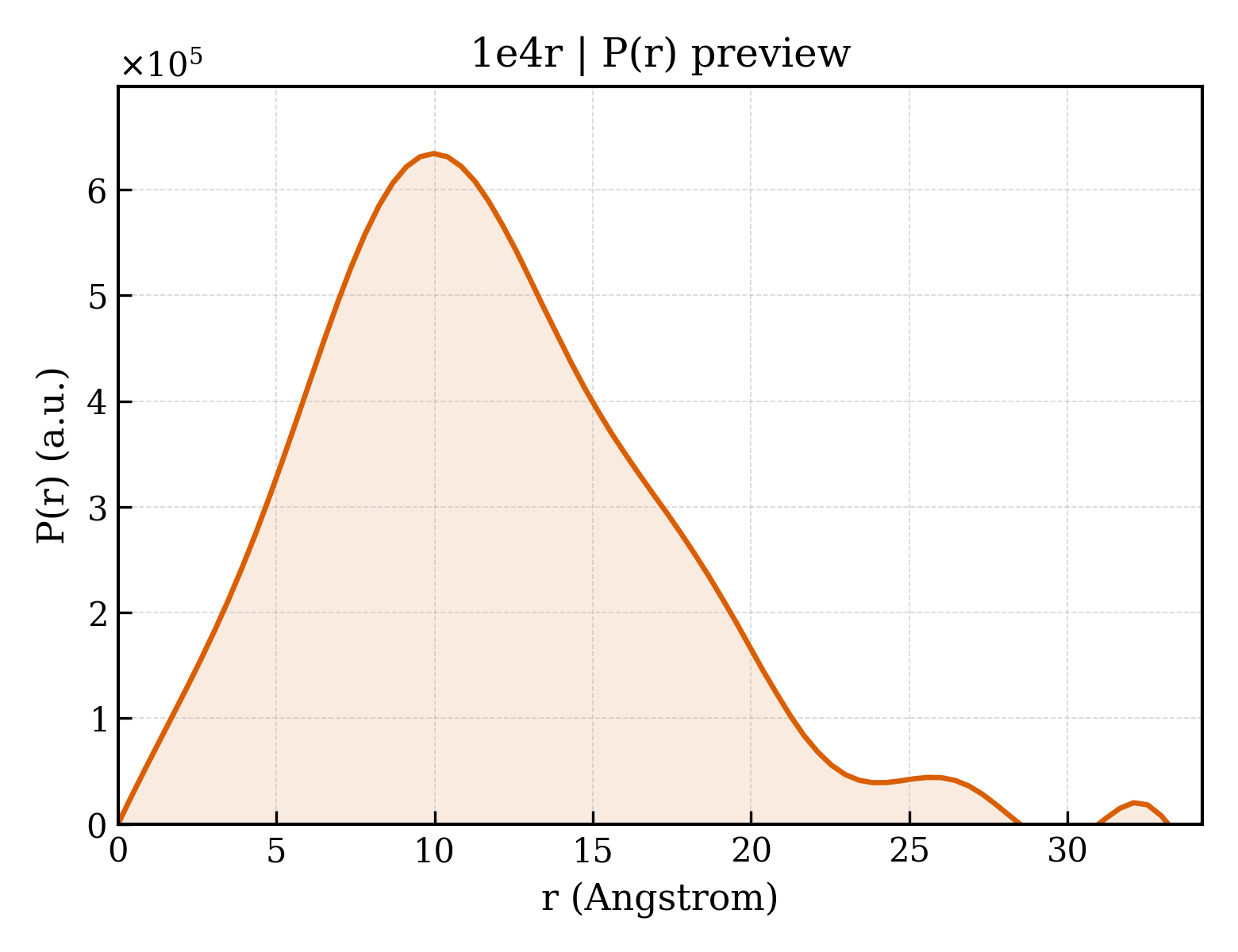

P(r) Distribution
1. Structure Basics
| entry_id | 1e4r |
| deposition_date | 2000-07-12 |
| title | Solution structure of the mouse defensin mBD-8 |
| keywords | DEFENSIN, MOUSE; DEFENSIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 8.85 Å |
| rg_electron | 9.45 Å |
| i0 | 99727300.00 |
| molecular_weight | 76952.0 kDa |
| excluded_volume | 93996 ų |
| envelope_volume | 10497 ų |
| shell_volume | 8131 ų |
| envelope_diameter | 40.2 Å |
| shell_rg | 16.76 Å |
| envelope_rg | 11.98 Å |
| shape_rg | 9.51 Å |
| total_rg | 9.49 Å |
| total_atoms | 10580 |
| n_residues | 700 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 34.3 Å |
| rg_real | 8.88 Å |
| rg_real_error | 0.45 Å |
| i0_real | 9.9730e+07 |
| i0_real_error | 9.7310e+05 |
| rg_reciprocal | 8.88 Å |
| i0_reciprocal | 99730000.0000 |
| total_estimate | 0.5290 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 10.0 Å |
| skewness | 0.440 |
| kurtosis | -0.041 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 23170.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.476; Stabil: 0.995; Sysdev: 0.256; Positv: 1.000; Valcen: 0.689; Smooth: 0.000 |
