1e4s
Solution structure of the human defensin hBD-1

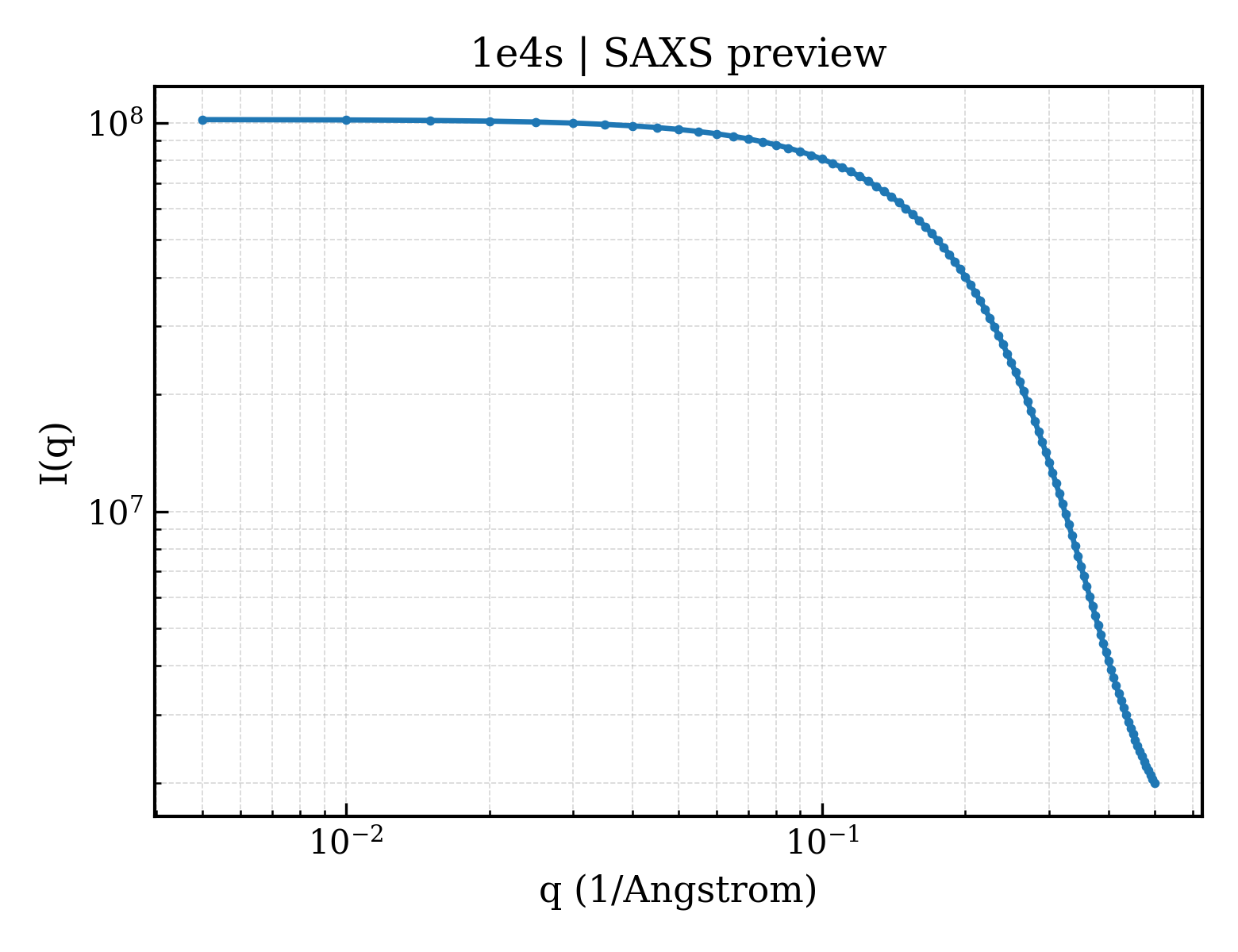

SAXS Profile

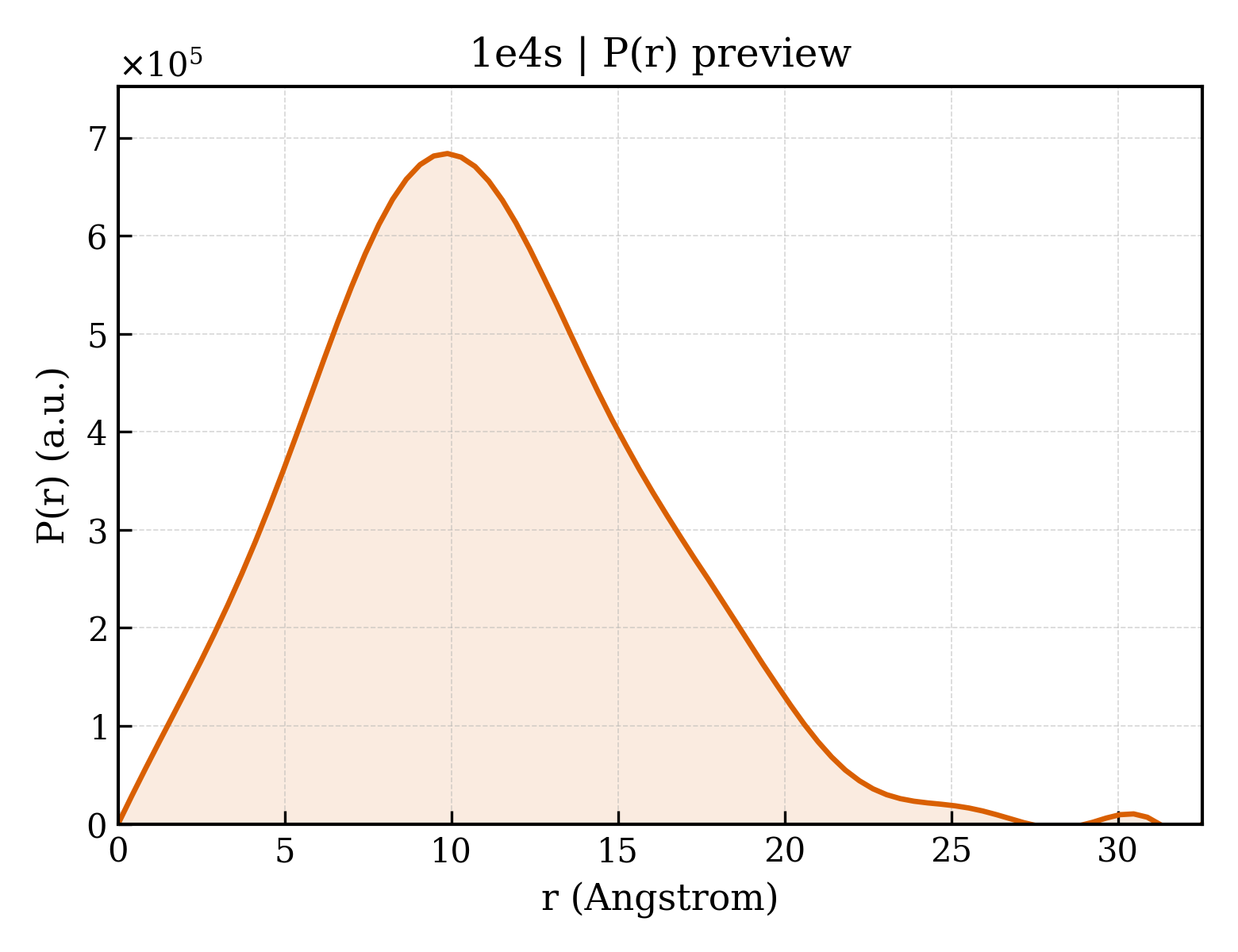

P(r) Distribution
1. Structure Basics
| entry_id | 1e4s |
| deposition_date | 2000-07-12 |
| title | Solution structure of the human defensin hBD-1 |
| keywords | DEFENSIN, HUMAN; DEFENSIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 8.38 Å |
| rg_electron | 9.11 Å |
| i0 | 101874000.00 |
| molecular_weight | 78772.0 kDa |
| excluded_volume | 96198 ų |
| envelope_volume | 8806 ų |
| shell_volume | 7366 ų |
| envelope_diameter | 37.3 Å |
| shell_rg | 15.89 Å |
| envelope_rg | 11.16 Å |
| shape_rg | 9.18 Å |
| total_rg | 9.12 Å |
| total_atoms | 10620 |
| n_residues | 720 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 32.5 Å |
| rg_real | 8.37 Å |
| rg_real_error | 0.41 Å |
| i0_real | 1.0190e+08 |
| i0_real_error | 1.1340e+06 |
| rg_reciprocal | 8.37 Å |
| i0_reciprocal | 101900000.0000 |
| total_estimate | 0.7155 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 9.9 Å |
| skewness | 0.303 |
| kurtosis | -0.335 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 17440.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.537; Stabil: 0.976; Sysdev: 1.000; Positv: 1.000; Valcen: 0.759; Smooth: 0.000 |
