1e4u
N-terminal RING finger domain of human NOT-4

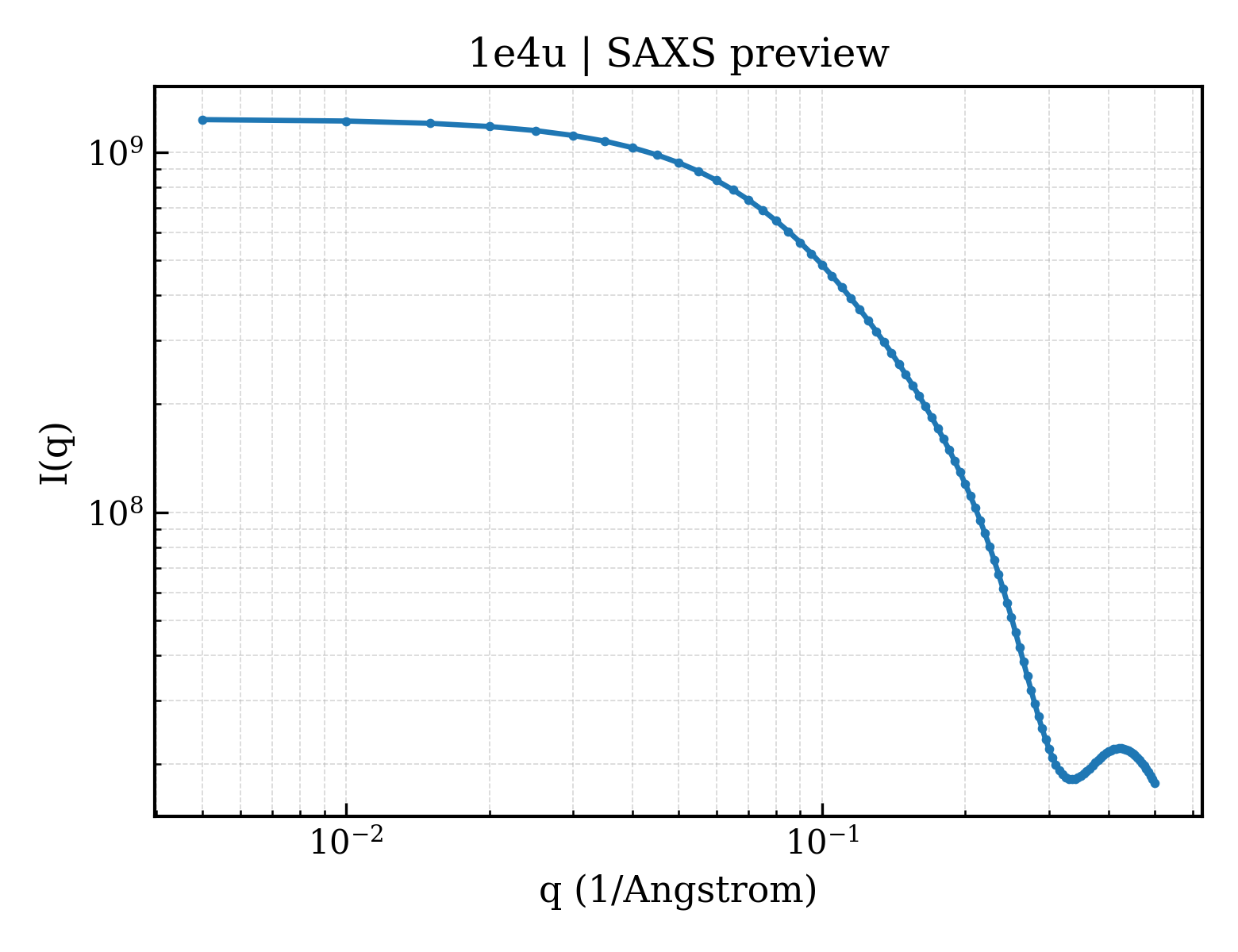

SAXS Profile

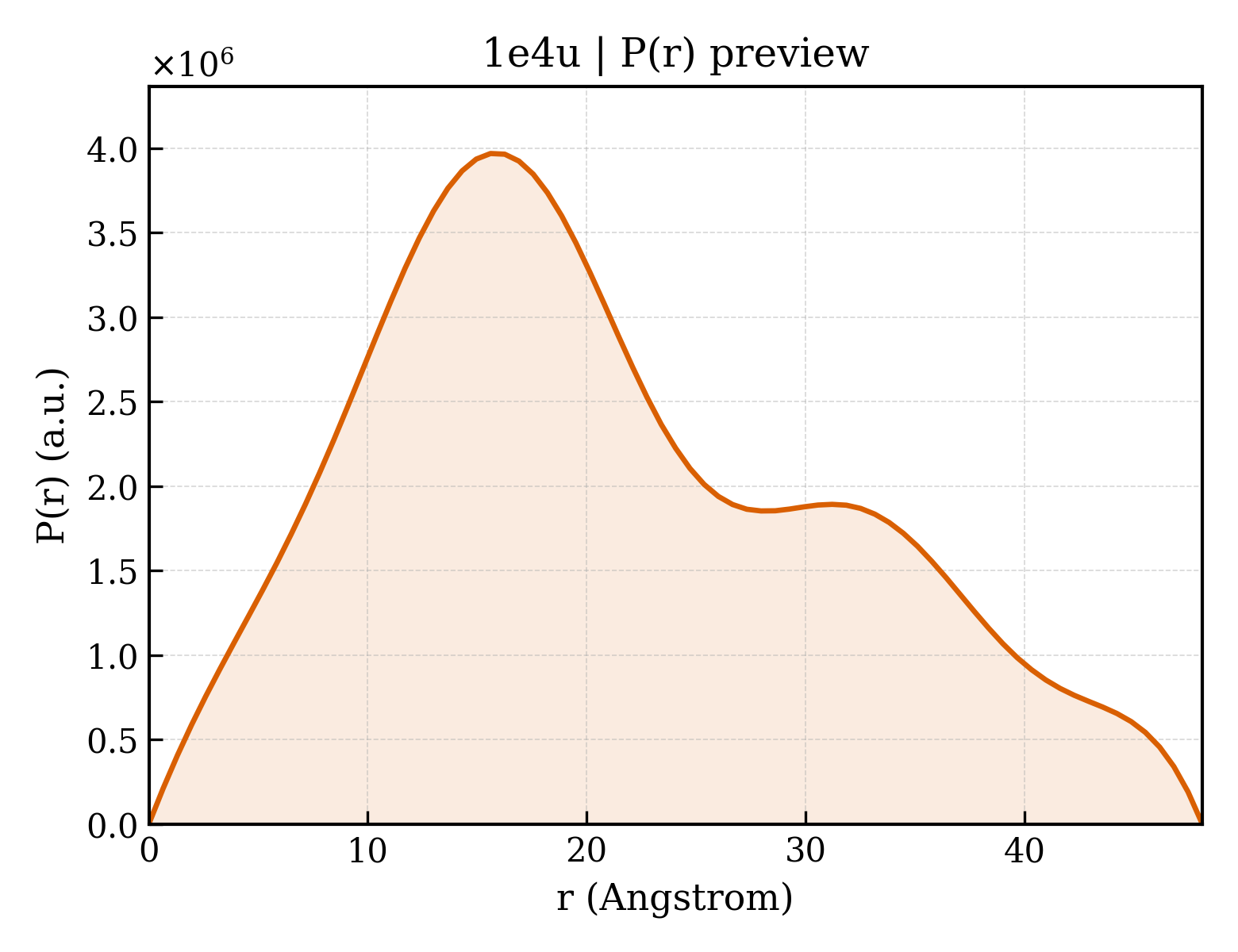

P(r) Distribution
1. Structure Basics
| entry_id | 1e4u |
| deposition_date | 2000-07-12 |
| title | N-terminal RING finger domain of human NOT-4 |
| keywords | GENE REGULATION, TRANSCRIPTIONAL CONTROL; GENE REGULATION |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.17 Å |
| rg_electron | 18.60 Å |
| i0 | 1234990000.00 |
| molecular_weight | 277060.0 kDa |
| excluded_volume | 337500 ų |
| envelope_volume | 80783 ų |
| shell_volume | 25074 ų |
| envelope_diameter | 97.8 Å |
| shell_rg | 34.24 Å |
| envelope_rg | 28.83 Å |
| shape_rg | 18.61 Å |
| total_rg | 18.97 Å |
| total_atoms | 36930 |
| n_residues | 2340 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 48.1 Å |
| rg_real | 16.54 Å |
| rg_real_error | 0.12 Å |
| i0_real | 1.1680e+09 |
| i0_real_error | 1.0750e+07 |
| rg_reciprocal | 18.74 Å |
| i0_reciprocal | 1235000000.0000 |
| total_estimate | 0.6423 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 15.6 Å |
| skewness | 0.446 |
| kurtosis | -0.588 |
| angular_range | — – 0.4400 Å−1 |
| current_alpha | 3.0820 |
| highest_alpha | 149500.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.029; Oscil: 0.850; Stabil: 0.983; Sysdev: 0.000; Positv: 1.000; Valcen: 0.871; Smooth: 0.000 |
