1e52
Solution structure of Escherichia coli UvrB C-terminal domain

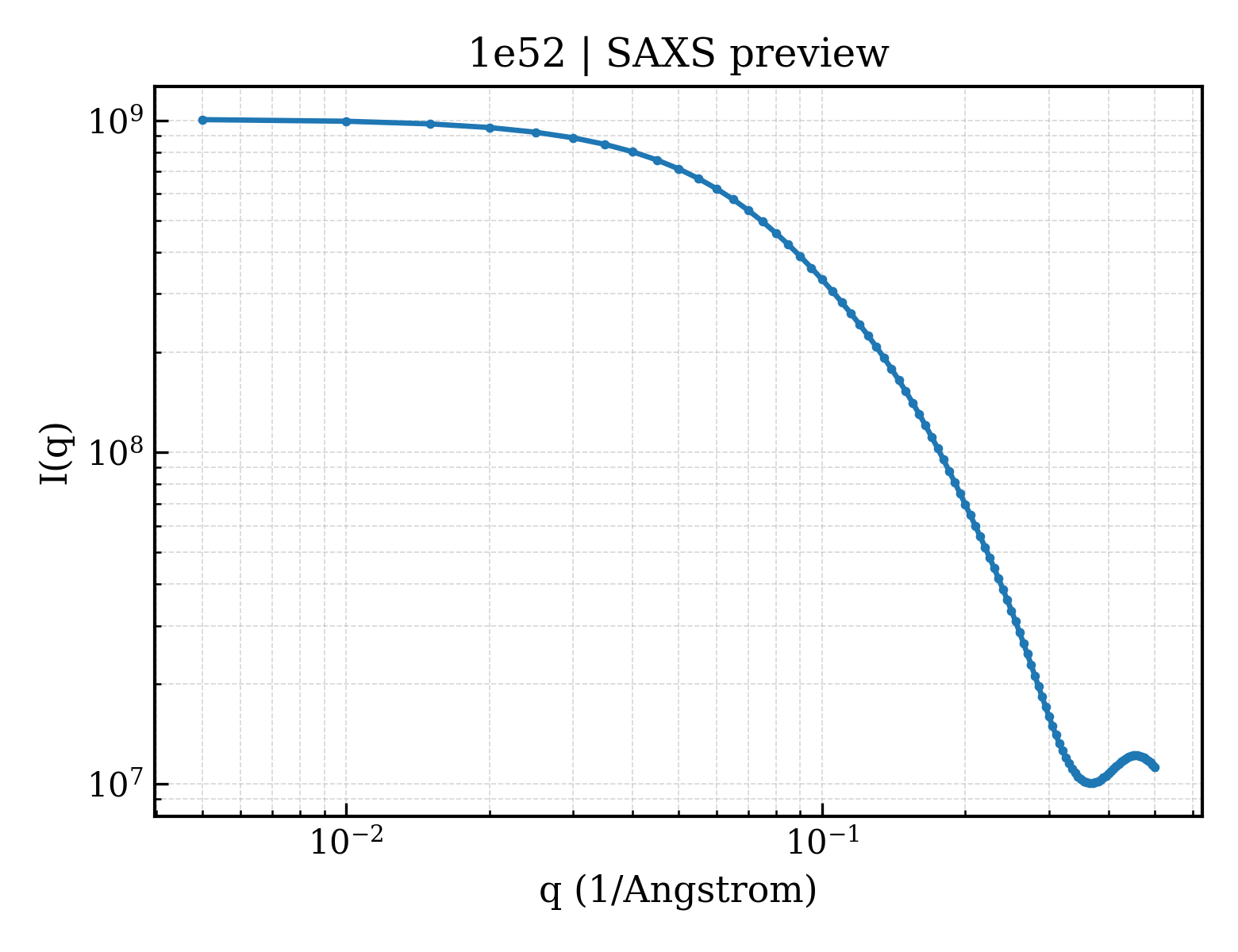

SAXS Profile

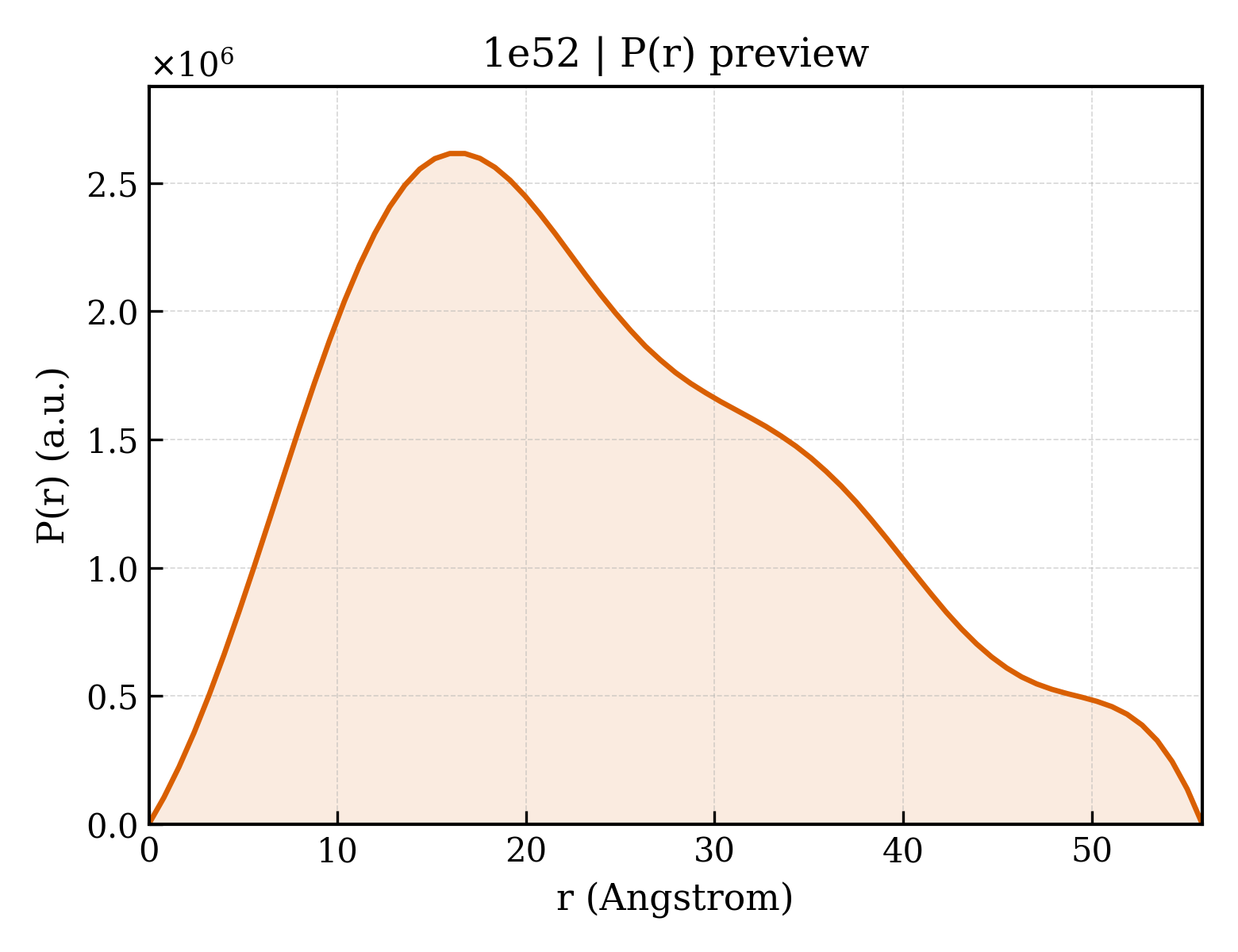

P(r) Distribution
1. Structure Basics
| entry_id | 1e52 |
| deposition_date | 2000-07-14 |
| title | Solution structure of Escherichia coli UvrB C-terminal domain |
| keywords | DNA EXCISION REPAIR, UVRB, DNA REPAIR, UVRC BINDING DOMAIN; DNA EXCISION REPAIR |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.49 Å |
| rg_electron | 21.23 Å |
| i0 | 1008530000.00 |
| molecular_weight | 259130.0 kDa |
| excluded_volume | 320480 ų |
| envelope_volume | 61542 ų |
| shell_volume | 20285 ų |
| envelope_diameter | 105.1 Å |
| shell_rg | 32.47 Å |
| envelope_rg | 29.18 Å |
| shape_rg | 21.18 Å |
| total_rg | 21.63 Å |
| total_atoms | 35840 |
| n_residues | 2240 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 55.9 Å |
| rg_real | 18.83 Å |
| rg_real_error | 0.13 Å |
| i0_real | 9.6080e+08 |
| i0_real_error | 9.1230e+06 |
| rg_reciprocal | 20.93 Å |
| i0_reciprocal | 1008000000.0000 |
| total_estimate | 0.6578 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 0 |
| r_peak_primary | — Å |
| skewness | 0.468 |
| kurtosis | -0.534 |
| angular_range | — – 0.3900 Å−1 |
| current_alpha | 2.4530 |
| highest_alpha | 309100.0000 |
| n_real_points | 71 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.003; Oscil: 0.933; Stabil: 0.990; Sysdev: 0.000; Positv: 1.000; Valcen: 0.790; Smooth: 0.000 |
