Structure of isolated FERM domain and first long helix of moesin

Method: X-RAY DIFFRACTION D_max: 100.7 Å Quality: REASONABLE

SAXS Profile

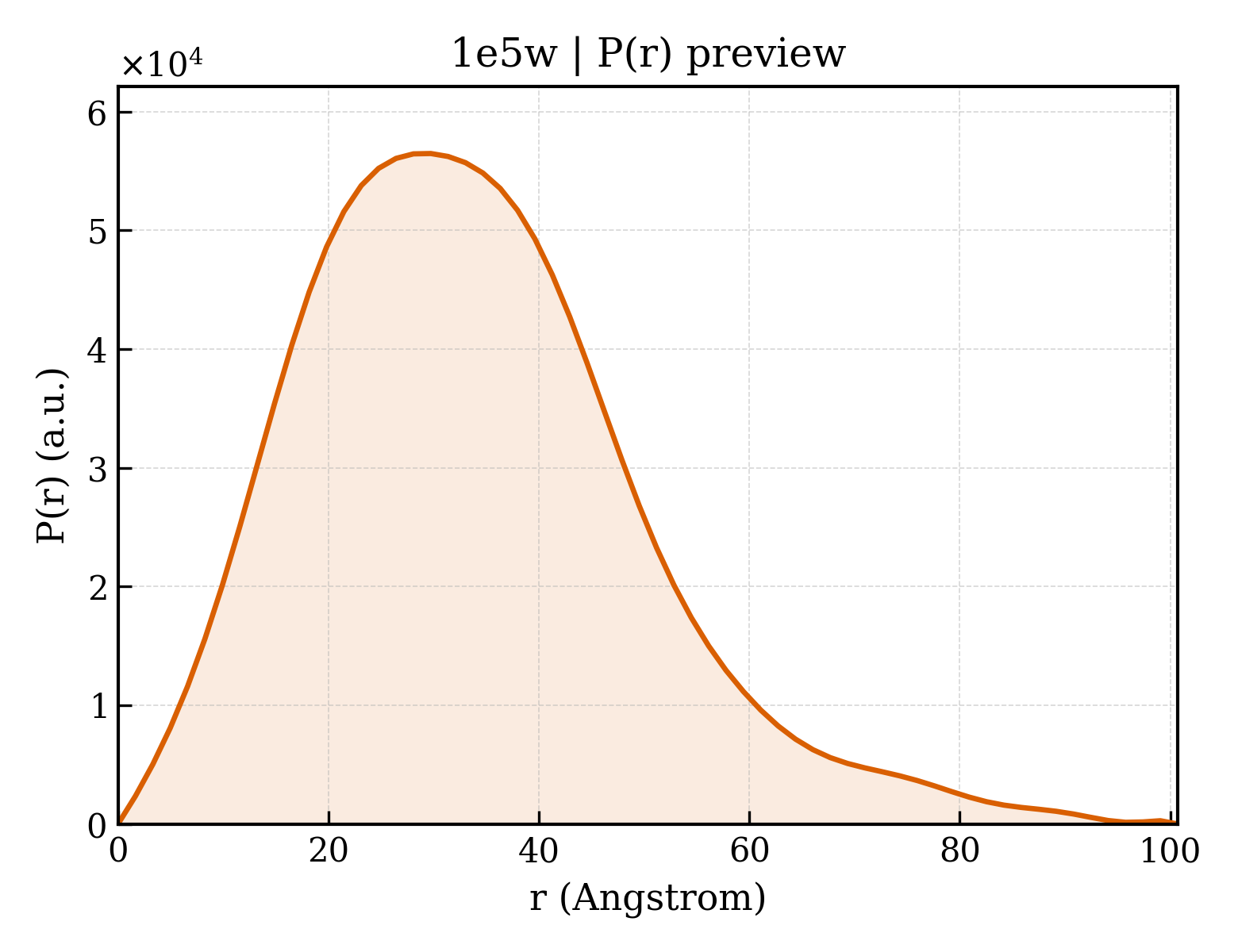

P(r) Distribution

▼

1. Structure Basics

entry_id	1e5w
deposition_date	2000-08-03
title	Structure of isolated FERM domain and first long helix of moesin
keywords	MEMBRANE PROTEIN, MOESIN, FERM, ERM; MEMBRANE PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	25.92 Å
rg_electron	25.19 Å
i0	27681300.00
molecular_weight	40993.0 kDa
excluded_volume	51764 Å³
envelope_volume	68221 Å³
shell_volume	24007 Å³
envelope_diameter	103.3 Å
shell_rg	30.29 Å
envelope_rg	26.35 Å
shape_rg	25.12 Å
total_rg	26.08 Å
total_atoms	2889
n_residues	346
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	100.7 Å
rg_real	26.13 Å
rg_real_error	1.16 Å
i0_real	2.7680e+07
i0_real_error	5.1810e+05
rg_reciprocal	26.06 Å
i0_reciprocal	27680000.0000
total_estimate	0.6070
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	29.7 Å
skewness	0.676
kurtosis	0.588
angular_range	— – 0.3050 Å⁻¹
current_alpha	0.0000
highest_alpha	4314000.0000
n_real_points	62
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.512; Stabil: 1.000; Sysdev: 0.221; Positv: 1.000; Valcen: 0.721; Smooth: 0.968

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	94.360 Å
length_b	94.360 Å
length_c	156.050 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 42 21 2
int_tables_number	94
crystal_system	—

resolution	2.700 Å
resolution_low	37.120 Å
r_factor	0.2540
r_work	0.2540
r_free	0.2970

description	MOESIN
formula_weight	41054.3 kDa
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	2925

Structure of isolated FERM domain and first long helix of moesin

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	HOMO SAPIENS
common_name	HUMAN
ncbi_taxonomy_id	9606
host_organism	ESCHERICHIA COLI

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	36
