SAXSdb — 1e6a

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

INORGANIC PYROPHOSPHATASE

SACCHAROMYCES CEREVISIAE

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MANGANESE (II) ION × 8 PYROPHOSPHATE 2- × 2 FLUORIDE ION × 2 SODIUM ION × 1 PHOSPHATE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IPYR_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–286； UniProt 1–286 Author chain B； PDBConstruct 1–286； UniProt 1–286

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1e6a
Deposition date deposition_date	2000-08-09
Structure title title	Fluoride-inhibited substrate complex of Saccharomyces cerevisiae inorganic pyrophosphatase
Keywords keywords	PHOSPHORYL TRANSFER, HYDROLYSIS; PHOSPHORYL TRANSFER
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1e6a__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1e6a__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

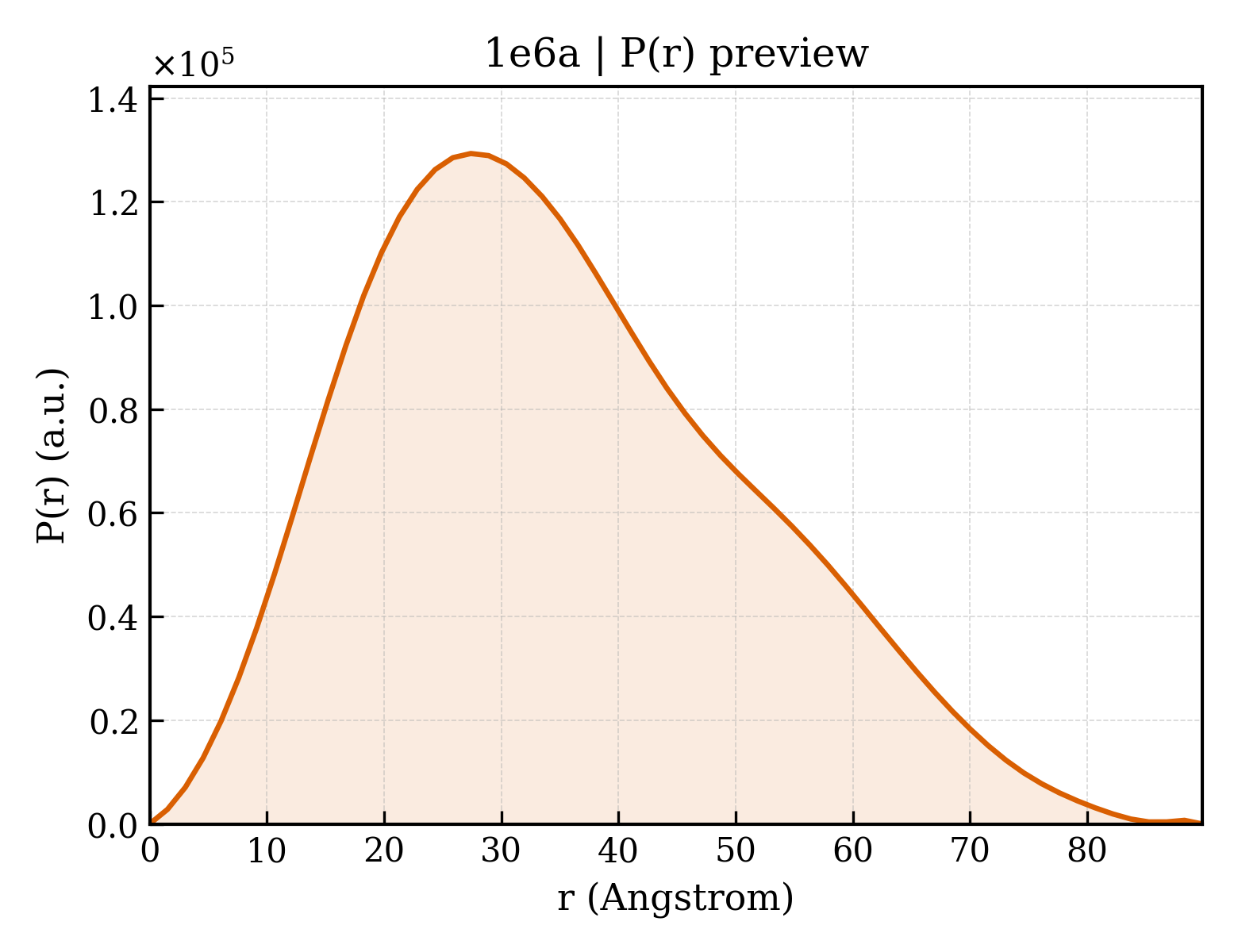

1e6a__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.09 Å
Rg (electron density)	26.44 Å
Total Rg	27.13 Å
Atom count	4504
Residues	566
Excluded volume	80345 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1e6a__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	INORGANIC PYROPHOSPHATASE
Molecular weight formula_weight	32225.4 kDa
EC 编号 ec_number	3.6.1.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5258

TYTTRQIGAKNTLEYKVYIEKDGKPVSAFHDIPLYADKENNIFNMVVEIPRWTNAKLEITKEETLNPIIQDTKKGKLRFVRNCFPHHGYIHNYGAFPQTWEDPNVSHPETKAVGDNDPIDVLEIGETIAYTGQVKQVKALGIMALLDEGETDWKVIAIDINDPLAPKLNDIEDVEKYFPGLLRATNEWFRIYKIPDGKPENQFAFSGEAKNKKYALDIIKETHDSWKQLIAGKSSDSKGIDLTNVTLPDTPTYSKAASDAIPPASLKADAPIDKSIDKWFFISGSV

Source Source

Source organism organism	SACCHAROMYCES CEREVISIAE
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	PYROPHOSPHATE 2-
Molecular weight formula_weight	176.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	FLUORIDE ION
Molecular weight formula_weight	19.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	648

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1e6aa_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.5 — Inorganic pyrophosphatase
Family Family family	b.40.5.1 — Inorganic pyrophosphatase

Domain ID domain_id	d1e6ab_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.5 — Inorganic pyrophosphatase
Family Family family	b.40.5.1 — Inorganic pyrophosphatase

CATH v4.4 (2 domains)

Domain ID domain_id	1e6aA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	80 — Inorganic Pyrophosphatase
Homologous superfamily homologous superfamily	10 — Inorganic pyrophosphatase

Domain ID domain_id	1e6aB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	80 — Inorganic Pyrophosphatase
Homologous superfamily homologous superfamily	10 — Inorganic pyrophosphatase

▶

Unit-cell length a length_a	57.770 Å
Unit-cell length b length_b	102.340 Å
Unit-cell length c length_c	115.630 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.1550
R_work r_work	0.1550
R_free r_free	0.1820
