1e6l
Two-component signal transduction system D13A mutant of CheY
SAXS Profile

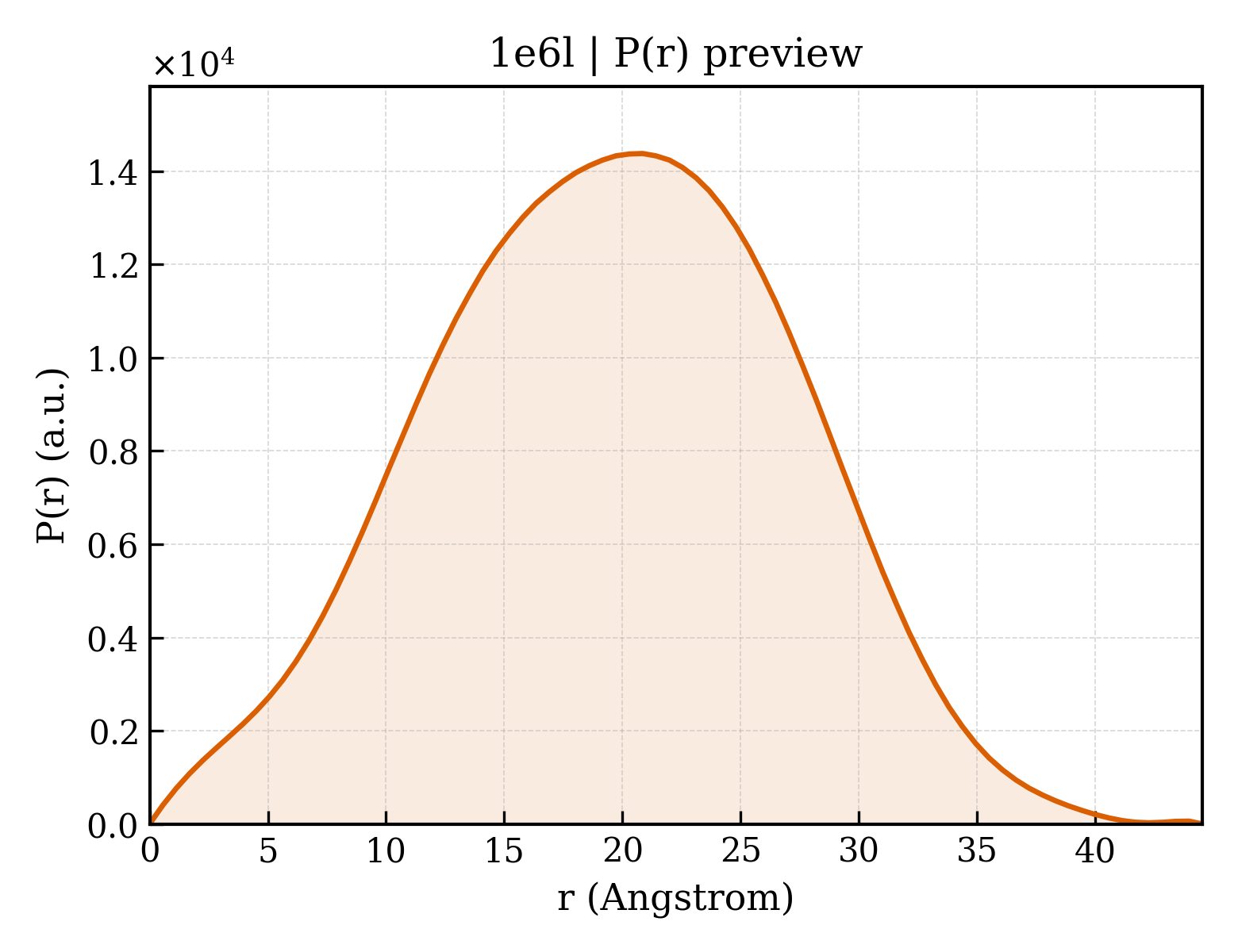

P(r) Distribution
1. Structure Basics
| entry_id | 1e6l |
| deposition_date | 2000-08-18 |
| title | Two-component signal transduction system D13A mutant of CheY |
| keywords | SIGNALING PROTEIN, TWO-COMPONENT SIGNAL TRANSDUCTION SYSTEM, CHEMOTAXIS, ACTIVE SITE MUTANT; SIGNALING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.96 Å |
| rg_electron | 13.43 Å |
| i0 | 3682890.00 |
| molecular_weight | 13848.0 kDa |
| excluded_volume | 17540 ų |
| envelope_volume | 19492 ų |
| shell_volume | 12238 ų |
| envelope_diameter | 42.9 Å |
| shell_rg | 19.31 Å |
| envelope_rg | 13.61 Å |
| shape_rg | 13.42 Å |
| total_rg | 14.75 Å |
| total_atoms | 971 |
| n_residues | 127 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 44.5 Å |
| rg_real | 14.81 Å |
| rg_real_error | 0.14 Å |
| i0_real | 3.6830e+06 |
| i0_real_error | 3.4610e+04 |
| rg_reciprocal | 14.83 Å |
| i0_reciprocal | 3683000.0000 |
| total_estimate | 0.8977 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.9 Å |
| skewness | -0.031 |
| kurtosis | -0.442 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 734300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.904; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.966; Smooth: 0.987 |
