1e71

MYROSINASE FROM SINAPIS ALBA with bound ascorbate

Method: X-RAY DIFFRACTION D_max: 70.5 Å Quality: REASONABLE

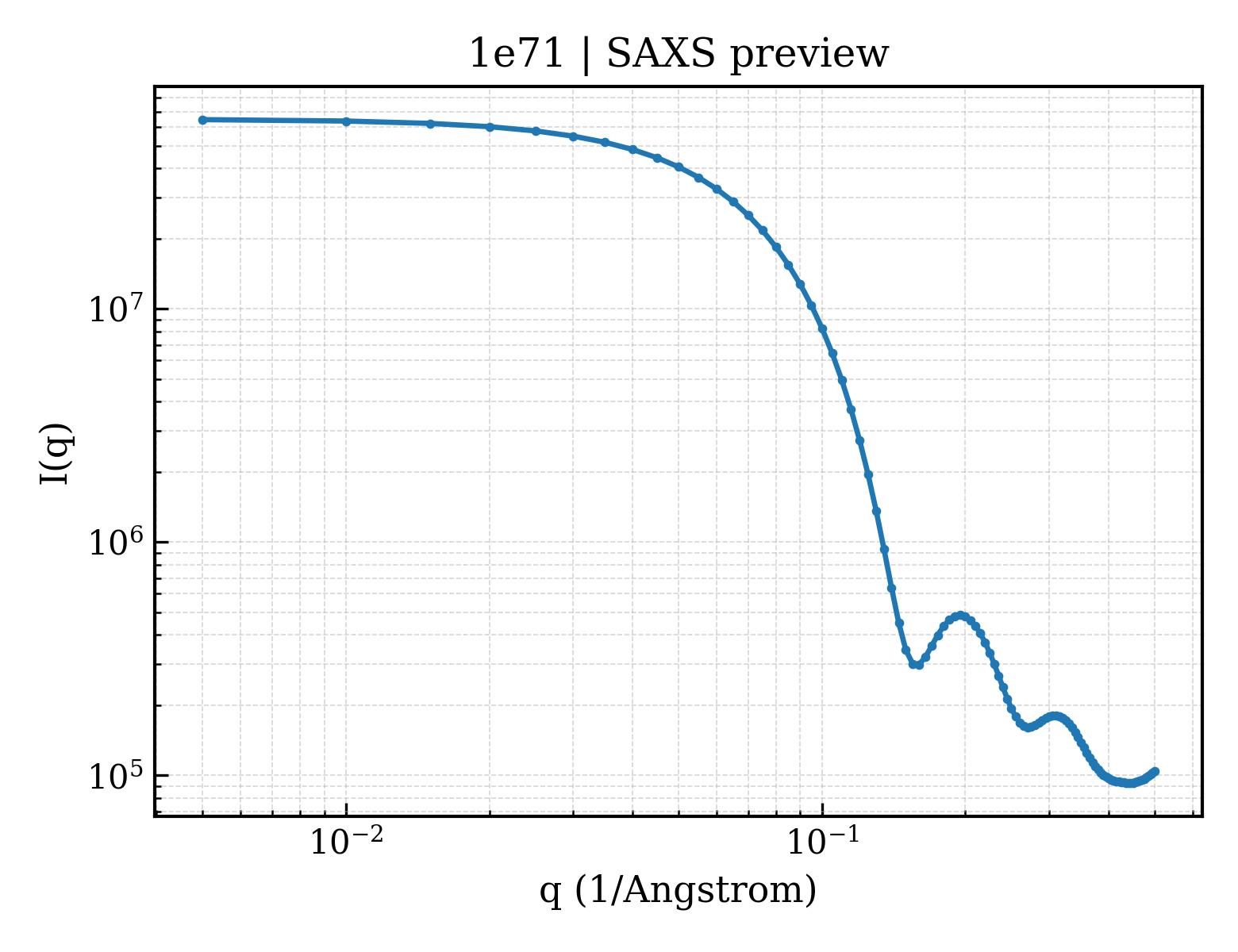

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1e71
deposition_date	2000-08-23
title	MYROSINASE FROM SINAPIS ALBA with bound ascorbate
keywords	HYDROLASE, FAMILY 1 GLYCOSYL HYDROLASE, GLUCOSINOLATE, TIM BARREL, ACTIVATION; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	23.69 Å
rg_electron	22.28 Å
i0	64889800.00
molecular_weight	61898.0 kDa
excluded_volume	76644 Å³
envelope_volume	87258 Å³
shell_volume	30905 Å³
envelope_diameter	78.3 Å
shell_rg	30.70 Å
envelope_rg	22.81 Å
shape_rg	22.20 Å
total_rg	23.37 Å
total_atoms	4349
n_residues	499
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	70.5 Å
rg_real	23.48 Å
rg_real_error	0.10 Å
i0_real	6.2600e+07
i0_real_error	6.0790e+05
rg_reciprocal	23.55 Å
i0_reciprocal	64890000.0000
total_estimate	0.7018
solution_quality	REASONABLE a REASONABLE solution
n_peaks	1
r_peak_primary	30.8 Å
skewness	0.126
kurtosis	-0.380
angular_range	— – 0.3350 Å⁻¹
current_alpha	7.9290
highest_alpha	13220000.0000
n_real_points	65
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.932; Stabil: 0.916; Sysdev: 0.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.623

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (10)

Entity 1 polymer

description	MYROSINASE MA1
formula_weight	57078.3 kDa
ec_number	3.2.1.147
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	M
atom_count	5214

DEEITCQENLPFTCGNTDALNSSSFSSDFIFGVASSAYQIEGTIGRGLNIWDGFTHRYPNKSGPDHGNGDTTCDSFSYWQKDIDVLDELNATGYRFSIAWSRIIPRGKRSRGVNEKGIDYYHGLISGLIKKGITPFVTLFHWDLPQTLQDEYEGFLDPQIIDDFKDYADLCFEEFGDSVKYWLTINQLYSVPTRGYGSALDAPGRCSPTVDPSCYAGNSSTEPYIVAHHQLLAHAKVVDLYRKNYTHQGGKIGPTMITRWFLPYNDTDRHSIAATERMKEFFLGWFMGPLTNGTYPQIMIDTVGERLPSFSPEESNLVKGSYDFLGLNYYFTQYAQPSPNPVNSTNHTAMMDAGAKLTYINASGHYIGPLFEKDKADSTDNIYYYPKGIYSVMDYFKNKYYNPLIYVTENGISTPGDENRNQSMLDYTRIDYLCSHLCFLNKVIKEKDVNVKGYLAWALGDNYEFNKGFTVRFGLSYIDWNNVTDRDLKKSGQWYQSFISP

Entity 2 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	man
entity_count	1

Entity 3 branched

description	;beta-D-xylopyranose-(1-2)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	864.8 kDa
src_method	man
entity_count	1

Entity 4 branched

description	;beta-D-xylopyranose-(1-2)-[alpha-D-mannopyranose-(1-3)][alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1189.1 kDa
src_method	man
entity_count	1

Entity 5 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	man
entity_count	6

Entity 6 non-polymer

description	ASCORBIC ACID
formula_weight	176.1 kDa
src_method	syn
entity_count	1

Entity 7 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	5

Entity 8 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	1

Entity 9 non-polymer

description	SULFATE ION
formula_weight	96.1 kDa
src_method	syn
entity_count	8

Entity 10 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	798

▶

6. Citations (2)

▶

length_a	135.300 Å
length_b	137.200 Å
length_c	80.600 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	1.500 Å
resolution_low	10.000 Å
r_factor	—
r_work	0.1270
r_free	0.1520
