1e7o
A-SPECTRIN SH3 DOMAIN A11V, V23L, M25V, V44I, V58L MUTATIONS
SAXS Profile

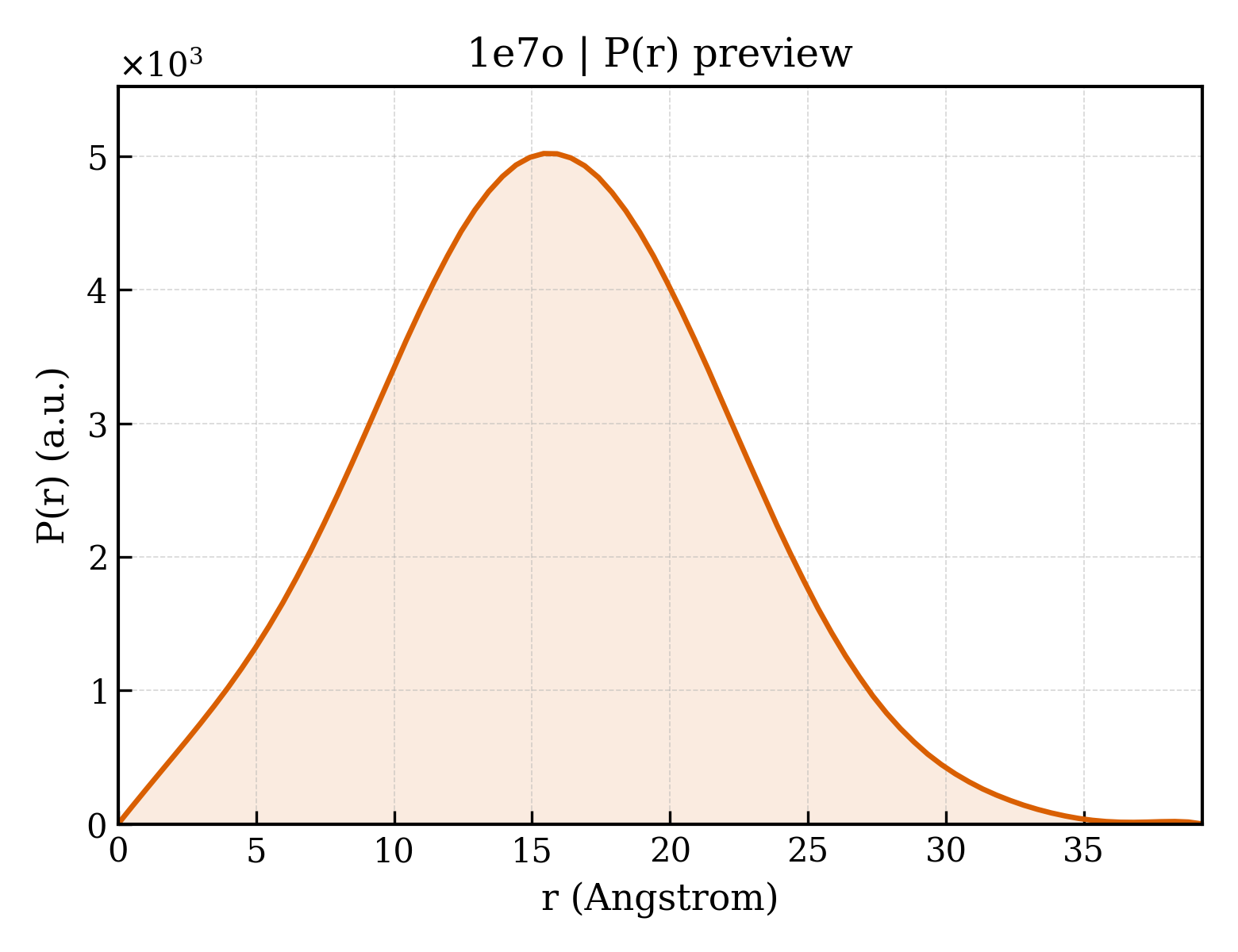

P(r) Distribution
1. Structure Basics
| entry_id | 1e7o |
| deposition_date | 2000-08-31 |
| title | A-SPECTRIN SH3 DOMAIN A11V, V23L, M25V, V44I, V58L MUTATIONS |
| keywords | SH3-DOMAIN, CYTOSKELETON, CALMODULIN-BINDING, ACTIN-BINDING, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.09 Å |
| rg_electron | 10.52 Å |
| i0 | 1010820.00 |
| molecular_weight | 6975.0 kDa |
| excluded_volume | 8930 ų |
| envelope_volume | 9649 ų |
| shell_volume | 7942 ų |
| envelope_diameter | 36.5 Å |
| shell_rg | 15.99 Å |
| envelope_rg | 10.98 Å |
| shape_rg | 10.46 Å |
| total_rg | 12.26 Å |
| total_atoms | 493 |
| n_residues | 59 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 39.3 Å |
| rg_real | 12.01 Å |
| rg_real_error | 0.19 Å |
| i0_real | 1.0110e+06 |
| i0_real_error | 1.0120e+04 |
| rg_reciprocal | 12.01 Å |
| i0_reciprocal | 1011000.0000 |
| total_estimate | 0.8752 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.4 Å |
| skewness | 0.119 |
| kurtosis | -0.257 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 315900.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.797; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.989 |
