SAXSdb — 1e7u

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PHOSPHATIDYLINOSITOL 3-KINASE CATALYTIC SUBUNIT

SUS SCROFA

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	;(1S,6BR,9AS,11R,11BR)-9A,11B-DIMETHYL-1-[(METHYLOXY)METHYL]-3,6,9-TRIOXO-1,6,6B,7,8,9,9A,10,11,11B-DECAHYDRO-3H-FURO[4, 3,2-DE]INDENO[4,5-H][2]BENZOPYRAN-11-YL ACETATE ; × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	P11G_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–961； UniProt 142–1102

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1e7u
Deposition date deposition_date	2000-09-08
Structure title title	Structure determinants of phosphoinositide 3-kinase inhibition by wortmannin, LY294002, quercetin, myricetin and staurosporine
Keywords keywords	PHOSPHOINOSITIDE 3-KINASE GAMMA, SECONDARY MESSENGER GENERATION, PI3K, PI 3K, WORTMANNIN; PHOSPHOINOSITIDE 3-KINASE GAMMA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1e7u__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

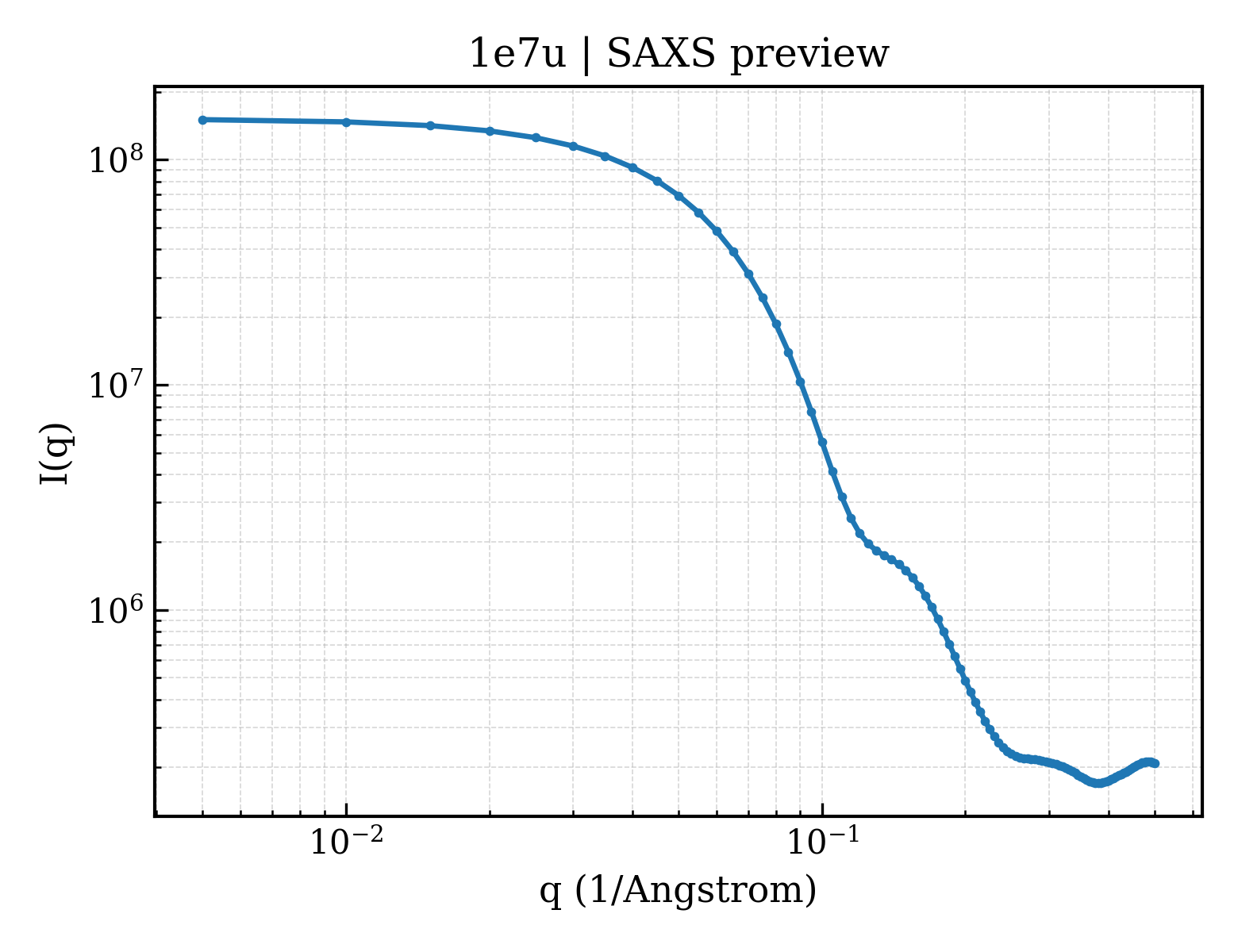

1e7u__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1e7u__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.38 Å
Rg (electron density)	29.34 Å
Total Rg	30.19 Å
Atom count	7085
Residues	872
Excluded volume	127350 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1e7u__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PHOSPHATIDYLINOSITOL 3-KINASE CATALYTIC SUBUNIT
Molecular weight formula_weight	109952.6 kDa
EC 编号 ec_number	2.7.1.137
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7249

AASEETLAFQRQLNALIGYDVTDVSNVHDDELEFTRRRLVTPRMAEVAGRDPKLYAMHPWVTSKPLPEYLLKKITNNCVFIVIHRSTTSQTIKVSADDTPGTILQSFFTKMAKKKSLMDIPESQNERDFVLRVCGRDEYLVGETPIKNFQWVRQCLKNGEEIHLVLDTPPDPALDEVRKEEWPLVDDCTGVTGYHEQLTIHGKDHESVFTVSLWDCDRKFRVKIRGIDIPVLPRTADLTVFVEANIQYGQQVLCQRRTSPKPFTEEVLWNVWLEFSIKIKDLPKGALLNLQIYCGAKPALSGKTSAEMPSPESKGKAQLLYYVNLLLIDHRFLLRHGEYVLHMWQLSGKGEDQGSFNADKLTSATNPDKENSMSISILLDNYCHPIALPKHRPTPDPEGDRVRAEMPNQLRKQLEAIIATDPLNPLTAEDKELLWHFRYESLKDPKAYPKLFSSVKWGQQEIVAKTYQLLAKREVWDQSALDVGLTMQLLDCNFSDENVRAIAVQKLESLEDDDVLHYLLQLVQAVKFEPYHDSALARFLLKRGLRNKRIGHFLFWFLRSEIAQSRHYQQRFAVILEAYLRGCGTAMLHDFTQQVQVIDMLQKVTIDIKSLSAEKYDVSSQVISQLKQKLENLQNLNLPQSFRVPYDPGLKAGALVIEKCKVMASKKKPLWLEFKCADPTALSNETIGIIFKHGDDLRQDMLILQILRIMESIWETESLDLCLLPYGCISTGDKIGMIEIVKDATTIAKIQQSTVGNTGAFKDEVLSHWLKEKCPIEEKFQAAVERFVYSCAGYCVATFVLGIGDRHNDNIMISETGNLFHIDFGHILGNYKSFLGINKERVPFVLTPDFLFVMGTSGKKTSLHFQKFQDVCVKAYLALRHHTNLLIILFSMMLMTGMPQLTSKEDIEYIRDALTVGKSEEDAKKYFLDQIEVCRDKGWTVQFNWFLHLVLGIKQGEKHSA

Source Source

Source organism organism	SUS SCROFA
Common name common_name	WILD BOAR
NCBI taxonomy ID ncbi_taxonomy_id	9823
Host organism host_organism	SPODOPTERA FRUGIPERDA

Entity 2 Entity 2 non-polymer

Description description	;(1S,6BR,9AS,11R,11BR)-9A,11B-DIMETHYL-1-[(METHYLOXY)METHYL]-3,6,9-TRIOXO-1,6,6B,7,8,9,9A,10,11,11B-DECAHYDRO-3H-FURO[4, 3,2-DE]INDENO[4,5-H][2]BENZOPYRAN-11-YL ACETATE ;
Molecular weight formula_weight	428.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	164

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d1e7ua1
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.6 — Phoshoinositide 3-kinase (PI3K) helical domain

Domain ID domain_id	d1e7ua2
Class class	b — All beta proteins
Fold Fold fold	b.7 — C2 domain-like
Superfamily Superfamily superfamily	b.7.1 — C2 domain (Calcium/lipid-binding domain, CaLB)
Family Family family	b.7.1.1 — PLC-like (P variant)

Domain ID domain_id	d1e7ua3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.5 — Ras-binding domain, RBD

Domain ID domain_id	d1e7ua4
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.4 — Phoshoinositide 3-kinase (PI3K), catalytic domain

Domain ID domain_id	d1e7ua5
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (5 domains)

Domain ID domain_id	1e7uA01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	1e7uA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	150 — C2 domain

Domain ID domain_id	1e7uA03
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	70 — Phosphatidylinositol 3-kinase, accessory domain (PIK)

Domain ID domain_id	1e7uA04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1010 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 4

Domain ID domain_id	1e7uA05
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1070 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, Domain 5
Homologous superfamily homologous superfamily	11 — Phosphatidylinositol 3-/4-kinase, catalytic domain

▶

Unit-cell length a length_a	145.327 Å
Unit-cell length b length_b	67.664 Å
Unit-cell length c length_c	106.650 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.05 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	72.380 Å
R factor r_factor	0.2540
R_work r_work	0.2540
R_free r_free	0.2980
