1e8i
HUMAN CD69 - TETRAGONAL FORM
SAXS Profile

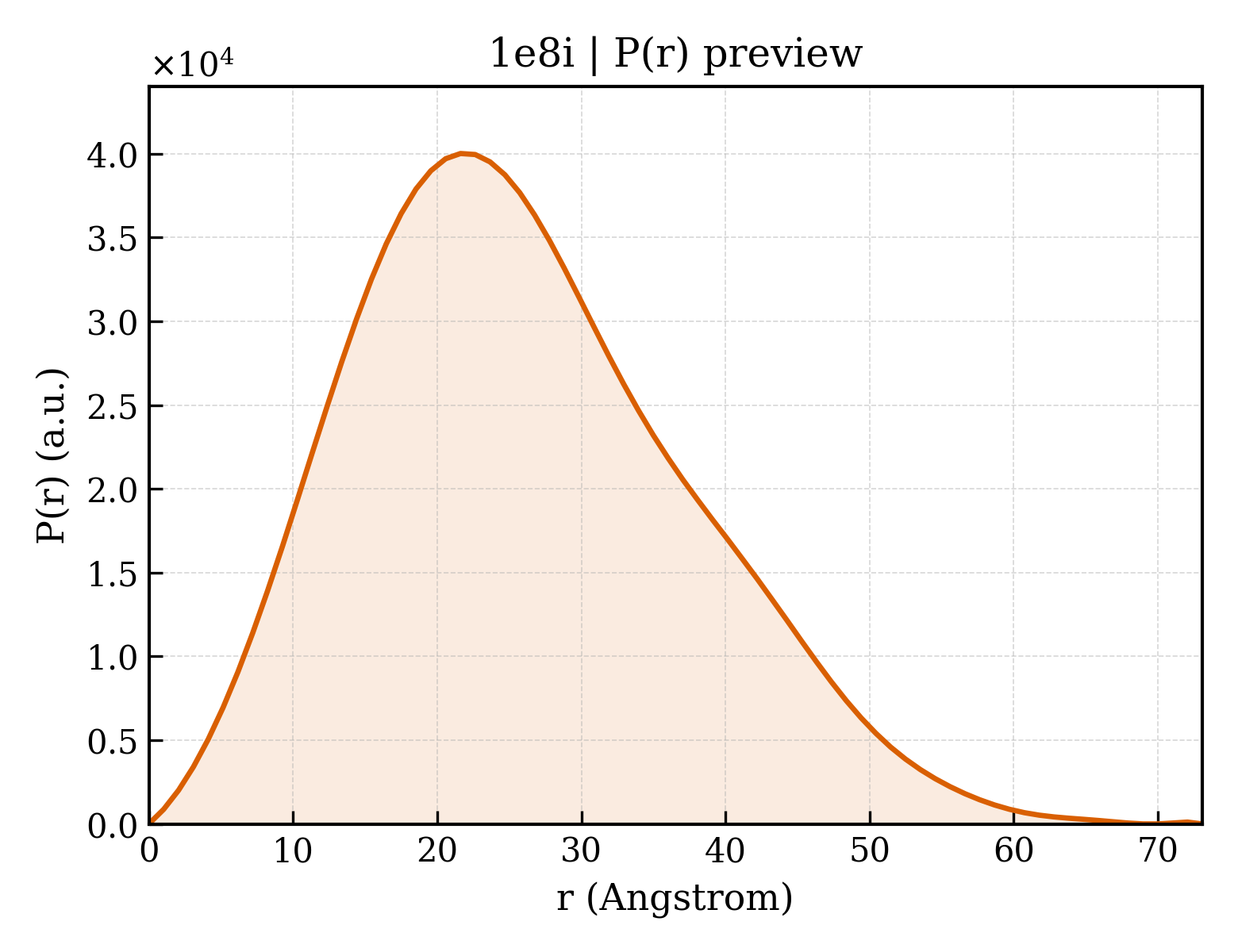

P(r) Distribution
1. Structure Basics
| entry_id | 1e8i |
| deposition_date | 2000-09-21 |
| title | HUMAN CD69 - TETRAGONAL FORM |
| keywords | HEMATOPOIETIC CELL RECEPTOR, LEUCOCYTE, C-TYPE LECTIN-LIKE, NKD, KLR; HEMATOPOIETIC CELL RECEPTOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.96 Å |
| rg_electron | 19.07 Å |
| i0 | 14258400.00 |
| molecular_weight | 27477.0 kDa |
| excluded_volume | 33922 ų |
| envelope_volume | 38700 ų |
| shell_volume | 17545 ų |
| envelope_diameter | 72.2 Å |
| shell_rg | 24.78 Å |
| envelope_rg | 19.36 Å |
| shape_rg | 19.05 Å |
| total_rg | 19.93 Å |
| total_atoms | 1931 |
| n_residues | 234 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 73.1 Å |
| rg_real | 20.01 Å |
| rg_real_error | 0.58 Å |
| i0_real | 1.4260e+07 |
| i0_real_error | 1.7500e+05 |
| rg_reciprocal | 20.01 Å |
| i0_reciprocal | 14260000.0000 |
| total_estimate | 0.8226 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.6 Å |
| skewness | 0.445 |
| kurtosis | -0.176 |
| angular_range | — – 0.4000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3495000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.636; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.808; Smooth: 0.972 |
