1e93
High resolution structure and biochemical properties of a recombinant catalase depleted in iron

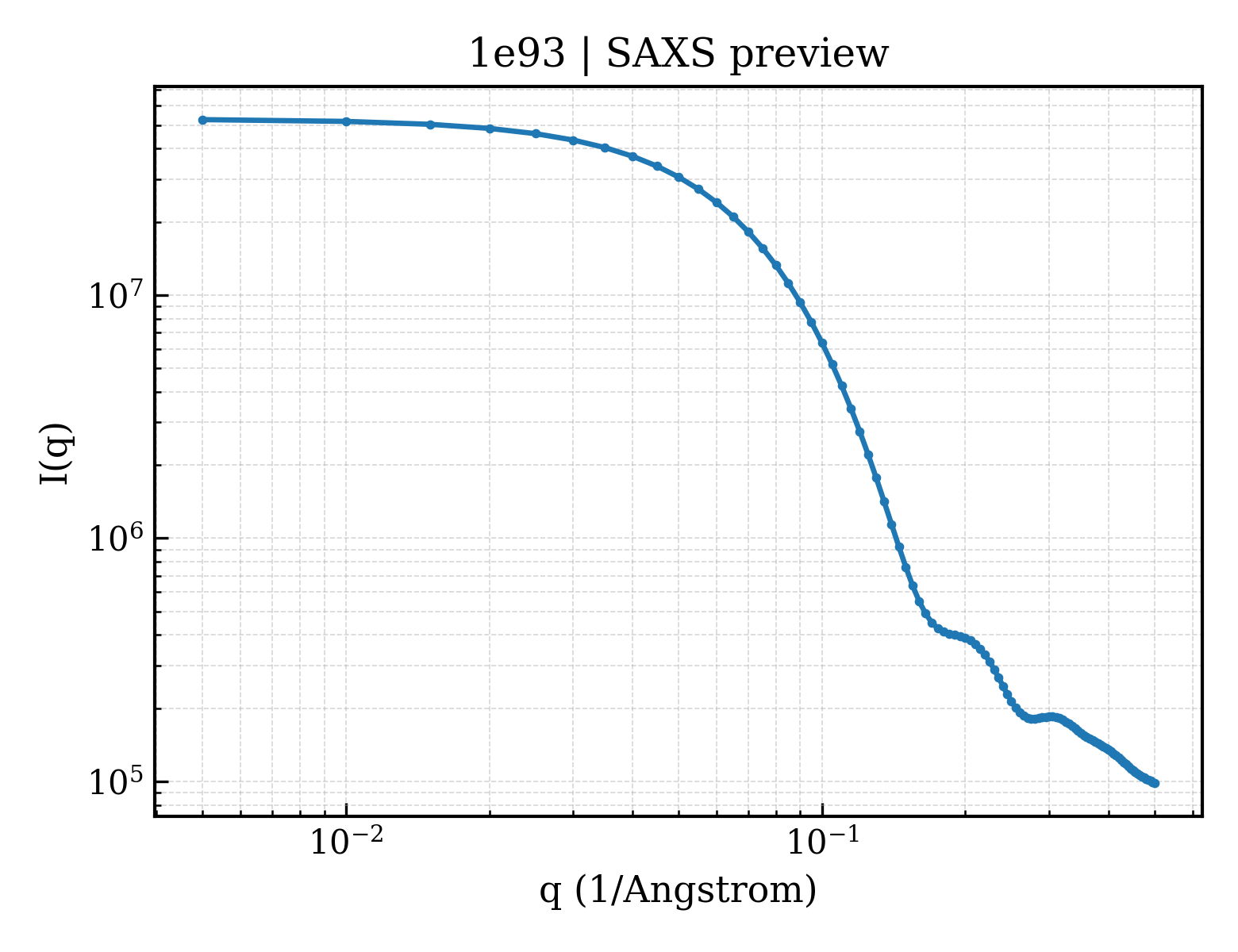

SAXS Profile

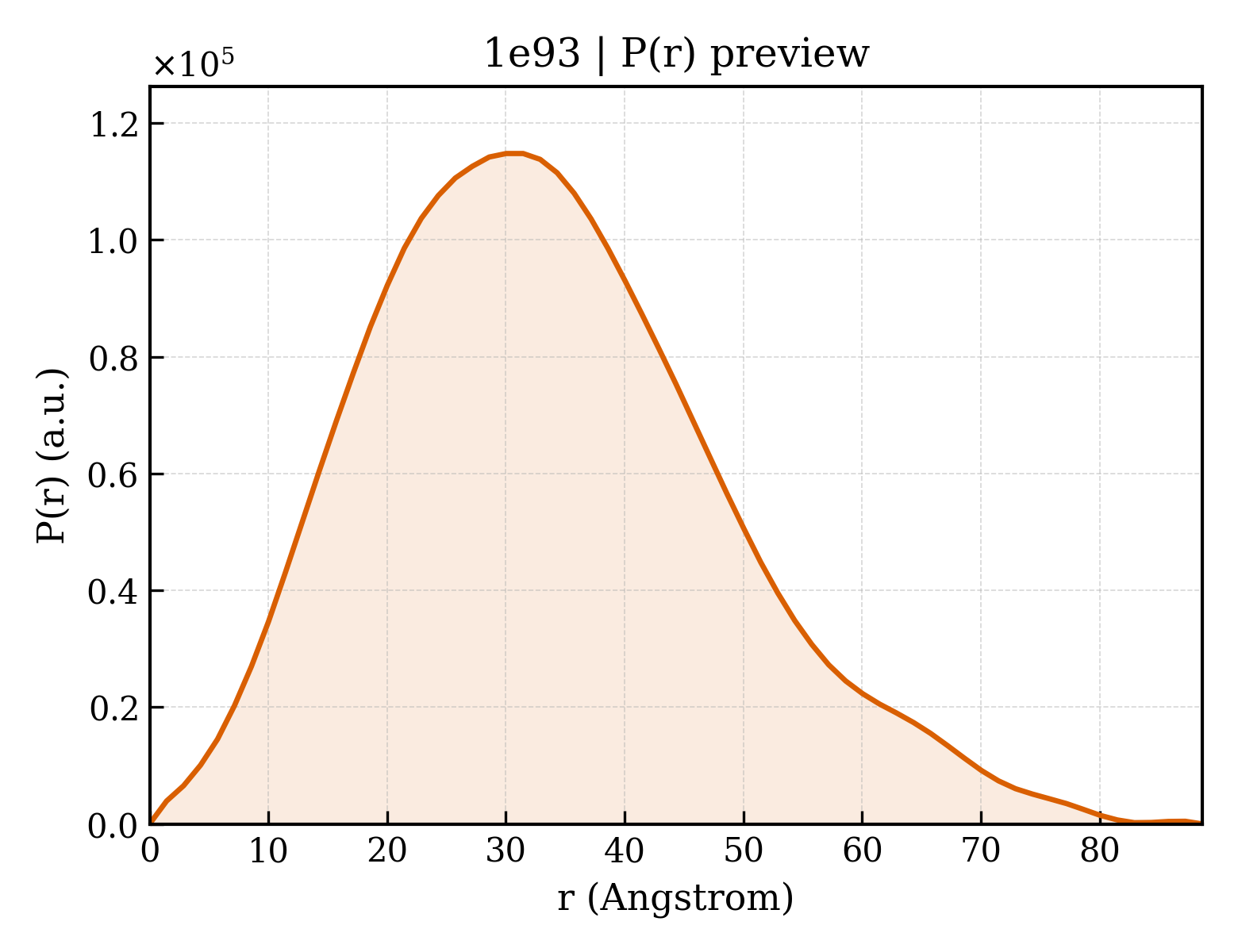

P(r) Distribution
1. Structure Basics
| entry_id | 1e93 |
| deposition_date | 2000-10-05 |
| title | High resolution structure and biochemical properties of a recombinant catalase depleted in iron |
| keywords | OXIDOREDUCTASE, OXIDOREDUCTASE (H2O2 ACCEPTOR), PEROXIDASE, IRON, HEM, HYDROGEN PEROXIDE, NADP; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.72 Å |
| rg_electron | 25.00 Å |
| i0 | 52946300.00 |
| molecular_weight | 55505.0 kDa |
| excluded_volume | 68879 ų |
| envelope_volume | 88538 ų |
| shell_volume | 29612 ų |
| envelope_diameter | 93.6 Å |
| shell_rg | 31.92 Å |
| envelope_rg | 26.22 Å |
| shape_rg | 24.95 Å |
| total_rg | 25.89 Å |
| total_atoms | 3922 |
| n_residues | 475 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 88.7 Å |
| rg_real | 25.75 Å |
| rg_real_error | 0.77 Å |
| i0_real | 5.2950e+07 |
| i0_real_error | 7.9460e+05 |
| rg_reciprocal | 25.74 Å |
| i0_reciprocal | 52950000.0000 |
| total_estimate | 0.8619 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 87.2 Å |
| skewness | 0.459 |
| kurtosis | -0.042 |
| angular_range | — – 0.3100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 8425000.0000 |
| n_real_points | 63 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.742; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.991 |
