1e9a

Human thymidylate kinase complexed with the bisubstrate inhibitor AZTP5A

Method: X-RAY DIFFRACTION D_max: 53.0 Å Quality: GOOD

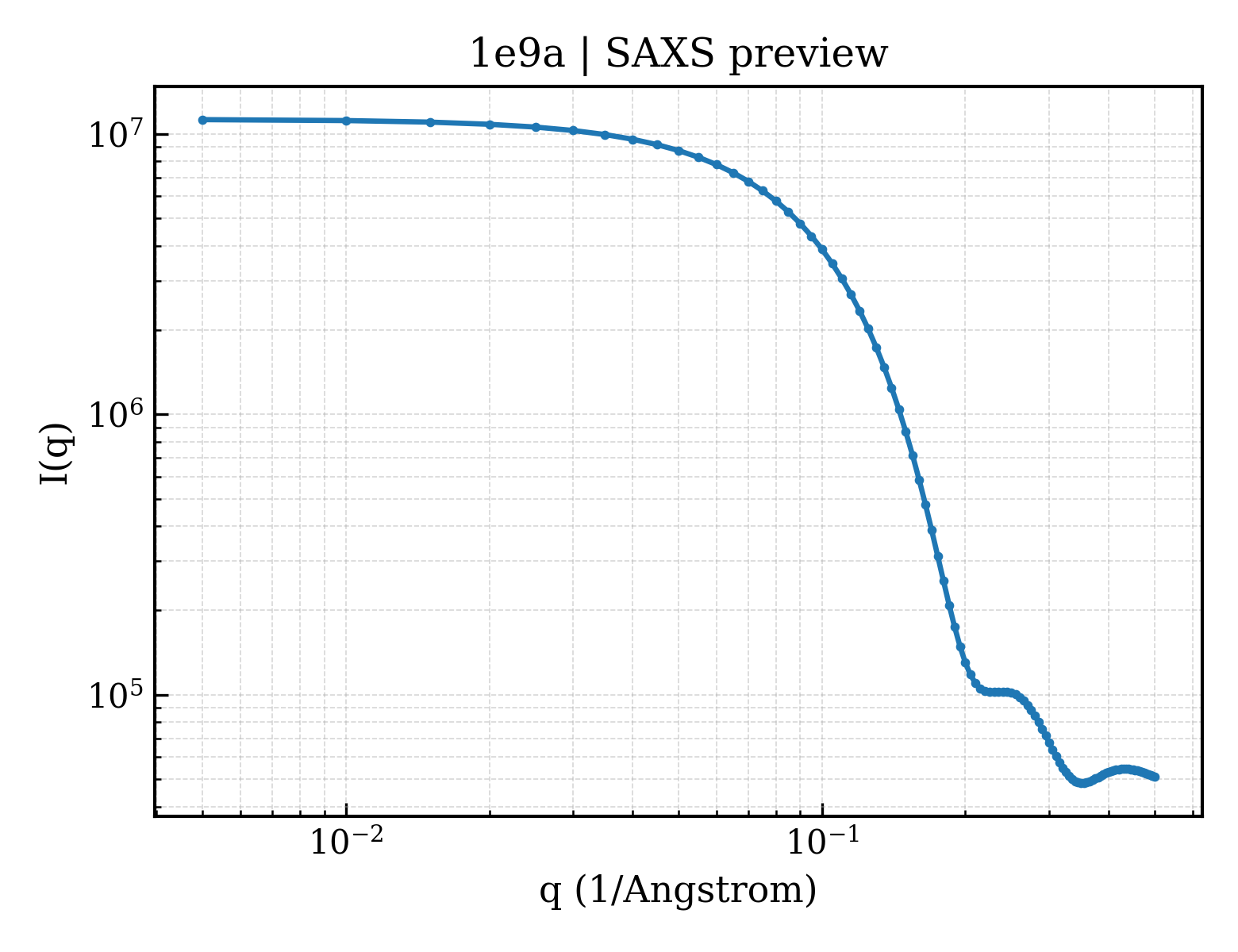

SAXS Profile

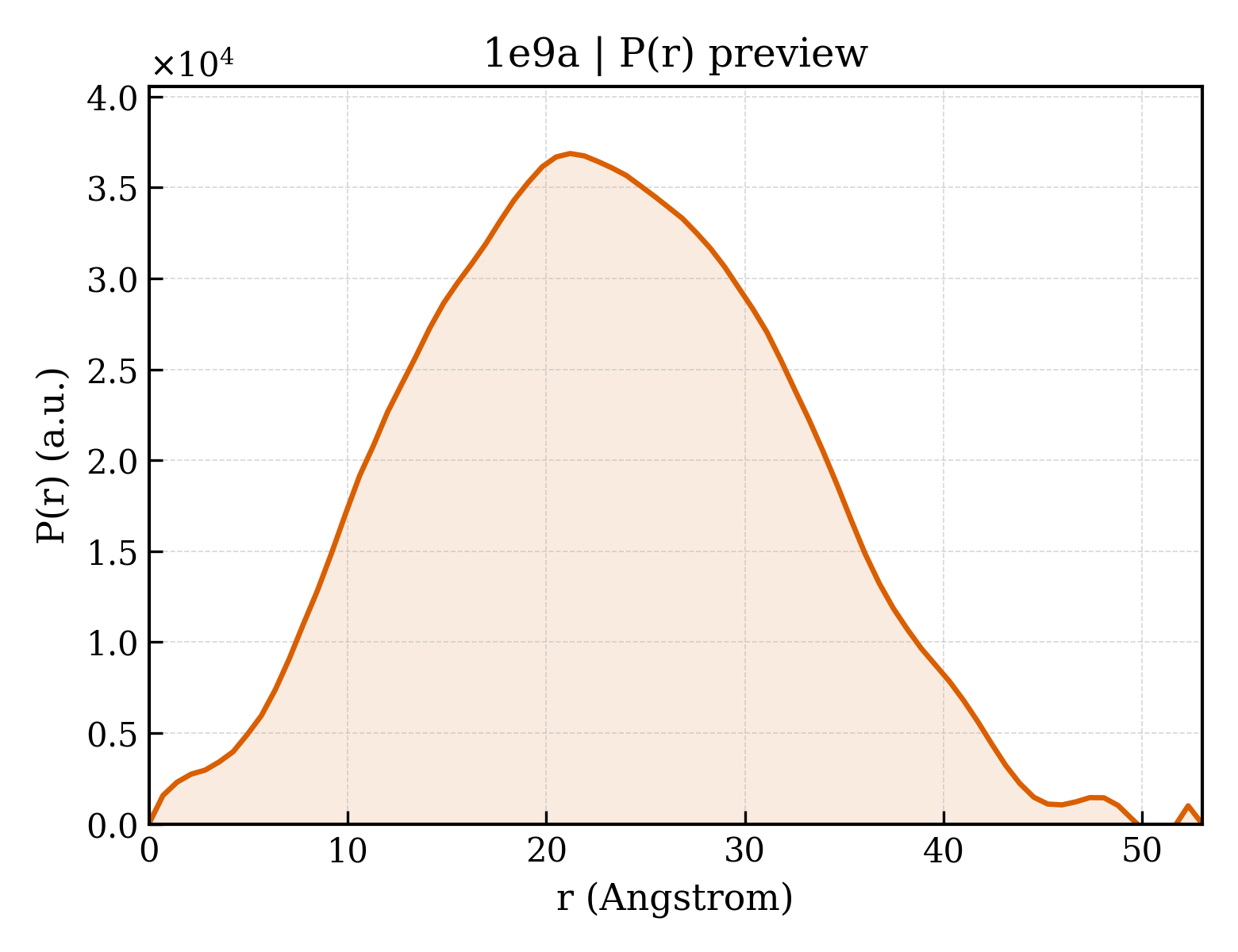

P(r) Distribution

▼

1. Structure Basics

entry_id	1e9a
deposition_date	2000-10-10
title	Human thymidylate kinase complexed with the bisubstrate inhibitor AZTP5A
keywords	PHOSPHOTRANSFERASE, THYMIDYLATE KINASE, P-LOOP, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	17.57 Å
rg_electron	16.37 Å
i0	11283600.00
molecular_weight	24225.0 kDa
excluded_volume	29992 Å³
envelope_volume	33331 Å³
shell_volume	16814 Å³
envelope_diameter	53.3 Å
shell_rg	22.71 Å
envelope_rg	16.61 Å
shape_rg	16.37 Å
total_rg	17.36 Å
total_atoms	1701
n_residues	209
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	53.0 Å
rg_real	17.44 Å
rg_real_error	0.34 Å
i0_real	1.1280e+07
i0_real_error	1.3690e+05
rg_reciprocal	17.46 Å
i0_reciprocal	11280000.0000
total_estimate	0.8180
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	21.2 Å
skewness	0.103
kurtosis	-0.455
angular_range	— – 0.4550 Å⁻¹
current_alpha	0.0000
highest_alpha	2143000.0000
n_real_points	76
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.885; Stabil: 0.995; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	THYMIDYLATE KINASE
formula_weight	24052.5 kDa
ec_number	2.7.4.9
mutation	YES
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2101

GSHMAARRGALIVLEGVDRAGKSTQSRKLVEALCAAGHRAELLRFPERSTEIGKLLSSYLQKKSDVEDHSVHLLFSANRWEQVPLIKEKLSQGVTLVVDRYAFSGVAFTGAKENFSLDWCKQPDVGLPKPDLVLFLQLQLADAAKRGAFGHERYENGAFQERALRCFHQLMKDTTLNWKMVDASKSIEAVHEDIRVLSEDAIATATEKPLGELWK

Source

organism	HOMO SAPIENS
common_name	HUMAN
ncbi_taxonomy_id	9606
host_organism	ESCHERICHIA COLI

Entity 2 non-polymer

description	P1-(5'-ADENOSYL)P5-(5'-(3'AZIDO-3'-DEOXYTHYMIDYL))PENTAPHOSPHATE
formula_weight	911.3 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	2

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	288

▶

6. Citations (2)

▶

length_a	101.600 Å
length_b	101.600 Å
length_c	49.850 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 43 21 2
int_tables_number	96
crystal_system	—

resolution	1.600 Å
resolution_low	24.500 Å
r_factor	—
r_work	0.1890
r_free	0.2200
