SAXSdb — 1e9w

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

THIOSTREPTON

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–17	Non-standard monomer：Yes (specific site not provided by mmCIF)	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；1ML 15.38MG/ML THIOSTREPTON IN CHLOROFORM_ISOAMYL ALCOHOL + 100 MICROL GLYCEROL + 200 MICROL ETHANOL. BATCH METHOD, pH 7.00	Resolution 1.02 Å R-free 0.142

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1E9W	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1OLN Model for thiostrepton antibiotic binding to L11 substrate from 50S ribosomal RNA Deposited 2003-08-08	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 2 PDB declaration: trimeric	Chain B 1–17（17 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	Experimental method not declared NMR measurement conditions pH 6.2；303 K；Ionic strength (raw mmCIF value) 100 MM NACL, 5 MM MGCL2；Pressure 1	Resolution not provided
2JQ7 Model for thiostrepton binding to the ribosomal L11-RNA Deposited 2007-05-30	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 2 PDB declaration: trimeric	Chain C 1–17（17 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.1；298 K；Ionic strength (raw mmCIF value) 220；Pressure 1 NMR sample composition 0.3 MM [U-13C, U-15N U-2H] RIBOSOMAL PROTEIN L11, 0.3 MM RIBOSOMAL RNA, 0.3 MM THIOSTREPTON ANTIBIOTIC, 20 MM POTASSIUM PHOSPHATE, 200 MM POTASSIUM CHLORIDE, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
2L2W Thiostrepton Deposited 2010-08-27	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–17（17 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions 298 K；Pressure ambient NMR sample composition 10 mM thiostrepton, chloroform-d/ethanol-d5 5:1 \| chloroform-d/ethanol-d5 5:1	Resolution not provided
2L2X Thiostrepton, oxidized at CA-CB bond of residue 9 Deposited 2010-08-27	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–16（16 aa） Fragment：residues 1-16	Mutation：(DCY)9(BB9) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions 298 K；Pressure ambient NMR sample composition 10 mM thiostrepton (BB9, 9), chloroform-d/ethanol-d5 5:1 \| chloroform-d/ethanol-d5 5:1	Resolution not provided
2L2Y Thiostrepton, epimer form of residue 9 Deposited 2010-08-27	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–16（16 aa） Fragment：residues 1-16	Mutation：(DCY)9C Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions 298 K；Pressure ambient NMR sample composition 10 mM thiostrepton (epi,9), chloroform-d/ethanol-d5 5:1 \| chloroform-d/ethanol-d5 5:1	Resolution not provided
2L2Z Thiostrepton, reduced at N-CA bond of residue 14 Deposited 2010-08-27	Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–17（17 aa）	Mutation：(MH6)14(DSN) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions 298 K；Pressure ambient NMR sample composition 10 mM thiostrepton (DSN 14), chloroform-d/ethanol-d5 5:1 \| chloroform-d/ethanol-d5 5:1	Resolution not provided
3CF5 Thiopeptide antibiotic Thiostrepton bound to the large ribosomal subunit of Deinococcus radiodurans Deposited 2008-03-02	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 29 PDB declaration: 31-meric	Chain 5 1–17（17 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 36	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP	Resolution 3.30 Å R-free 0.318
4HP2 Invariom refinement of a new dimeric monoclinic 2 solvate of thiostrepton at 0.64 angstrom resolution Deposited 2012-10-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 56–72（17 aa） Fragment：UNP RESIDUES 56-72 Chain B 56–72（17 aa） Fragment：UNP RESIDUES 56-72	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	DMF DIMETHYLFORMAMIDE × 8 ETZ diethyl ether × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；DIMETHYLFORMAMID, DIETHYLETHER, pH 7.00, VAPOR DIFFUSION	Resolution 0.64 Å
5D8H CRYSTAL STRUCTURE OF THE BASE OF THE RIBOSOMAL P STALK FROM METHANOCOCCUS JANNASCHII WITH ANTIBIOTIC THIOSTREPTON Deposited 2015-08-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 3 PDB declaration: tetrameric	Chain D 0–18（19 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 11 NA SODIUM ION × 4 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；0.1 mM Tris-HCl, pH 7.5, 10% PEG 8000, 20% glycerol, 1 mM TCEP (tris(2-carboxyethyl)phosphine), 0.125 mM CTAB	Resolution 2.80 Å R-free 0.245

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	THCL_STRAJ
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–18； UniProt 1–17

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1e9w
Deposition date deposition_date	2000-10-27
Structure title title	Structure of the macrocycle thiostrepton solved using the anomalous dispersive contribution from sulfur
Keywords keywords	ANTIBIOTIC, THIOPEPTIDE, ANTIBACTERIAL, THIAZOLE, THIAZOLINE, OXAZOLE, RIBOSOME, TRANSLATION INHIBITION; ANTIBIOTIC
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	8.41 Å
Radius of gyration Rg (electron density) rg_electron	7.35 Å
Forward intensity I(0) i0	104796.00
Molecular weight molecular_weight	1688.0 kDa
Excluded volume excluded_volume	2054 Å³
Envelope volume envelope_volume	2090 Å³
Hydration-shell volume shell_volume	3027 Å³
Envelope diameter envelope_diameter	28.0 Å
Shell Rg shell_rg	11.36 Å
Envelope Rg envelope_rg	8.21 Å
Shape Rg shape_rg	7.32 Å
Total Rg total_rg	9.01 Å
Total atoms total_atoms	114
Residues n_residues	6
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	32.9 Å
Rg (real space) rg_real	8.53 Å
Rg uncertainty (real space) rg_real_error	0.48 Å
I(0) (real space) i0_real	1.0480e+05
I(0) uncertainty (real space) i0_real_error	1.2040e+03
Rg (reciprocal space) rg_reciprocal	8.53 Å
I(0) (reciprocal space) i0_reciprocal	104800.0000
Solution quality estimate total_estimate	0.7593
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	8.7 Å
Skewness Skewness skewness	0.694
Kurtosis Kurtosis kurtosis	0.269
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6441.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.516; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.333; Smooth: 0.987

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▶

8. Citations (1)

▶

Unit-cell length a length_a	26.577 Å
Unit-cell length b length_b	26.577 Å
Unit-cell length c length_c	27.436 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	1.020 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.1124
R_work r_work	—
R_free r_free	0.1423

Description description	THIOSTREPTON
Molecular weight formula_weight	1806.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	118

Structure of the macrocycle thiostrepton solved using the anomalous dispersive contribution from sulfur

1. Protein Identity and Related Structures Protein Identity & Related Structures

THIOSTREPTON

State in the Current Structure

Other States of the Same Protein in the Database

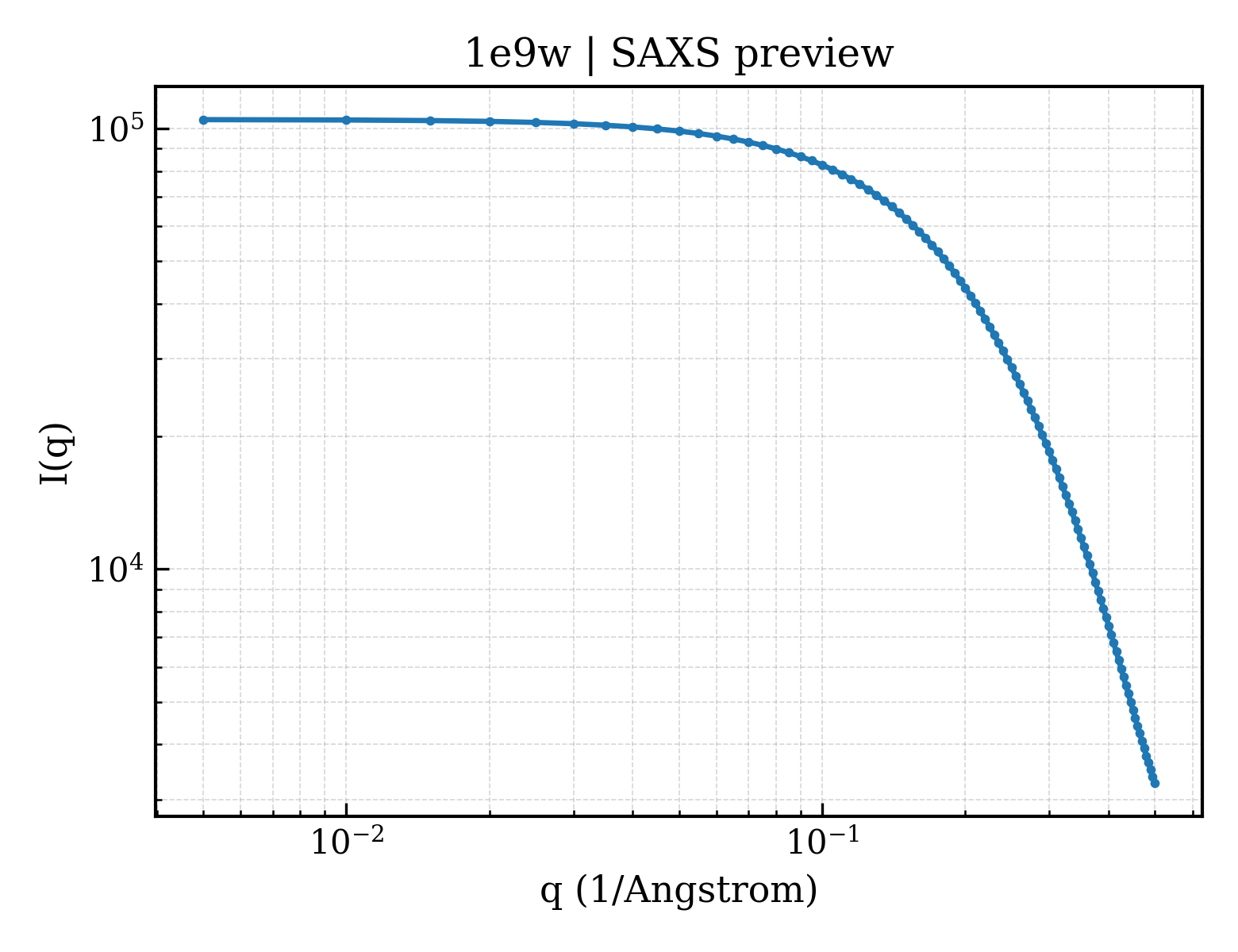

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 water

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	4

fit	/app/data/saxs_computation/e9/1e9w/1e9w.fit
pddf	/app/data/pr_computation/e9/1e9w/1e9w.pr.out
profile	/app/data/saxs_computation/e9/1e9w/1e9w.dat
