1eb8

Structure Determinants of Substrate Specificity of Hydroxynitrile Lyase from Manihot esculenta

Method: X-RAY DIFFRACTION D_max: 80.0 Å Quality: EXCELLENT

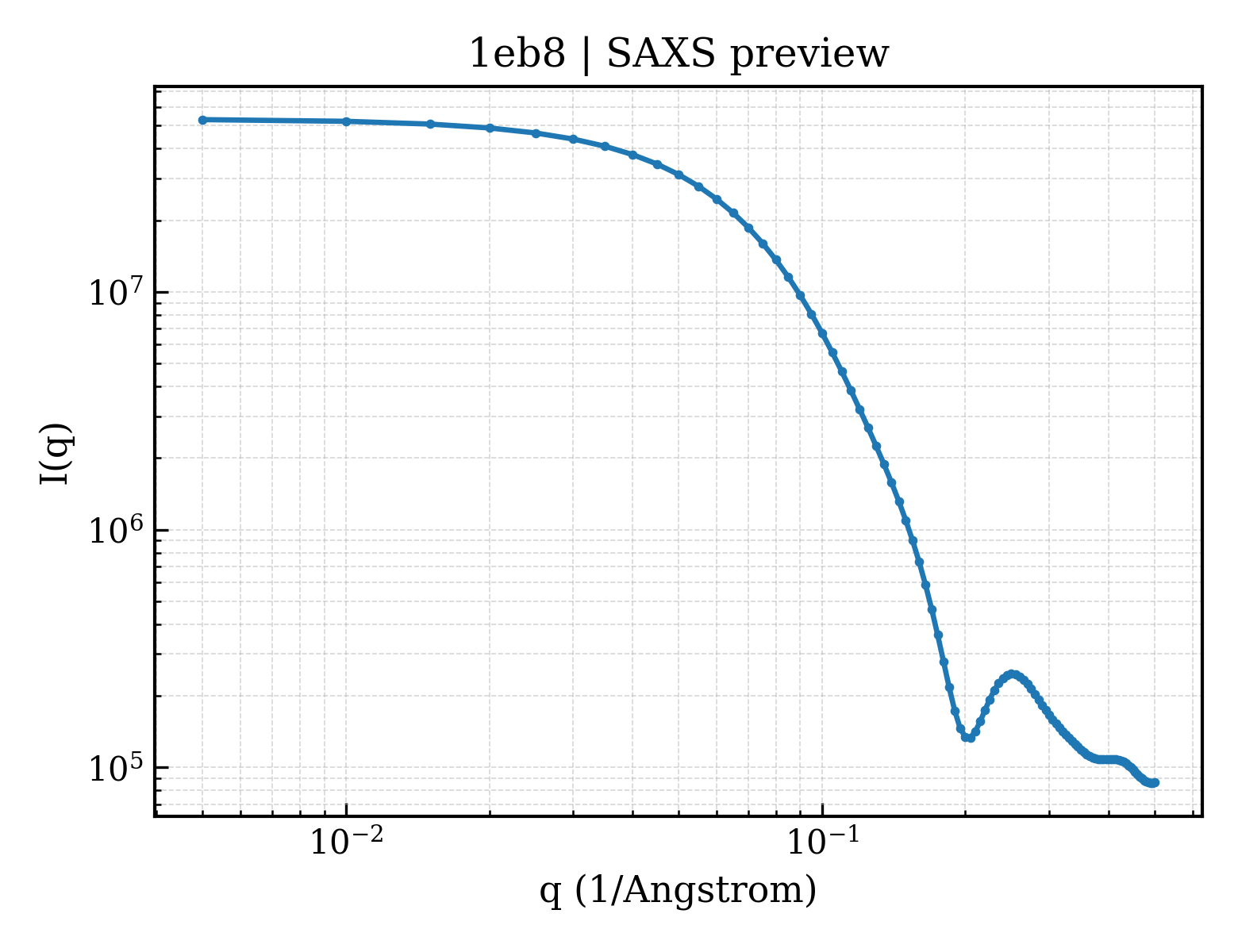

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1eb8
deposition_date	2001-07-24
title	Structure Determinants of Substrate Specificity of Hydroxynitrile Lyase from Manihot esculenta
keywords	HYDROXYNITRILE LYASE, SUBSTRATE SPECIFICITY, ACTIVE-SITE TUNNEL MUTANT, LYASE; LYASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	25.39 Å
rg_electron	24.48 Å
i0	53284700.00
molecular_weight	59166.0 kDa
excluded_volume	75014 Å³
envelope_volume	83856 Å³
shell_volume	28381 Å³
envelope_diameter	84.6 Å
shell_rg	31.99 Å
envelope_rg	24.64 Å
shape_rg	24.49 Å
total_rg	25.27 Å
total_atoms	4176
n_residues	520
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	80.0 Å
rg_real	25.36 Å
rg_real_error	0.47 Å
i0_real	5.3280e+07
i0_real_error	8.2660e+05
rg_reciprocal	25.37 Å
i0_reciprocal	53290000.0000
total_estimate	0.9010
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	27.9 Å
skewness	0.326
kurtosis	-0.462
angular_range	— – 0.3150 Å⁻¹
current_alpha	0.0000
highest_alpha	12810000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.908; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.991

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	(S)-ACETONE-CYANOHYDRIN LYASE
formula_weight	29720.1 kDa
ec_number	4.2.1.37
mutation	YES
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	4426

PISKMVTAHFVLIHTICHGAWIWHKLKPALERAGHKVTALDMAASGIDPRQIEQINSFDEYSEPLLTFLEKLPQGEKVIIVGESCAGLNIAIAADRYVDKIAAGVFHNSLLPDTVHSPSYTVEKLLESFPDARDTEYFTFTNITGETITTMKLGFVLLRENLFTKCTDGEYELAKMVMRKGSLFQNVLAQRPKFTEKGYGSIKKVYIWTDQDKIFLPDFQRWQIANYKPDKVYQVQGGDHKLQLTKTEEVAHILQEVADAYA

Source

organism	MANIHOT ESCULENTA
common_name	CASSAVA
ncbi_taxonomy_id	3983
host_organism	ESCHERICHIA COLI

Entity 2 non-polymer

description	(4S)-2-METHYL-2,4-PENTANEDIOL
formula_weight	118.2 kDa
src_method	syn
entity_count	2

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	250

▶

6. Citations (2)

▶

length_a	106.400 Å
length_b	106.400 Å
length_c	188.430 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	16

space_group	P 41 21 2
int_tables_number	92
crystal_system	—

resolution	2.100 Å
resolution_low	8.000 Å
r_factor	0.1920
r_work	0.1920
r_free	0.2340
