1ebt
HEMOGLOBIN I FROM THE CLAM LUCINA PECTINATA BOUND WITH CYANIDE
SAXS Profile

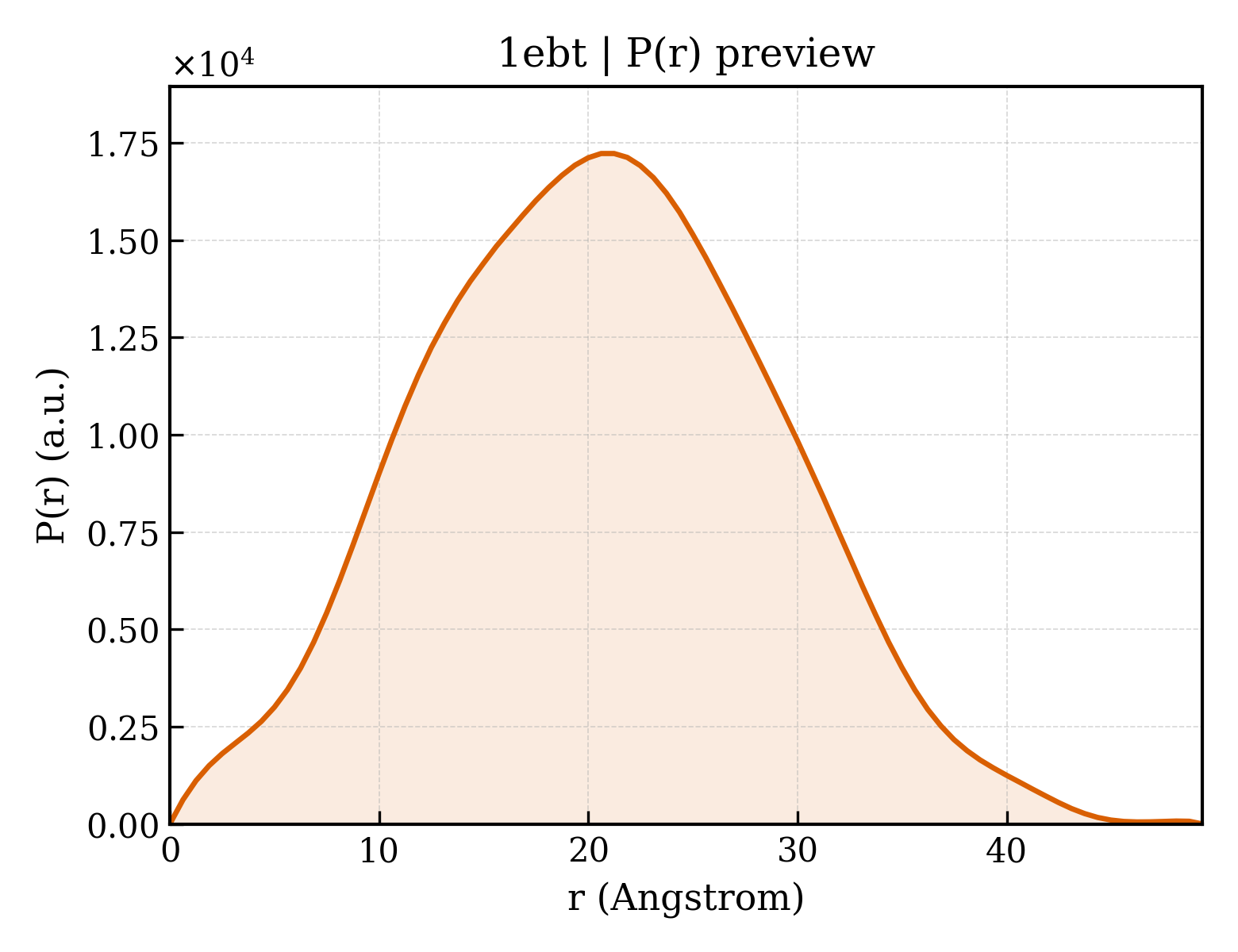

P(r) Distribution
1. Structure Basics
| entry_id | 1ebt |
| deposition_date | 1998-11-04 |
| title | HEMOGLOBIN I FROM THE CLAM LUCINA PECTINATA BOUND WITH CYANIDE |
| keywords | OXYGEN TRANSPORT, HEMOGLOBIN, OXYGEN CARRIER, GLOBIN; OXYGEN TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.79 Å |
| rg_electron | 14.35 Å |
| i0 | 4672850.00 |
| molecular_weight | 15354.0 kDa |
| excluded_volume | 19079 ų |
| envelope_volume | 21290 ų |
| shell_volume | 12695 ų |
| envelope_diameter | 48.6 Å |
| shell_rg | 19.98 Å |
| envelope_rg | 14.53 Å |
| shape_rg | 14.31 Å |
| total_rg | 15.54 Å |
| total_atoms | 1081 |
| n_residues | 142 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.3 Å |
| rg_real | 15.68 Å |
| rg_real_error | 0.29 Å |
| i0_real | 4.6730e+06 |
| i0_real_error | 5.9690e+04 |
| rg_reciprocal | 15.69 Å |
| i0_reciprocal | 4673000.0000 |
| total_estimate | 0.8930 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 48.1 Å |
| skewness | 0.101 |
| kurtosis | -0.361 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 648500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.872; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.998 |
