1eco
STRUCTURE OF ERYTHROCRUORIN IN DIFFERENT LIGAND STATES REFINED AT 1.4 ANGSTROMS RESOLUTION
SAXS Profile

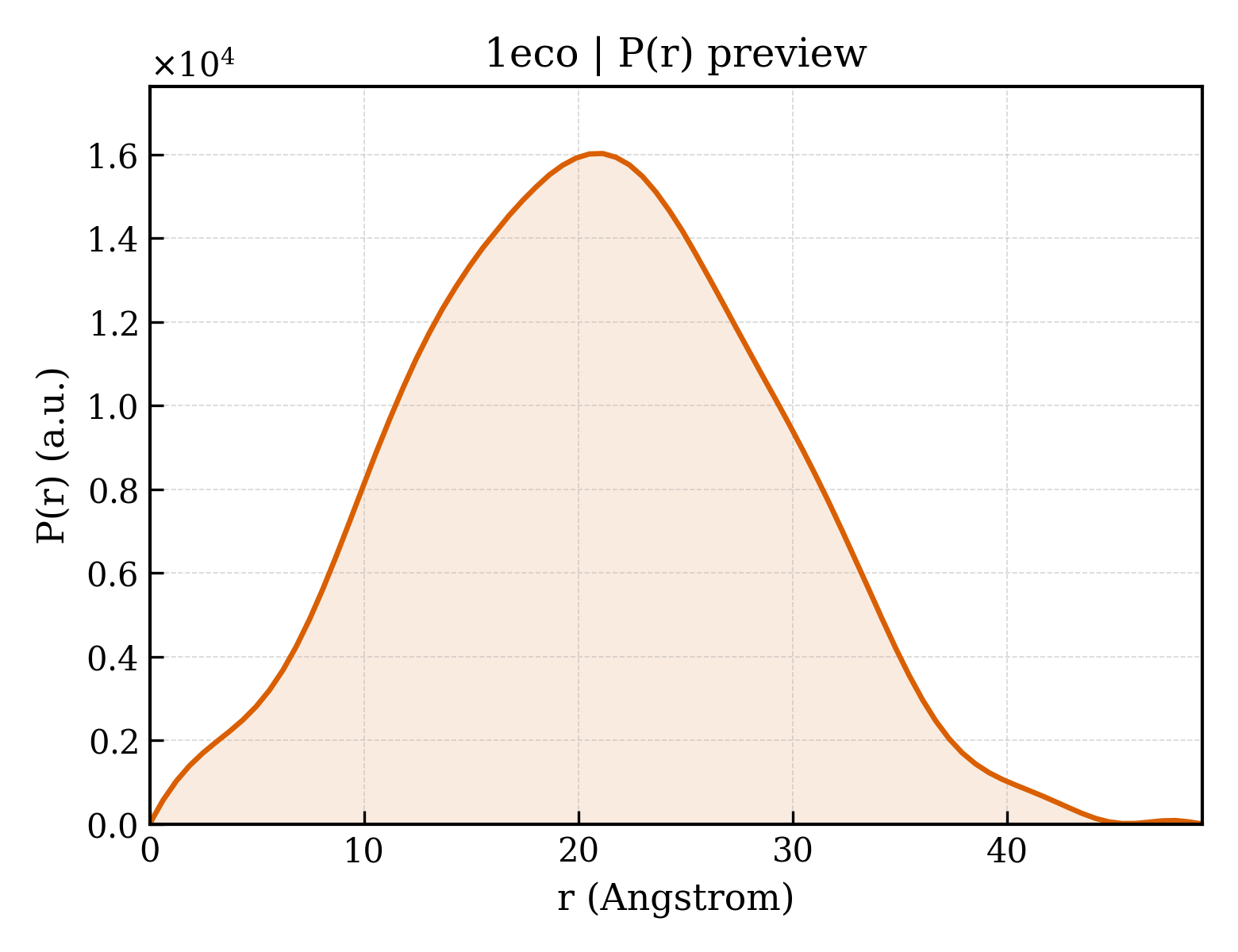

P(r) Distribution
1. Structure Basics
| entry_id | 1eco |
| deposition_date | 1979-03-07 |
| title | STRUCTURE OF ERYTHROCRUORIN IN DIFFERENT LIGAND STATES REFINED AT 1.4 ANGSTROMS RESOLUTION |
| keywords | OXYGEN TRANSPORT; OXYGEN TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.83 Å |
| rg_electron | 14.29 Å |
| i0 | 4345500.00 |
| molecular_weight | 15412.0 kDa |
| excluded_volume | 19455 ų |
| envelope_volume | 21121 ų |
| shell_volume | 12668 ų |
| envelope_diameter | 48.0 Å |
| shell_rg | 19.93 Å |
| envelope_rg | 14.42 Å |
| shape_rg | 14.25 Å |
| total_rg | 15.54 Å |
| total_atoms | 1089 |
| n_residues | 136 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.1 Å |
| rg_real | 15.71 Å |
| rg_real_error | 0.25 Å |
| i0_real | 4.3460e+06 |
| i0_real_error | 5.3870e+04 |
| rg_reciprocal | 15.73 Å |
| i0_reciprocal | 4346000.0000 |
| total_estimate | 0.8900 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.1 Å |
| skewness | 0.069 |
| kurtosis | -0.402 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 577300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.883; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.929 |
