SAXSdb — 1ecx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AMINOTRANSFERASE

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	PYRIDOXAL-5'-PHOSPHATE × 2 CYSTEINE × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	PYRIDOXAL-5'-PHOSPHATE × 2 CYSTEINE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9X218_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–384； UniProt 1–384 Author chain B； PDBConstruct 1–384； UniProt 1–384

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ecx
Deposition date deposition_date	2000-01-26
Structure title title	NIFS-LIKE PROTEIN
Keywords keywords	plp-dependent enzymes, iron-sulfur-cluster synthesis, c-s beta lyase, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ecx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ecx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

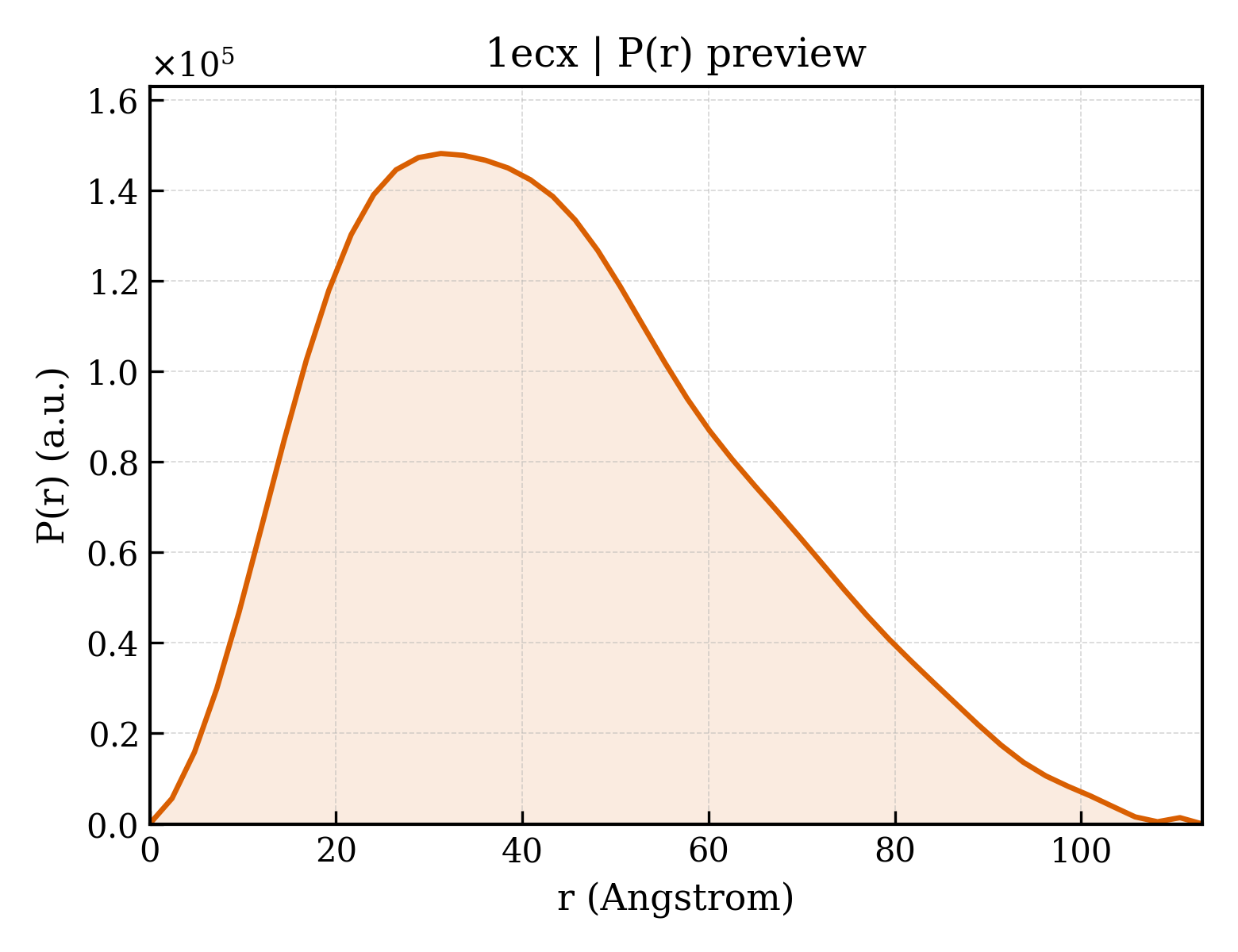

1ecx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.56 Å
Rg (electron density)	33.26 Å
Total Rg	33.62 Å
Atom count	5759
Residues	729
Excluded volume	103660 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ecx__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ecx__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	AMINOTRANSFERASE
Molecular weight formula_weight	42931.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5938

MRVYFDNNATTRVDDRVLEEMIVFYREKYGNPNSAHGMGIEANLHMEKAREKVAKVLGVSPSEIFFTSCATESINWILKTVAETFEKRKRTIITTPIEHKAVLETMKYLSMKGFKVKYVPVDSRGVVKLEELEKLVDEDTFLVSIMAANNEVGTIQPVEDVTRIVKKKNKETLVHVDAVQTIGKIPFSLEKLEVDYASFSAHKFHGPKGVGITYIRKGVPIRPLIHGGGQERGLRSGTQNVPGIVGAARAMEIAVEELSEAAKHMEKLRSKLVSGLMNLGAHIITPLEISLPNTLSVSFPNIRGSTLQNLLSGYGIYVSTSSACTSKDERLRHVLDAMGVDRRIAQGAIRISLCKYNTEEEVDYFLKKIEEILSFLDLTGNNRR

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PYRIDOXAL-5'-PHOSPHATE
Molecular weight formula_weight	247.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CYSTEINE
Molecular weight formula_weight	121.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	179

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ecxa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.3 — Cystathionine synthase-like

Domain ID domain_id	d1ecxb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.3 — Cystathionine synthase-like

CATH v4.4 (4 domains)

Domain ID domain_id	1ecxA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1ecxA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1ecxB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1ecxB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

▶

Unit-cell length a length_a	115.410 Å
Unit-cell length b length_b	115.410 Å
Unit-cell length c length_c	156.950 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	34.040 Å
R factor r_factor	0.2070
R_work r_work	0.2070
R_free r_free	0.2560
