1ed1
CRYSTAL STRUCTURE OF SIMIAN IMMUNODEFICIENCY VIRUS MATRIX ANTIGEN (SIV MA) AT 100K.
SAXS Profile

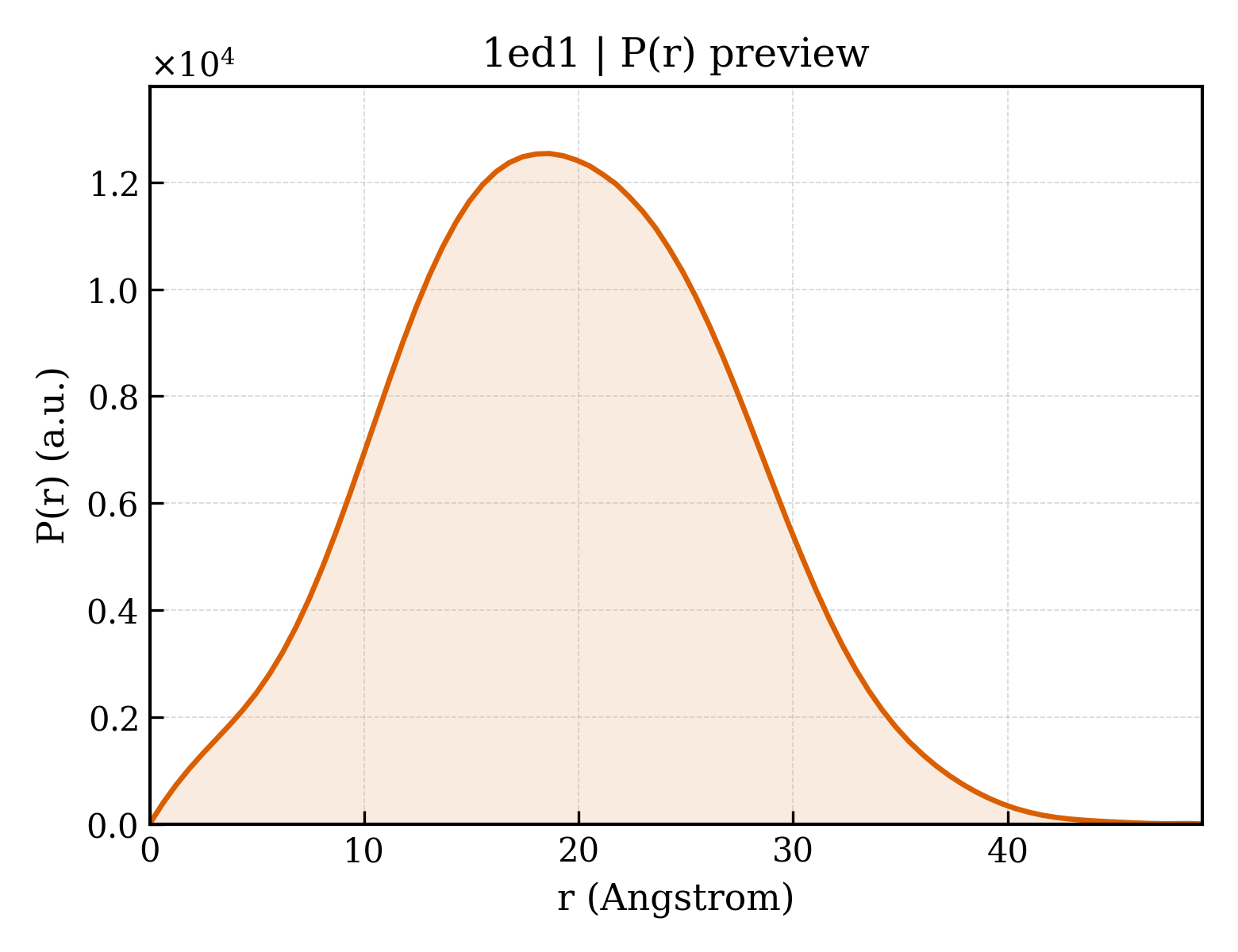

P(r) Distribution
1. Structure Basics
| entry_id | 1ed1 |
| deposition_date | 2000-01-26 |
| title | CRYSTAL STRUCTURE OF SIMIAN IMMUNODEFICIENCY VIRUS MATRIX ANTIGEN (SIV MA) AT 100K. |
| keywords | Trimeric Association, Viral protein; VIRAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.83 Å |
| rg_electron | 13.39 Å |
| i0 | 3234190.00 |
| molecular_weight | 12856.0 kDa |
| excluded_volume | 16327 ų |
| envelope_volume | 18636 ų |
| shell_volume | 11777 ų |
| envelope_diameter | 45.4 Å |
| shell_rg | 19.21 Å |
| envelope_rg | 13.77 Å |
| shape_rg | 13.36 Å |
| total_rg | 14.80 Å |
| total_atoms | 901 |
| n_residues | 114 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.1 Å |
| rg_real | 14.72 Å |
| rg_real_error | 0.24 Å |
| i0_real | 3.2340e+06 |
| i0_real_error | 3.2340e+04 |
| rg_reciprocal | 14.73 Å |
| i0_reciprocal | 3234000.0000 |
| total_estimate | 0.8701 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.6 Å |
| skewness | 0.109 |
| kurtosis | -0.335 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 738400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.770; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.999 |
