1ed6

BOVINE ENDOTHELIAL NITRIC OXIDE SYNTHASE HEME DOMAIN COMPLEXED WITH L-NIO (H4B FREE)

Method: X-RAY DIFFRACTION D_max: 93.8 Å Quality: EXCELLENT

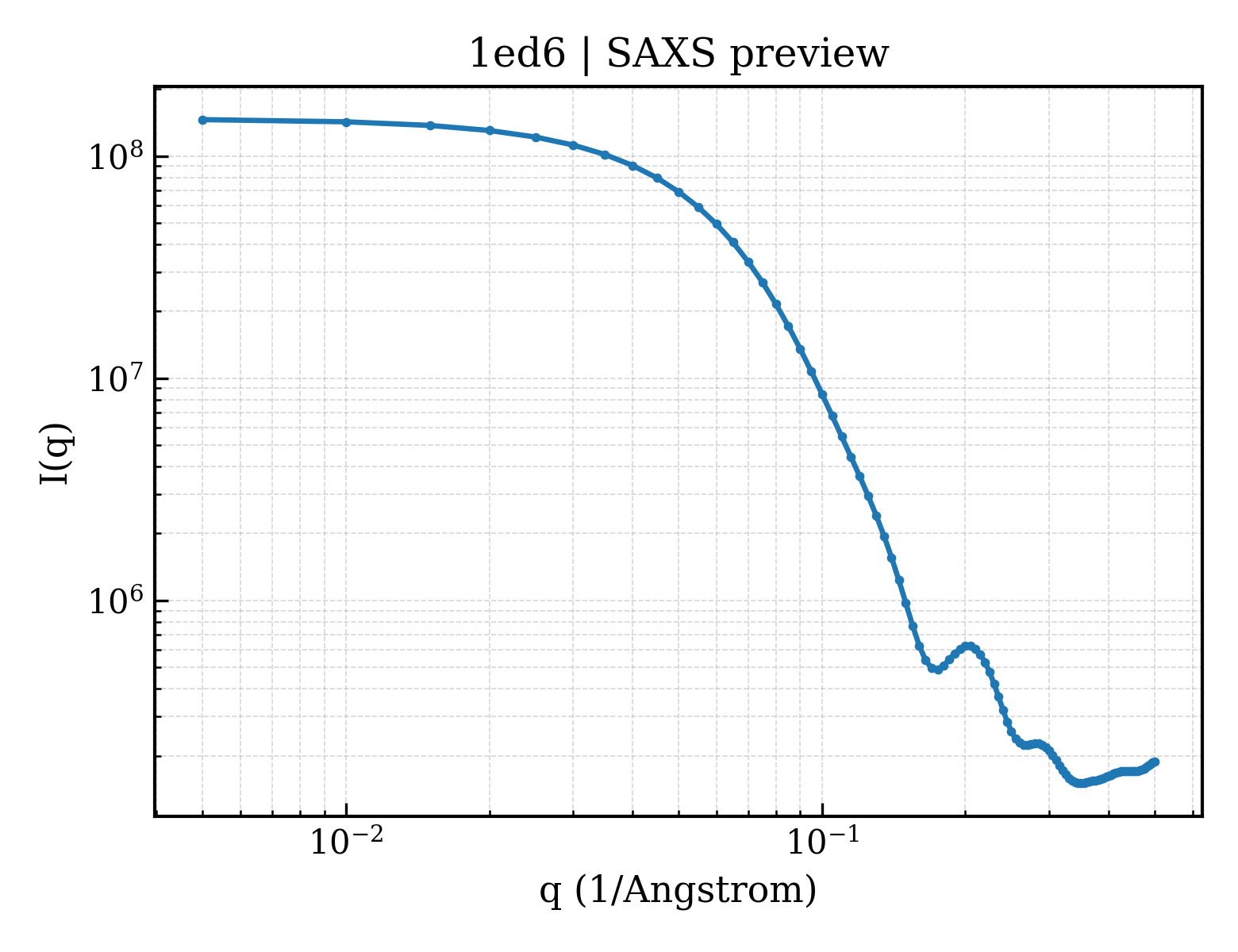

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1ed6
deposition_date	2000-01-26
title	BOVINE ENDOTHELIAL NITRIC OXIDE SYNTHASE HEME DOMAIN COMPLEXED WITH L-NIO (H4B FREE)
keywords	NITRIC OXIDE SYNTHASE, HEME PROTEIN, alpha-beta fold, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	30.02 Å
rg_electron	29.11 Å
i0	146751000.00
molecular_weight	95602.0 kDa
excluded_volume	119290 Å³
envelope_volume	144450 Å³
shell_volume	40792 Å³
envelope_diameter	94.4 Å
shell_rg	37.14 Å
envelope_rg	29.13 Å
shape_rg	29.13 Å
total_rg	29.76 Å
total_atoms	6730
n_residues	830
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	93.8 Å
rg_real	29.95 Å
rg_real_error	0.58 Å
i0_real	1.4680e+08
i0_real_error	2.1750e+06
rg_reciprocal	29.99 Å
i0_reciprocal	146800000.0000
total_estimate	0.9027
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	35.4 Å
skewness	0.272
kurtosis	-0.517
angular_range	— – 0.2650 Å⁻¹
current_alpha	0.0000
highest_alpha	40880000.0000
n_real_points	54
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.927; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.949

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (8)

Entity 1 polymer

description	NITRIC OXIDE SYNTHASE
formula_weight	49710.1 kDa
ec_number	1.14.13.39
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	7105

SRAPAPATPHAPDHSPAPNSPTLTRPPEGPKFPRVKNWELGSITYDTLCAQSQQDGPCTPRRCLGSLVLPRKLQTRPSPGPPPAEQLLSQARDFINQYYSSIKRSGSQAHEERLQEVEAEVASTGTYHLRESELVFGAKQAWRNAPRCVGRIQWGKLQVFDARDCSSAQEMFTYICNHIKYATNRGNLRSAITVFPQRAPGRGDFRIWNSQLVRYAGYRQQDGSVRGDPANVEITELCIQHGWTPGNGRFDVLPLLLQAPDEAPELFVLPPELVLEVPLEHPTLEWFAALGLRWYALPAVSNMLLEIGGLEFSAAPFSGWYMSTEIGTRNLCDPHRYNILEDVAVCMDLDTRTTSSLWKDKAAVEINLAVLHSFQLAKVTIVDHHAATVSFMKHLDNEQKARGGCPADWAWIVPPISGSLTPVFHQEMVNYILSPAFRYQPDPW

Source

organism	Bos taurus
common_name	cattle
ncbi_taxonomy_id	9913
host_organism	Escherichia coli

Entity 2 non-polymer

description	ACETATE ION
formula_weight	59.0 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	PROTOPORPHYRIN IX CONTAINING FE
formula_weight	616.5 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	N5-IMINOETHYL-L-ORNITHINE
formula_weight	173.2 kDa
src_method	syn
entity_count	2

Entity 6 non-polymer

description	CACODYLIC ACID
formula_weight	138.0 kDa
src_method	syn
entity_count	2

Entity 7 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	2

Entity 8 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	375

▶

6. Citations (3)

▶

length_a	59.120 Å
length_b	106.160 Å
length_c	156.700 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	2.050 Å
resolution_low	32.660 Å
r_factor	0.2410
r_work	0.2410
r_free	0.2750

fit	/app/data/saxs_computation/ed/1ed6/1ed6.fit
pddf	/app/data/pr_computation/ed/1ed6/1ed6.pr.out
profile	/app/data/saxs_computation/ed/1ed6/1ed6.dat
