1ed7
SOLUTION STRUCTURE OF THE CHITIN-BINDING DOMAIN OF BACILLUS CIRCULANS WL-12 CHITINASE A1

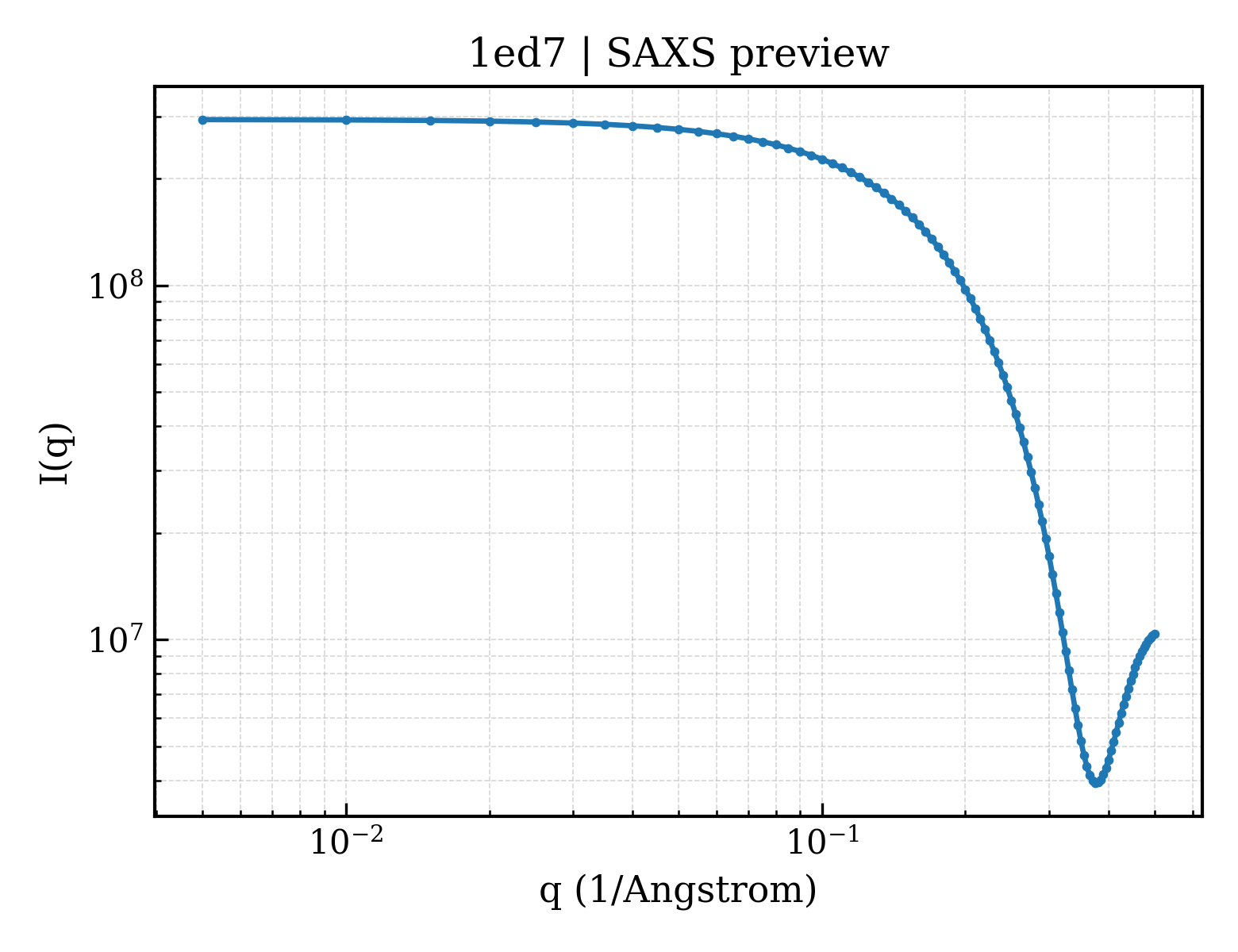

SAXS Profile

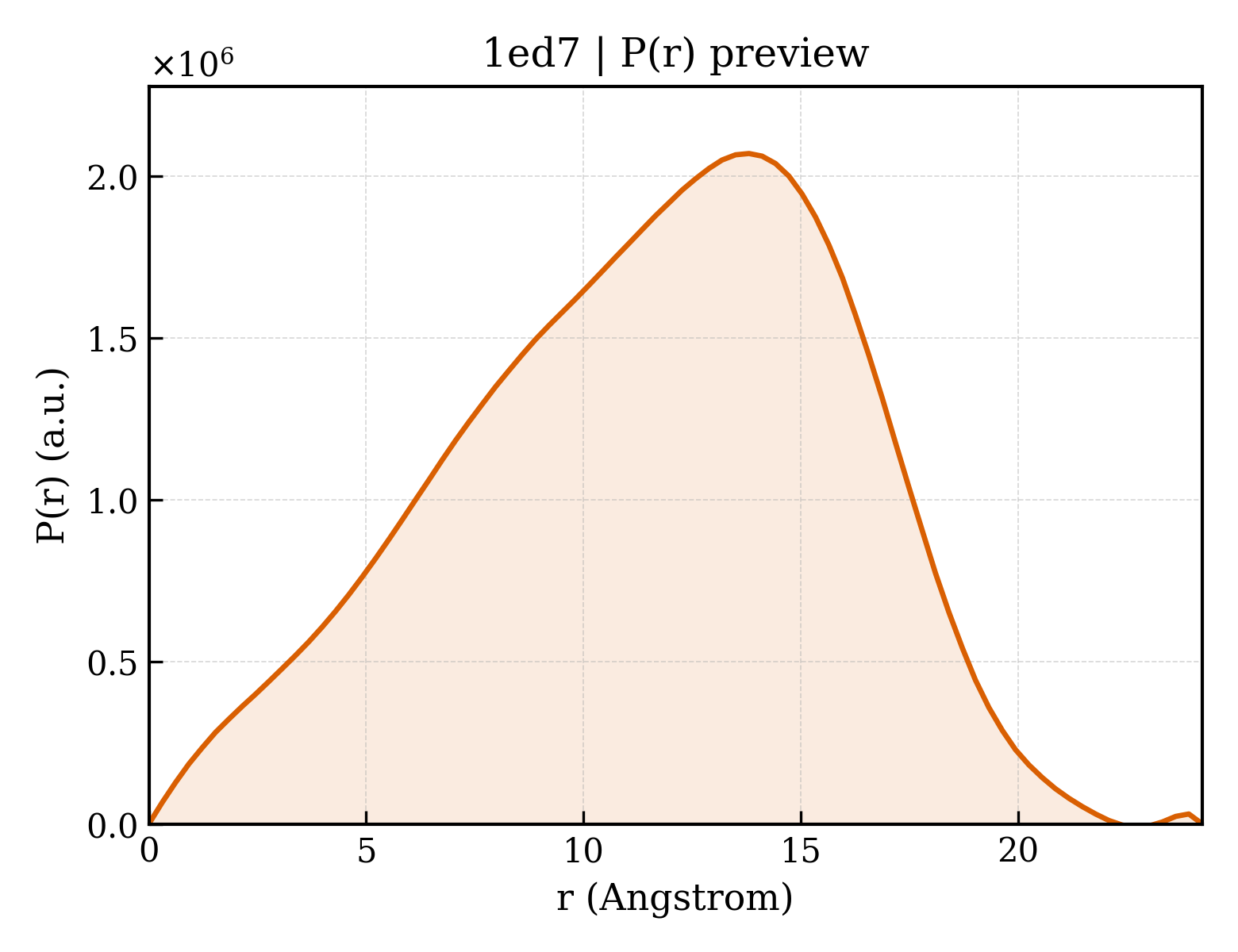

P(r) Distribution
1. Structure Basics
| entry_id | 1ed7 |
| deposition_date | 2000-01-27 |
| title | SOLUTION STRUCTURE OF THE CHITIN-BINDING DOMAIN OF BACILLUS CIRCULANS WL-12 CHITINASE A1 |
| keywords | twisted beta-sandwich, HYDROLASE; HYDROLASE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 8.81 Å |
| rg_electron | 9.01 Å |
| i0 | 293765000.00 |
| molecular_weight | 150110.0 kDa |
| excluded_volume | 189090 ų |
| envelope_volume | 8341 ų |
| shell_volume | 7399 ų |
| envelope_diameter | 31.1 Å |
| shell_rg | 15.18 Å |
| envelope_rg | 10.09 Å |
| shape_rg | 8.95 Å |
| total_rg | 9.31 Å |
| total_atoms | 20850 |
| n_residues | 1350 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 24.2 Å |
| rg_real | 8.71 Å |
| rg_real_error | 0.20 Å |
| i0_real | 2.9380e+08 |
| i0_real_error | 3.0460e+06 |
| rg_reciprocal | 8.71 Å |
| i0_reciprocal | 293800000.0000 |
| total_estimate | 0.6653 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 13.8 Å |
| skewness | -0.281 |
| kurtosis | -0.541 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 40580.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.882; Stabil: 0.977; Sysdev: 0.368; Positv: 1.000; Valcen: 0.966; Smooth: 0.000 |
